- High precision temperature controller
- 0.001C resolution
- 4 calibration tables
- 8 sets of PID parameters
- SCPI via Virtual Com Port (VCP)
- Sample program code available in different program language
FEATURES
- 4 sets calibration table, with up to 20 reference points in each table
- Programmable precision temperature control with PID algorithm for achieving precise target temperatures with minimal overshooting
- 24 bit analog to digital converter
- Dual PID outputs for both heating and cooling
- Programmable user-defined temperature profiles with ramp up, hold, and ramp down program steps
- Store up to five temperature profiles for routine work
- CE certified with built-in over-temperature protection
- User-friendly INSTEC app software with graphical display to control the controller, and to record and export temperature-time data
- Sample source code available to customer in LabVIEW, C#, Python, and others
SPECIFICATIONS
|
Temperature sensors & resolution |
± 0.001°C with thermistor ±0.01°C with 100 Ω Platinum RTD ± 0.1°C with thermocouple |
|
Temperature stability |
±0.01°C (depending on heating stage) |
|
Minimum heating and cooling rate |
±0.1°C per hour |
|
Maximum heating rate |
Up to +200°C per minute at 100°C |
|
Host Interface Options |
USB2.0 (standard) VCP (RS232) Ethernet (IP) IEEE488 (GPIB) |
|
LVDC Option |
Optional LVDC for low EMI applications |

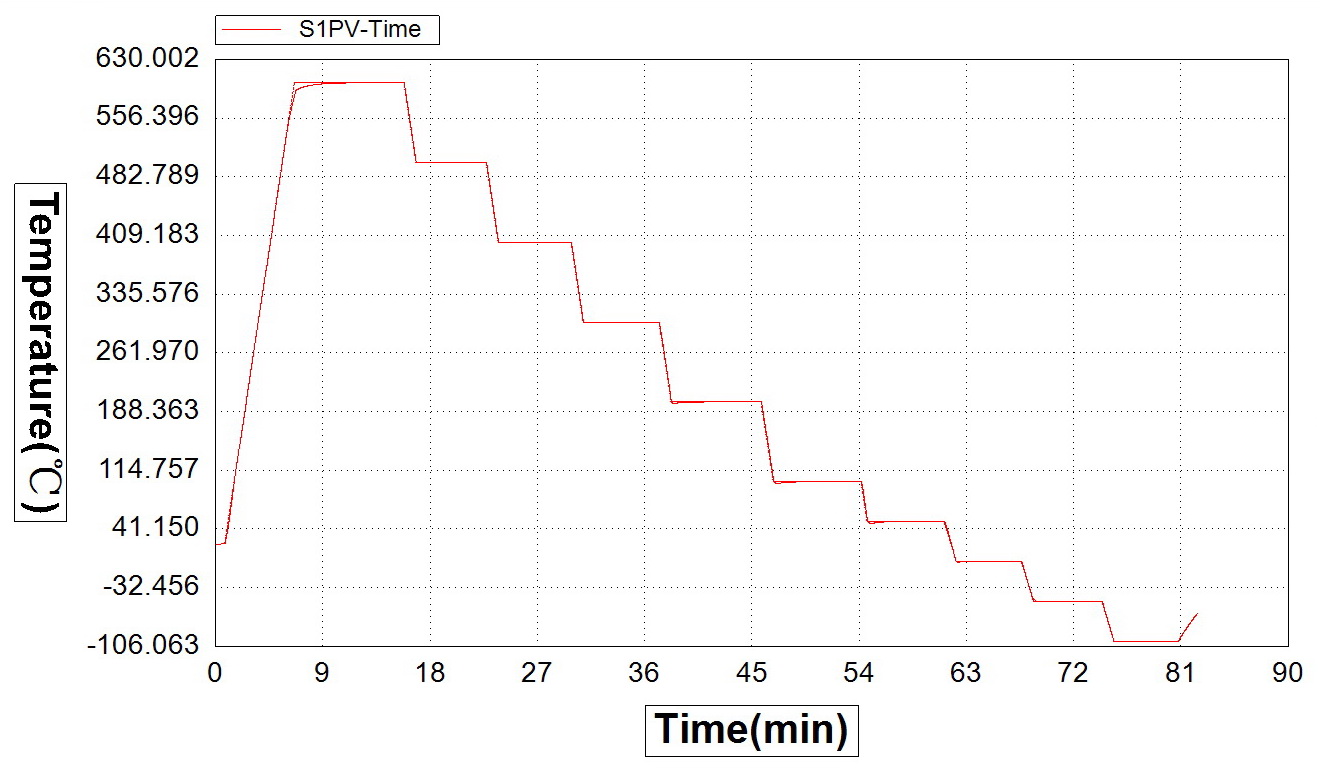

TYPICAL TEMPERATURE PROFILE
