플라즈마 표면처리기 (Plasma Surface Treatment System)
2

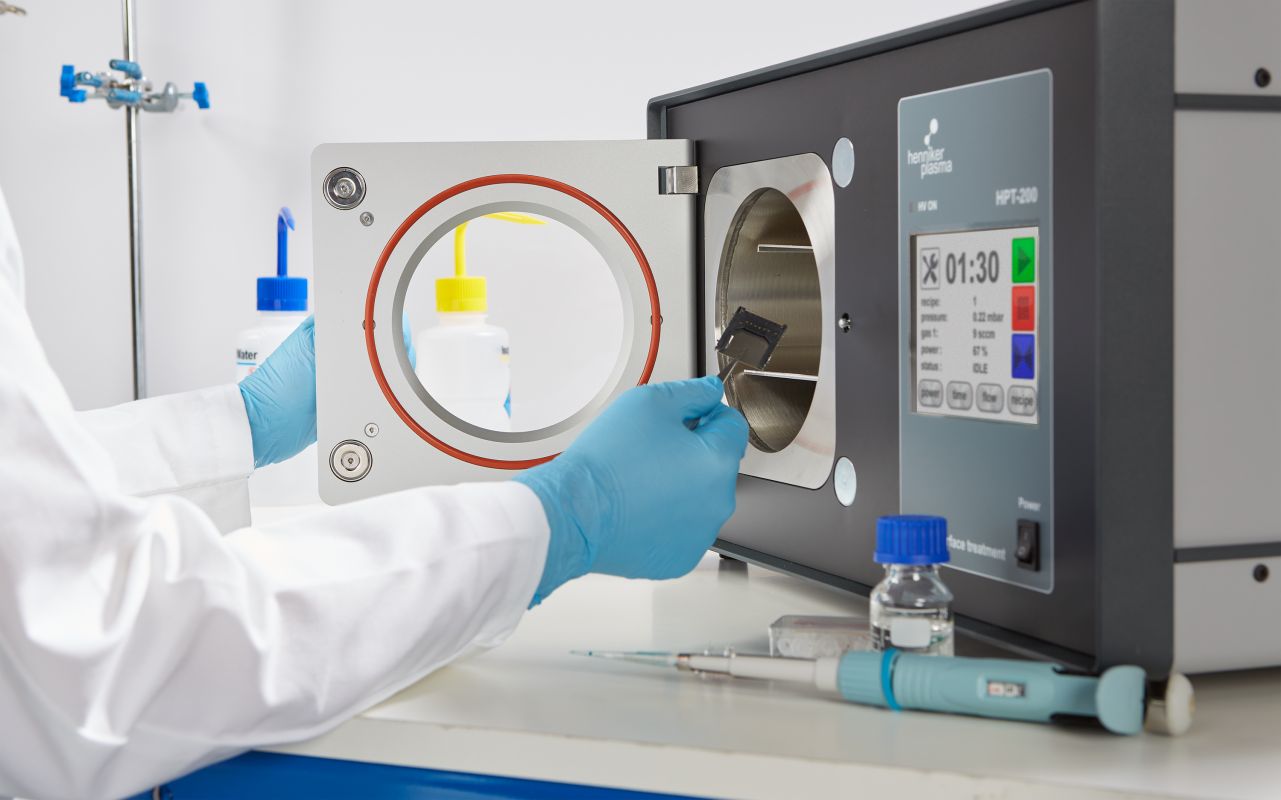

Plasma Cleaner
공기 또는 산소만을 공정 가스로 사용하는 초미세 표면 처리기. 화학적 폐기물이 없으며 수성 및 용제 기반 클리닝 기술을 모두 제공합니다.

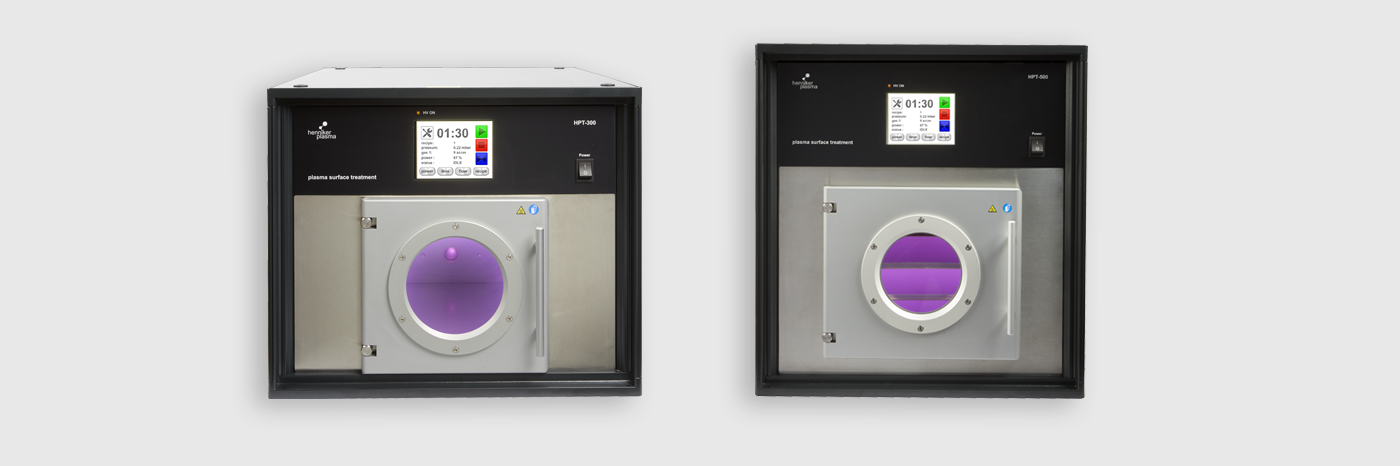

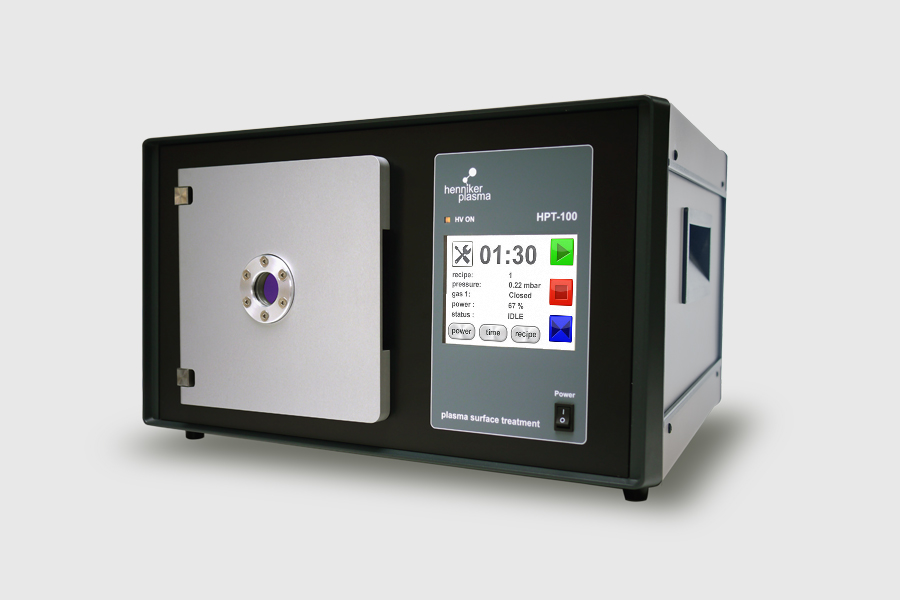

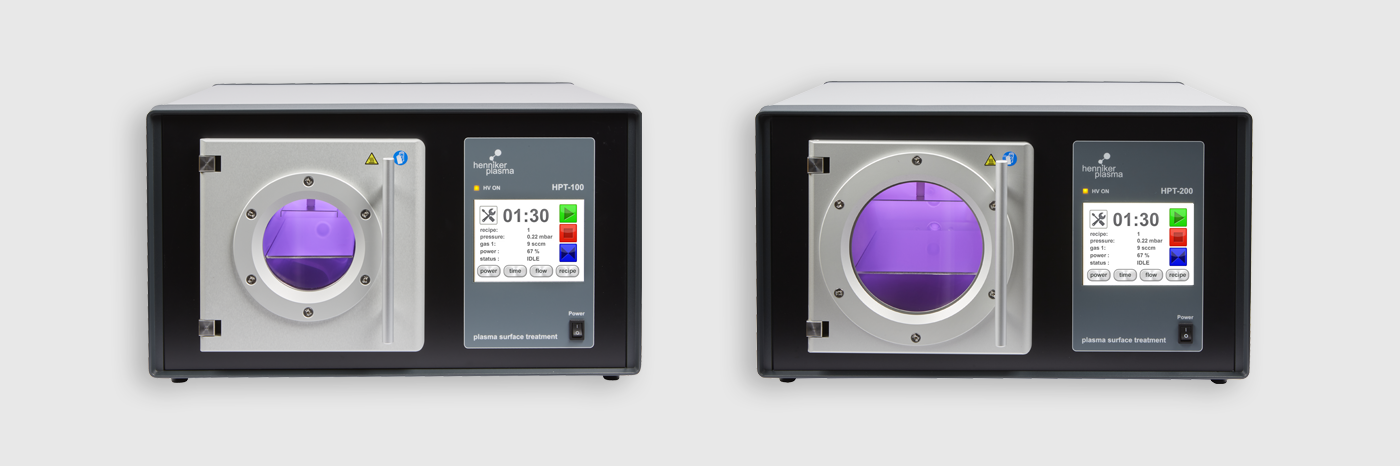

† HPT-100 & HPT-200
† HPT-300 & HPT-500
3
Plasma Surface Activation System
고분자 접착 전 광범위하고 효과적인 전처리 장비. 유리와 세라믹의 플라즈마 활성화.
† HPT-300 & HPT-500
5
![](http://yeonjin.com/storage/app/public/thumbnails/2c/9a/spill_800x800_7b7c8ebfb02df32ce1ed1dbcd9c81a4b4accb69d.png)

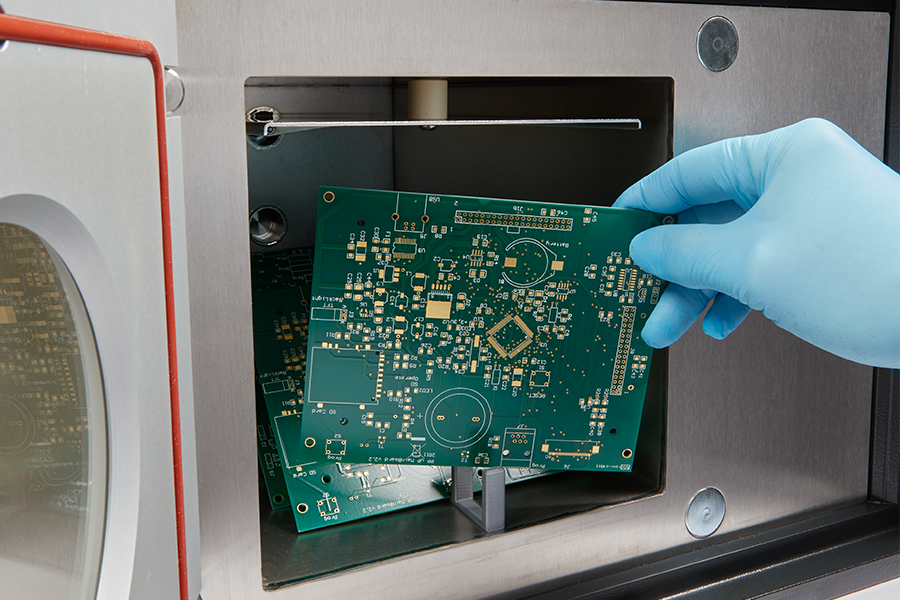

Plasma Etch System
포토레지스트 제거 및 PTFE와 같은 불소중합체의 습윤성 개선. 화학적 에칭 및 물리적 에칭 분야 모두에 사용됩니다.
† Nebula
† HPT-300 & HPT-500
6
![](http://yeonjin.com/storage/app/public/thumbnails/8a/20/spill_800x800_31bf95335dce83c9a5ffae4f0e6422720ab23080.png)

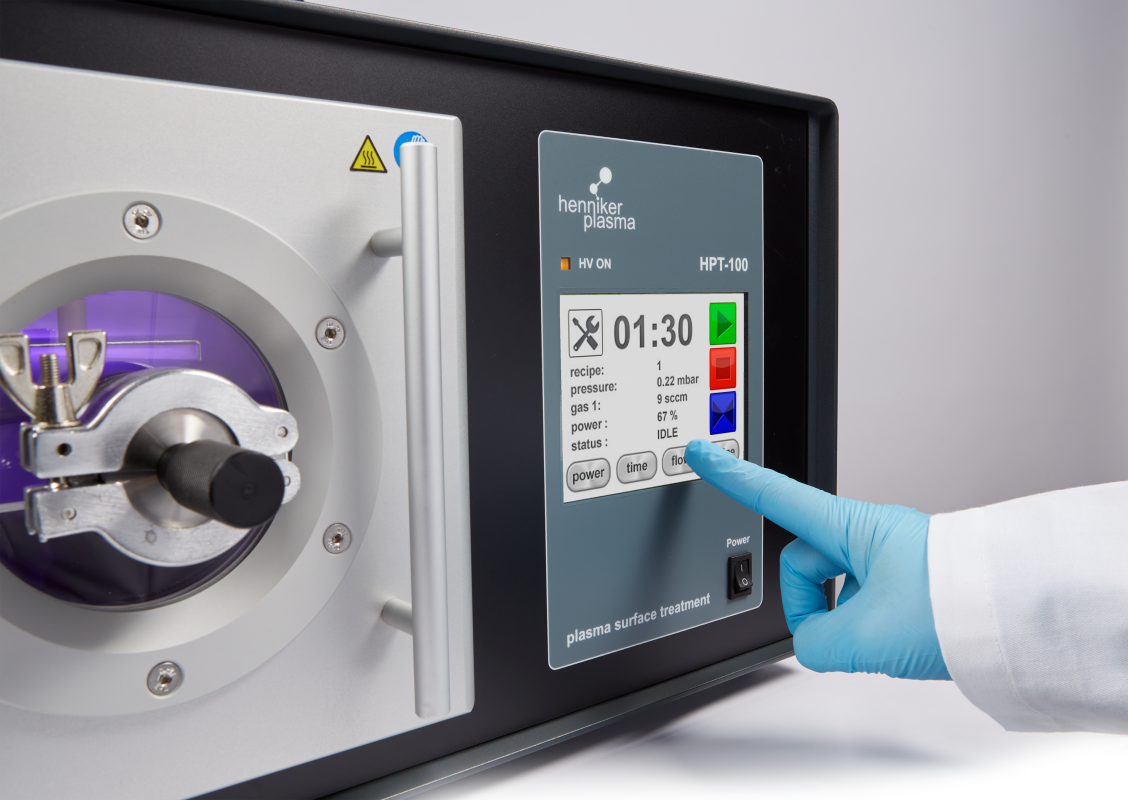

TEM Sample Plasma Cleaner
TEM 샘플 홀더용의 저렴한 플라즈마 클리너 / 플라즈마 애셔. 저압 플라즈마 클리닝. 전자 현미경 샘플 전처리를 위한 응용 분야별 솔루션 제공
† TEM Plasma Cleaner
7
![](http://yeonjin.com/storage/app/public/thumbnails/63/86/spill_800x800_12c828582345c40317c3c13dff90336392989f29.jpg)

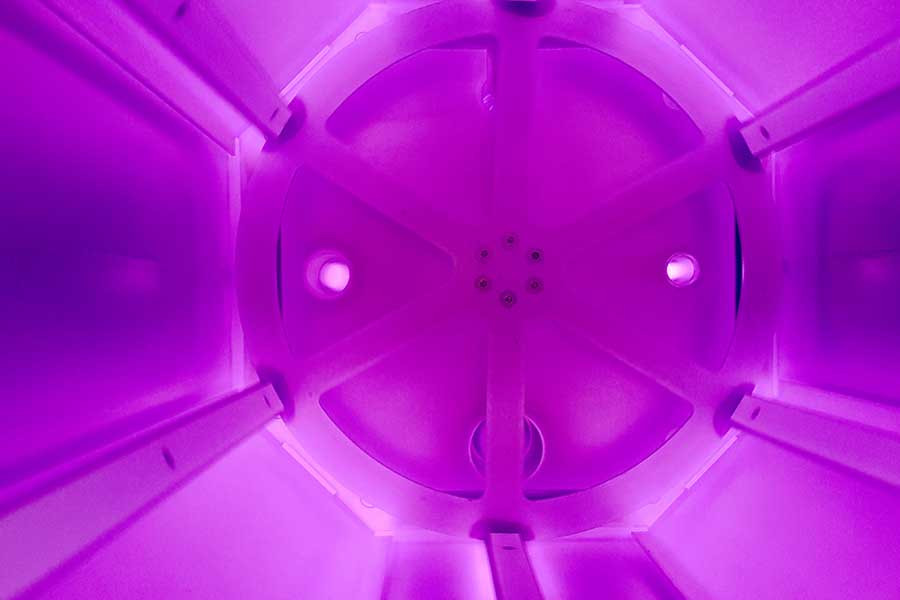

Advanced Plasma Surface Treatment System
- 50L – 150L chamber volumes
- Horizontal, vertical and rotary
drum parts tray options - Plasma polymerisation inlet
- PLC control
- Fully automated, recipe driven processes
† Nebula
8
![](http://yeonjin.com/storage/app/public/thumbnails/79/35/spill_800x800_b54a2c89348653ad72418651a77bc64427f5e09b.png)

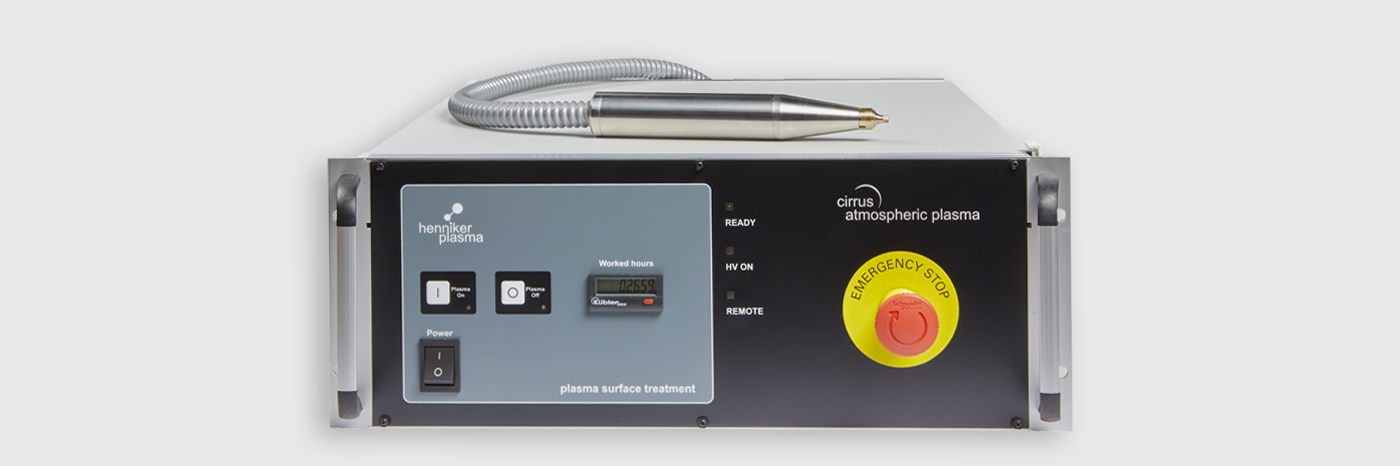

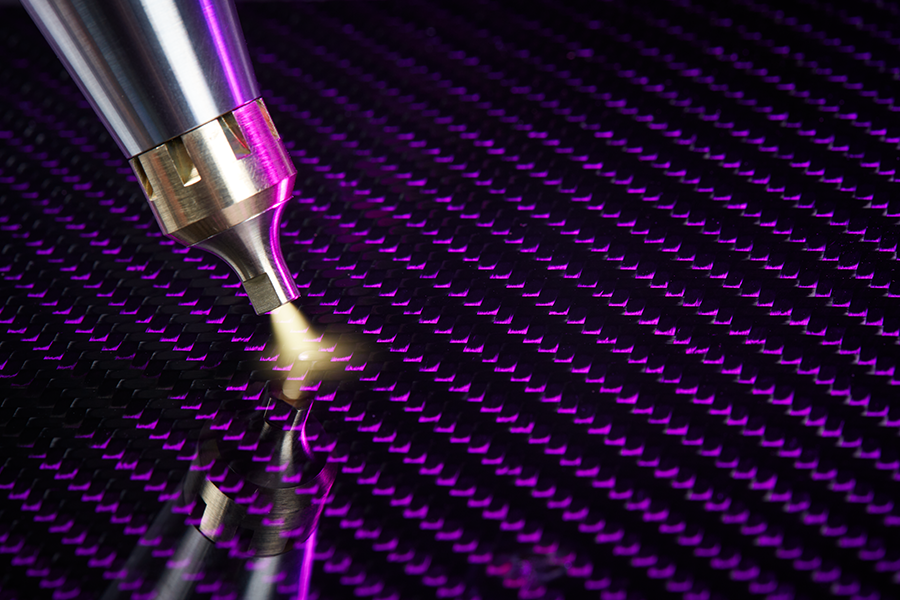

Atmospheric Plasma Torch
In-line Plasma Activation of:
-
Polymers
-
Metal
-
Ceramics
-
Glass
-
Hybrid materials
† Cirrus
9
![](http://yeonjin.com/storage/app/public/thumbnails/62/77/spill_800x800_064657da666cc04b973138b306f8d8eca8f38aba.png)

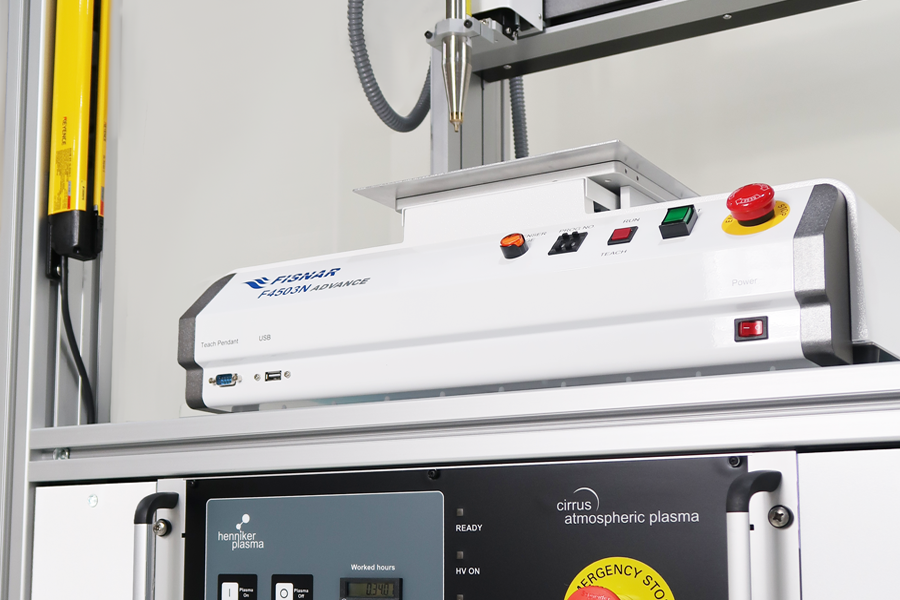

Atmospheric Plasma Robot
A 3-axis desktop or cart mounted unit for automation of the plasma surface treatment process.
Automated plasma treatment
- 200mm to 500mm XY travel options
- 255 stored programs
- Up to 30,000 data points
- 16 I/O channels
- Safety light curtain protection
- Bench or cart-mounted
† Cirrus
† Nimbus
10
![](http://yeonjin.com/storage/app/public/thumbnails/e6/32/spill_800x800_e394b35e11d4ab3bf21e1628cf3d2b0abe85fa50.png)

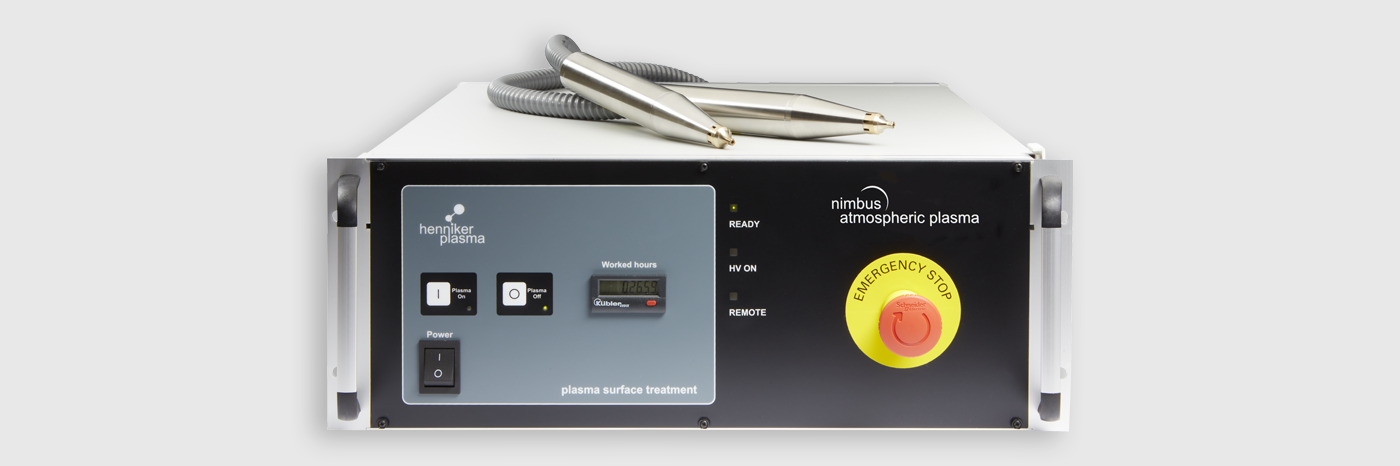

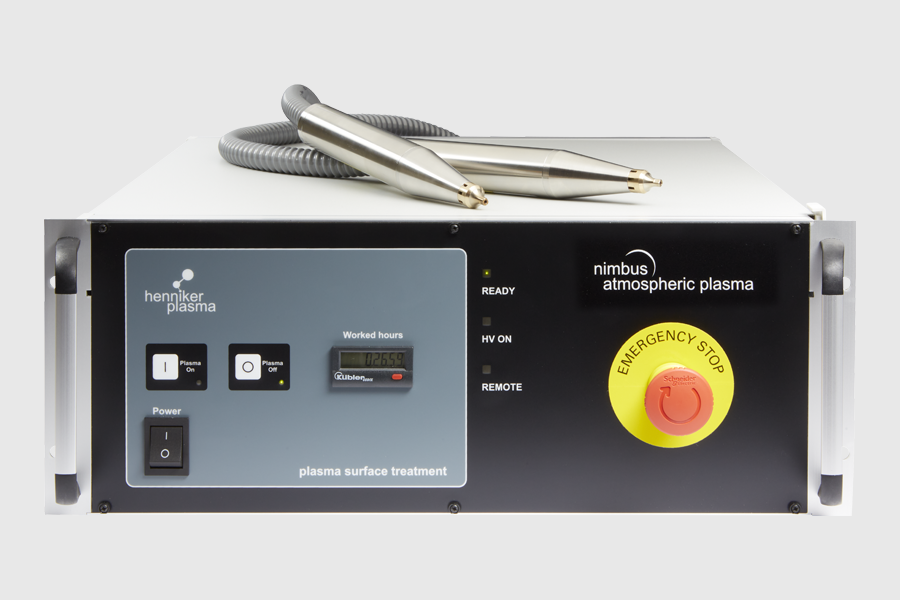

Dual Atmospheric Plasma Torch
The two plasma treatment nozzles operate simultaneously, effectively doubling the treatment width of the single atmospheric plasma equivalent, but can also be applied in different areas.
Nimbus
†![](https://www.yeonjin.com/storage/app/public/media/public/media_library/64/91/20230930095211eef53a488bd4a568222a99b5aab19bd5c6afbcc8.png)
11
![](http://yeonjin.com/storage/app/public/thumbnails/9c/6b/spill_800x800_24679797c72fc57f920d4d69f36bce8fb0acf879.png)

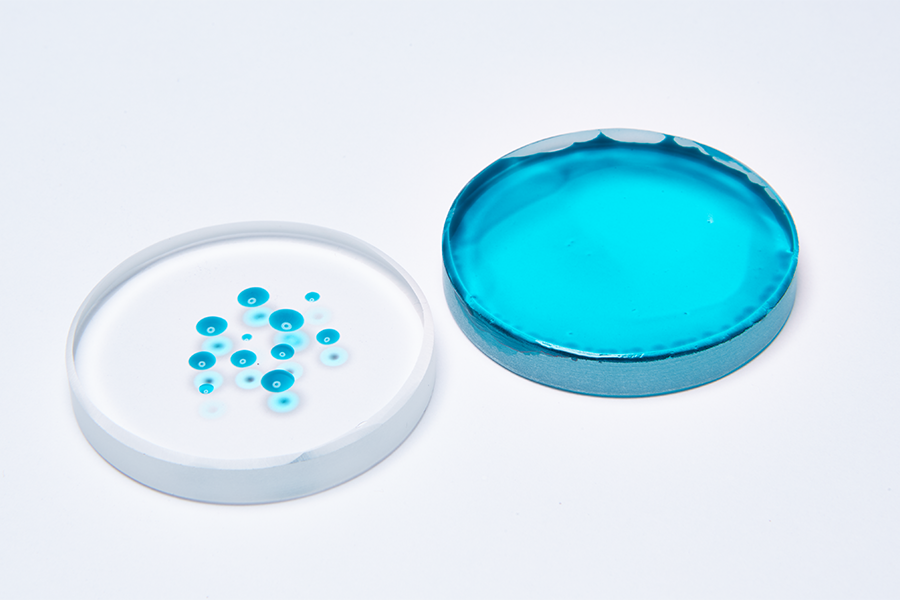

Serface Test Equipment
Surface cleanliness, Adhesion strength, Wettability, or other Surface properties
- Quick Test Dyne Pens - Rapid Surface Testing.
- Dyne Pens Sets - Accurate Surface Testing.
- Dyne Ink Sets - Surface Energy Test Inks.

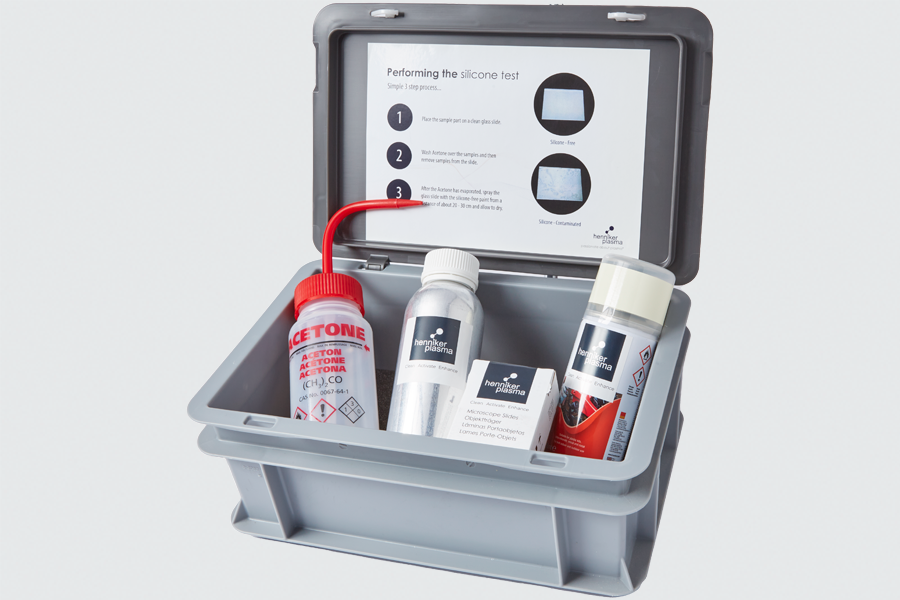

- Surface Silicone Contamination Test Kit
12
![](http://yeonjin.com/storage/app/public/thumbnails/3f/70/spill_800x800_d3fde0230363f6bd55fe4491e27821bac601bfc6.jpg)
Our Service
- Proof of concept trials
- Rental options
- Plasma process development
- Access to our extensive process library
- Comprehensive surface testing methods
- Adhesion and coatings processes
- Contract plasma treatment
