UV Light Curing Systems from Uvitron, USA

Home > Solutions > 공정 장비 Process System > UV 광경화 시스템 개요

UV Spot Systems

Uvitron spot system은 국소 영역에 대한 집중적인 고강도 UV 경화에 최적화되어 있습니다.

Model

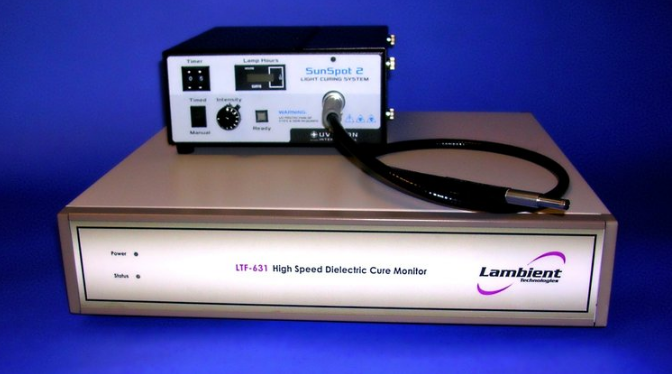

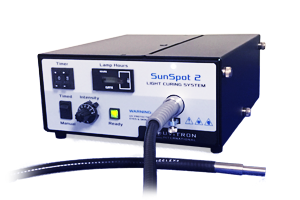

SunSpot 2
SkyBeam (LED)

System Type
High-Power Compact Spot Curing System (Focused spot w/ light guide)
LED Spot Curing System
Curing Area:
1.5"/3.0" spot size at 1.5"/3.0" distance
From 3mm to 15mm (lens dependent)
Intensity
18,000 mW/cm2 intensity, focused curing area
From 900 to 14,000 mW/cm2 - UVA (lens dependent)
External Control Interface
Connector for external monitor/control via PC or PLC
Serial communication with PCs and PLCs.
Wave Lengths
 250nm ~ 700nm
4 Independent Irradiation Channels (365 nm, 385 nm, 395  nm, 405 nm)
Lamp Power
200W (2000+ hours of lamp life)


Includes liquid light guide & foot pedal
Includes UV/IR protective glasses and foot pedal
Light Guides
Liquid Light Guides (Single Pole),
Fiber Light Guides (Single Pole),
Multi-pole Light Guides
Long-Life Flexible Light Guides
Bundle system




UV Flood Systems

Uvitron flood system은 다양한 mounting & shielding 옵션을 사용하여 넓은 영역의 균일한 UV 경화에 최적화되어 있습니다.

Programmable UV Systems

Model

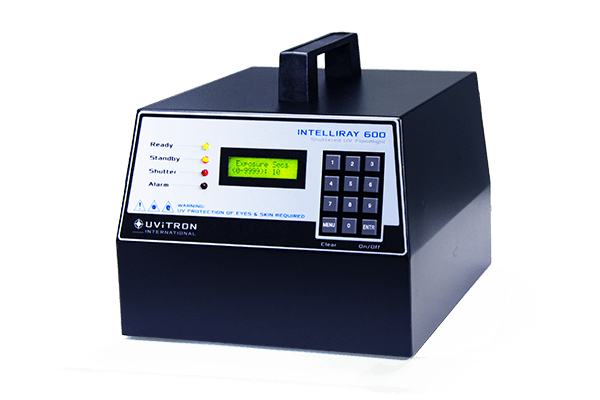

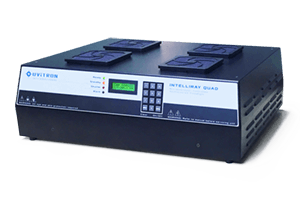

IntelliRay Quad
IntelliRay
SkyRay (LED)


System Type
Parabolic Flood Curing System
Parabolic Flood Curing System
LED Flood Curing System
Curing Area
16" x 12" (40 cm x 30 cm)
8" x 6" (20 cm x  15 cm)
5" x 5" (12 cm x 12 cm)
Intensity (Irradiance)
110 mW/cm2 UVA @ 4"
115 mW/cm2 UVA @ 3" with 400W
 175 mW/cm2 UVA @ 3" with 600W
Up to 2200 mW/cm2 Intensity @ 1"

User control of time & intensity
User control of time & intensity
User control of time & intensity
Lamp Power
2400W (4 x 600W)
400W
 600W
800W

4 long-life arc lamps with parabolic reflectors

Integrated Lamp head, power supply and controller
Curing chamber
Optional shielded curing chamber
Optional shielded curing chamber
Optional shielded benchtop curing chamber
Control
Remote control & reporting via PC or PLC
Remote control & reporting via PC or PLC
Remote control & reporting via PC or PLC

Integrated exposure shutter
Integrated exposure shutter
Cool-output Long-life LEDs available in 4 spectral type

Economical UV Systems

Model

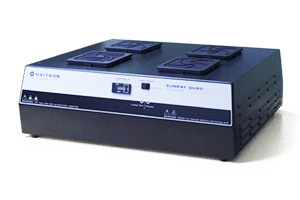

SunRay Quad
SunRay
PortaRay


System Type
Parabolic Flood Curing System
Parabolic Flood Curing System
Portable, hand-held flood curing system
Curing Area
16" x 12" (40 cm x 30 cm)
8" x 6" (20 cm x  15 cm)
Parabolic: 5" x 5" (12 cm x 12 cm; large area curing)
Focused: 5" x 3" (12 cm x 7 cm; high intensity curing)
Intensity (Irradiation)
110 mW/cm2 UVA @ 4"
115 mW/cm2 UVA @ 3" with 400W
175 mW/cm2 UVA @ 3" with 600W
270 mW/cm2 UVA @ 3"
Highest intensity in its class (up to 500mW/cm2)

Standby power switch
Standby power switch

Lamp Power
2400W (4 x 600W)
400W
600W
400W
600W

4 long-life arc lamps with parabolic reflectors


Curing Cahmber
Optional shielded curing chamber
Optional UV shield & mounting stand


Solid-state / Constant power
Compatible with the UV Conveyor 40
Effective for curing large surfaces manually or through automation

Mounting & Shielding for UV Systems

Model

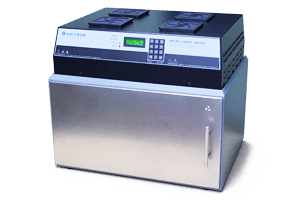

Rayven Quad - UV Curing Chamber

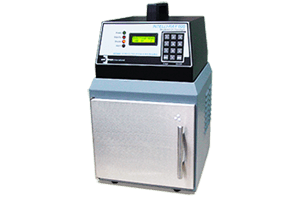

Rayven - UV Curing Chamber
Benchtop PortaRay

Cooling
Forced air w/ louvers, channeled from lamp head
Forced air w/ louvers, channeled from lamp head

Features
  • Fully shielded curing chamber for IntelliRay & SunRay Quad flood systems (with IntelliRay Quad)
  • Dual rear panel D-sub connectors allow IntelliRay control signals to be used with external control interface
  • Adjustable height curing tray with 9 repeatable curing distances
  • Fully shielded curing chamber for IntelliRay, SunRay & SkyRay flood systems (shown with IntelliRay)
  • Dual rear panel D-sub connectors allow IntelliRay control signals to be used with external control interface
  • Adjustable height curing tray with 5 repeatable curing distances
  • Used with IntelliRay, SunRay & SkyRay flood systems
  • Specialty benchtop configuration of the PortaRay
  • Economical concentrated flood curing system
  • Integrated solid-state / Constant power lamp power supply
  • Adjustable height mounting stand with front and rear UV shield
  • Standby Power Switch
Shelf Positions
Bottom of lamp to shelf (4”, 6”, 8”, 10”, 3", 5", 7", 9")
For IntelliRay / SunRay
For SkyRay

Bottom of lamp to shelf (1.75”, 3.5”, 5.25”, 7.0”)
Bottom of lamp to shelf (.75", 2.5", and 4.25")
Distance to Floor
Bottom of lamp to floor  (12.5”)
For IntelliRay / SunRay
For SkyRay

Bottom of lamp to floor (9”)
Bottom of lamp to floor (6.250”)
Curing Area


Concentrated light output: 5" x 5" curing area @ 3"
Lamp Power


400W
 600W
Intensity (Irradiation)


 200 mW/cm2 UVA, @3 " 300 mW/cm2 UVA, @3 "



UV LED Systems

Uvitron LED 경화 시스템은 고강도 고속 경화를 위해 여러 스펙트럼 유형에서 냉각된 수명이 긴 UV LED를 사용합니다. 열에 민감하거나 좁은 스펙트럼 범위에서 작동하도록 설계된 애플리케이션에 이상적입니다.

Model
SkyRay
SkyBeam




System Type LED Flood Curing System LED Spot Curing System
Curing area 5" x 5"
From 3mm to 15m
Intensity Up to 2200 mW/cm2 Intensity @ 1" From 900 to 14,000 mW/cm2 UVA (lens dependent)
Wave Length 365nm @ 1300 mW/cm2, 385nm @ 1700 mW/cm2, 395nm @ 1900 mW/cm2 & 405nm @ 2200 mW/cm2 4 Independent Irradiation Channels  (365 nm, 385 nm, 395  nm, 405 nm)
  Cool-output Long-life LEDs available in 4 spectral types Long-Life Flexible Light Guides, 4 Wavelengths
  User control of time & intensity / Remote control & reporting via PC or PLC Serial communication with PCs and PLCs.
  Integrated Lamp head, power supply and controller
  Optional shielded benchtop curing chamber



UV Conveyor Systems

Uvitron UV 컨베이어 시스템은 긴 부품 가공 또는 대량 생산에 이상적입니다. 컨베이어 벨트 속도는 디지털로 디스플레이되어 조정이 가능하므로 경화량(curing dose)을 정확하고 쉽게 제어할 수 있습니다.

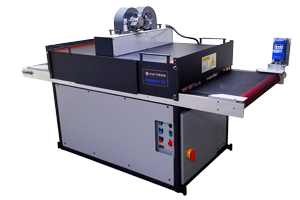

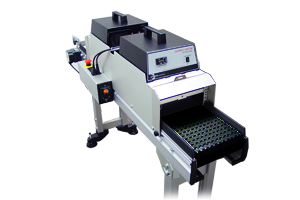

UV Conveyor 40
Sunbelt 25
UV Conveyor 40 Plus
UV Conveyor 40 + SkyRay
Dual Lamp Conveyor Curing System High-Power Light Curing Conveyor Dual Lamp Conveyor Curing System with sidecure Dual LED Lamp Conveyor Curing System
9 Inch Wide Belt, 6 Inch Cure Width 33 inch wide belt, 25 inch cure width 9 Inch Wide Belt, 6 Inch Cure Width 9 Inch Wide Belt, 5 Inch Cure Width
Intensity: 175 mW/cm2 UVA @ 3" High Intensity: 2150 mW/cm2 UVA @ 2" Intensity: 175 mW/cm2 UVA @ 3" Intensity: 2200 mW/cm2 UVA @ 1"
Variable Speed (up to 12 ft/min) & digital speed display Variable speed (up to 58 ft/min) & digital speed display Variable Speed (up to 12 ft/min) & digital speed display Variable Speed (up to 12 ft/min) & digital speed display
Adjustable lamp height Adjustable lamp height Adjustable lamp height Adjustable lamp height
Full UV shielding Full UV shielding Full UV shielding Full UV shielding
  Control panel, and ballast programming software
