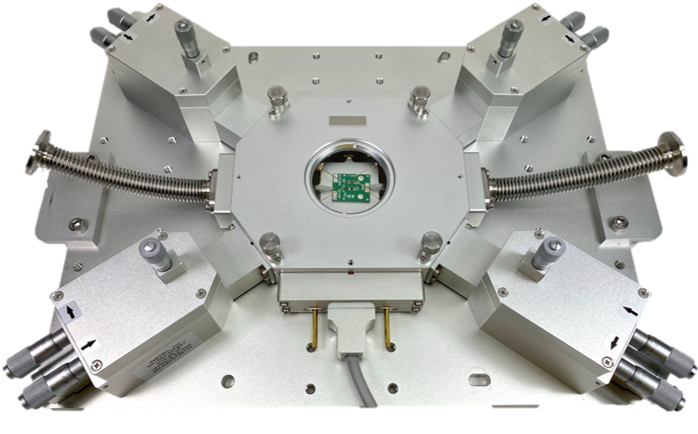

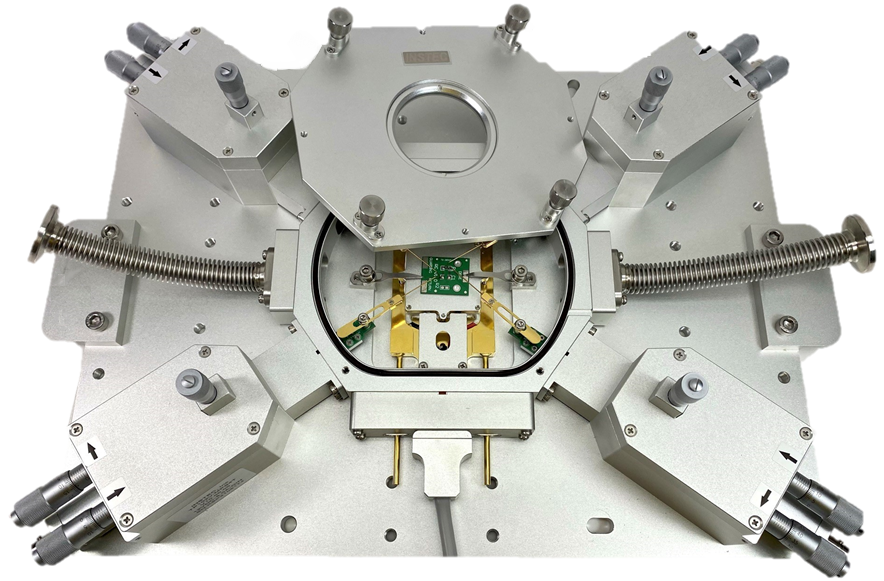

HCP421V-MPS Vacuum Chamber Probe Station

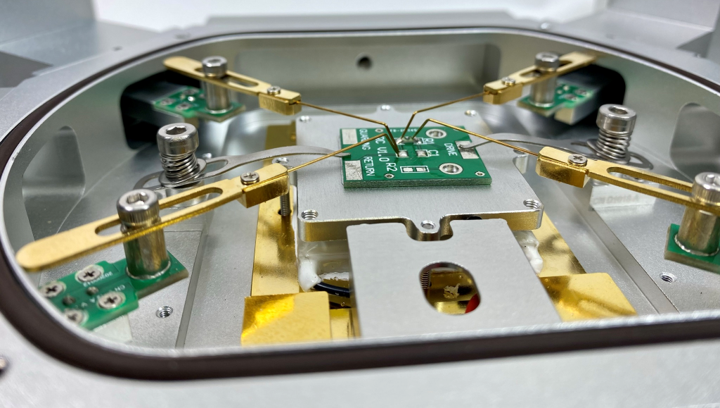

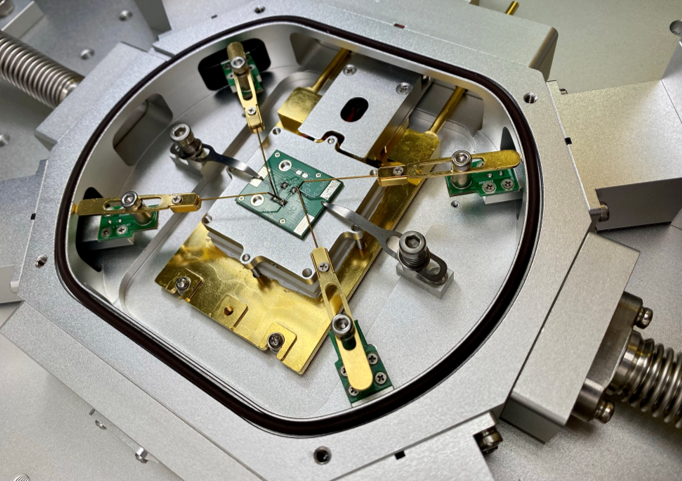

- The TP102V-MPS is a versatile probing station for use in thermally controlled electrical probing applications. The thermoelectric heater/cooling device allows for precise temperature control between -40°C to 160°C without use of LN2 or other consumeable coolants. Externable prober manipulators allow for precise landing of probers onto small electrical pads in-situ.
- Modular design allows for additional probers, electrical feedthroughs, or sensors can easily be added.
STRUCTURAL FEATURES
|
Sample Area |
40mm x 40mm square thermal area |
|
Chamber Height |
8mm |
|
Atmosphere Control |
Gas purging or vacuum capability to control humidity, condensation, and oxidation |
|
Frame Cooling |
Integrated frame cooling with chiller system (a stronger chiller is required for maximum temperature range) |
|
Frame Dimensions |
300mm x 300mm x 40mm |
|
Weight |
4000g |
OPTICAL FEATURES
|
Optical Access |
Reflection (transmission option available) |
|
Optical Windows |
Removable and exchangeable windows permit full-spectrum transparency |
|
Minimum Objective Working Distance |
12 mm |
|
Top Window |
50 mm diameter |
|
Top Viewing Angle |
±50° from normal |
|
Window Defrost |
Integrated external window defrost |
THERMAL FEATURES
|
Temperature Control |
|
|
Thermal Block |
Silver |
|
Temperature Minimum |
-25°C (-40°C is achievable with a stronger chiller) |
|
Temperature Maximum |
120°C (160°C extendable temperature available) |
|
Temperature Sensor |
100 Ω Platinum RTD |
|
Temperature Resolution |
0.01°C (RTD) |
|
Temperature Stability |
±0.05°C |
|
Software |
Windows software to record and export temperature-time data |
ELECTRICAL FEATURES
|
Electrical Probes |
Standard tungsten-rhenium DC probes with other probe options available |
|
Probe Positioning |
XYZ micro positioners remotely manipulate probes within sealed sample chambers with 10um resolution |
|
Connectors |
BNC connector (default), or triaxial BNC connectors |
|
Sample Surface |
Grounded (default), floating, or triaxial options |
