-30°C - 160°C with thermoelectric cooling and resistive heating option
-
40 mm × 40 mm sample area
-
Closed chamber with gas purging capability.
-
Optional Vacuum-tight sample chamber model
-

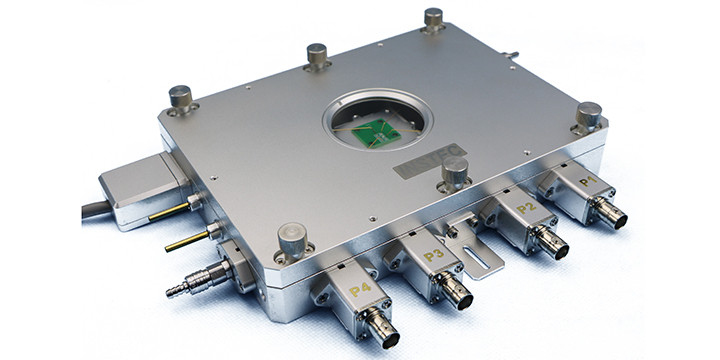

4 independent electrical probes with manual positioning
-
Optional triaxial connection
-
Optional extra feedthrough
Thermal Features
|
Temperature Control |
mK2000 with programmable precision LVDC PID method to minimize electrical noise |
|
Temperature Minimum |
-30°C |
|
Temperature Maximum |
160°C |
|
Temperature Sensor |
100 Ω Platinum RTD |
|
Minimum Heating and Cooling Rate |
±0.01°C per minute |
|
Temperature Resolution |
0.01°C |
|
Temperature Stability |
±0.05°C |
|
Power Supply |
Universal power input |
|
Software |
Windows software to record and export temperature-time data |
Electrical Features
|
Electrical Probes |
DC electrical probe options in tungsten-rhenium, beryllium-copper, or other materials |
|
Probe Positioning |

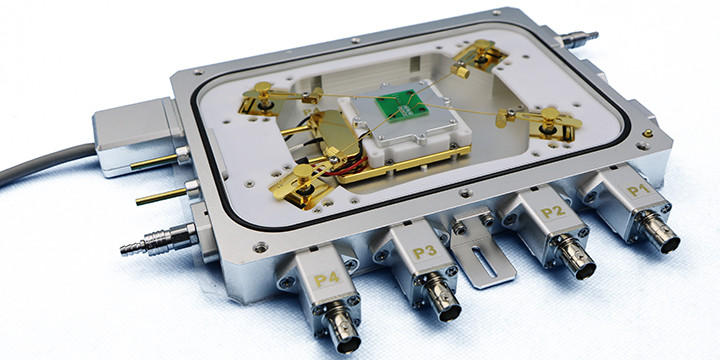

Manual cantilever probes independently positionable to any point of the sample area before sealing chamber |
|
Connectors |

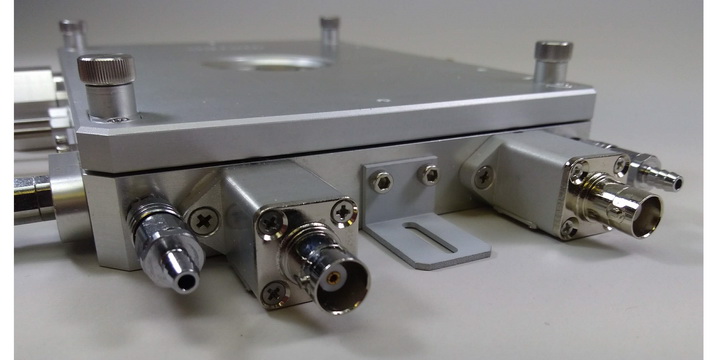

Coaxial BNC with floating or triaxial options Optional extra feedthrough |
|
Sample Surface |
Grounded, floating, or triaxial options |
Optical Features
|
Optical Access |
Optical access to sample via reflection |
|
Optical Windows |
Removable and exchangeable windows permit full-spectrum transparency |
|
Minimum Objective Working Distance |
8.5 mm |
|
Top Window |
38 mm diameter |
|
Top Viewing Angle |
±60.7° from normal |
|
Window Defrost |
Integrated external window defrost |
Structural Features
|
Sample Area |
40 mm x 40 mm |
|
Chamber Height |
6.3 mm |
|
Atmosphere Control |
Gas purging capability to control humidity, condensation, and oxidation |
|
Frame Cooling |
base cooling with optional chiller system |
|
Mounting |
Horizontal and vertical mounting capability |
|
Frame Dimensions |
200 mm x 145 mm x 30 mm |
|
Weight |
1500 g light-weight aluminum body |
