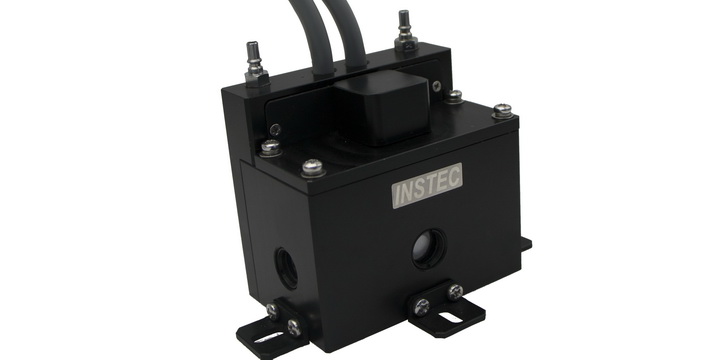

HCS600-CUV Heating & Cooling Stage
-
Spectrophotometer thermal cell
-
Fits standard 12.5 mm x 12.5 mm cuvettes
-
-60°C ~ 600°C
-
Designed for thermal control of liquid phase processes in standard cuvettes during spectrophotometry
-
Explore the chemical kinetics of liquid-phase reactions and processes
-
Research materials composition in solids, liquids, and gases
Thermal Features
|
Temperature Control |
mK2000 with programmable precision switching PID method |
|---|---|
|
Thermal Block |
Clear anodized aluminum |
|
Temperature Minimum |
-60°C optional |
|
Temperature Maximum |
600°C |
|
Temperature Sensor |
100 Ω Platinum RTD |
|
Maximum Heating Rate |
+60°C per minute at 100°C |
|
Maximum Cooling Rate |
-100°C per minute at 100°C |
|
Minimum Heating and Cooling Rate |
±0.01°C per minute |
|
Temperature Resolution |
0.01°C |
|
Temperature Stability |
±0.05°C (above 25°C)，±0.1°C (below 25°C) |
|
Power supply |
Universal power input |
|
Software |
Windows software to record and export temperature-time data |
Optical Features
|

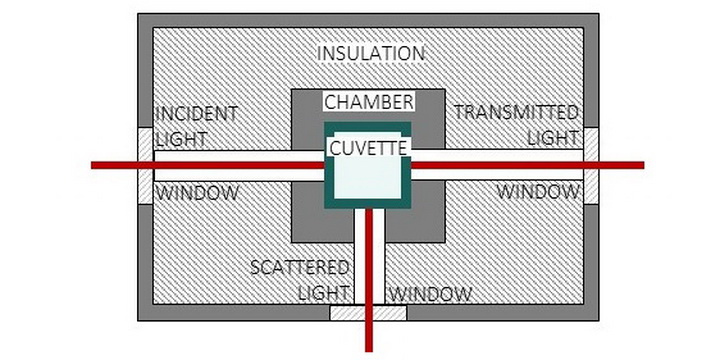

Optical access |
3 apertures for incident, transmitted, and 90° scattered light |
|---|---|
|
Optical windows |
Removable and exchangeable windows permit full-spectrum transparency |
|
Aperture for 90° scattered light |
5 mm diameter |
|
Transmission Aperture |
5 mm diameter |
Structural Features
|
Sample Chamber |
12.5 mm x 12.5 mm to fit standard cuvettes |
|---|---|
|
Sample Access |
Top quick-access flip cover |
|
Mounting |
vertical mounting |
|
Frame Dimensions |
75 mm x 68 mm x 50 mm |
|
Weight |
500 g / 750 g with cable |
