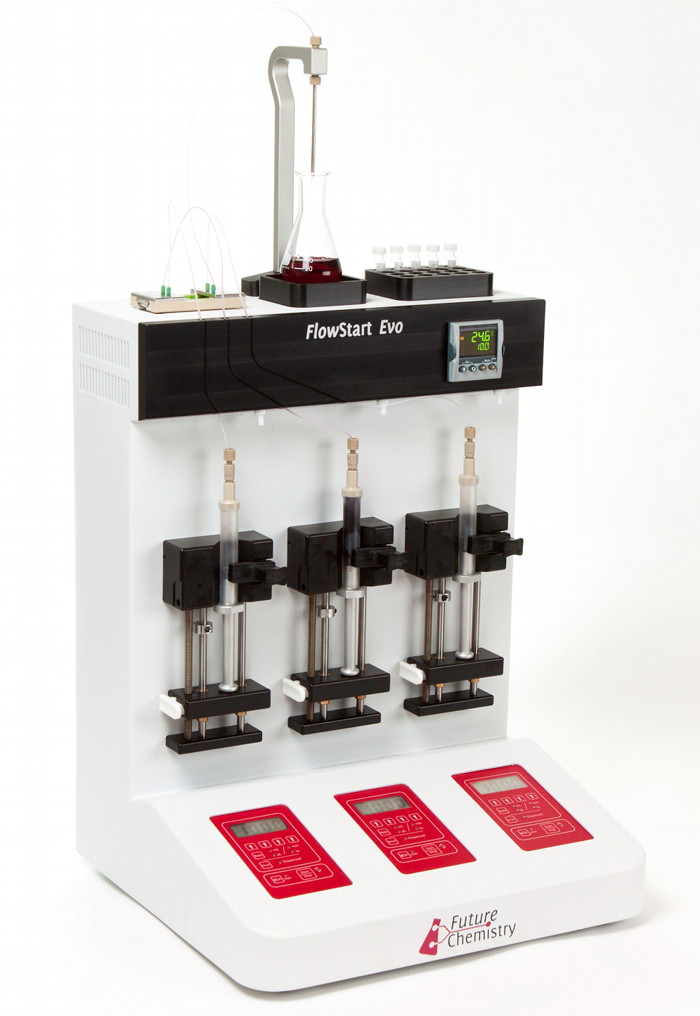

This FlowStart Evo Application Package includes a B-400 FlowStart Evo, a set of three Basic microreactors and our patented Photochemistry module.
The FlowStart Photochemistry Package allows you to combine photochemistry with the benefits that flow chemistry offer. Advanced chemistry in a very mild and clean way, which immensely decreases the reaction time on photochemistry reactions and leads to highly pure products.
Specifications:
Temperature Module
| Minimum temperature | -10 °C (14 °F) |
| Maximum temperature | 140 °C (212 °F), with High temperature kit up to 200 °C (392 °F) |
| Control | Local interface (no computer required), optional can be controlled with PC |
| AC Power | 110-120 V / 220-240 V, 50-60 Hz |
| Temperature accuracy | +/- 0.5 °C (+/- 0.9 °F) |
Microreactor Holder
| Fluidic connection | Flat bottom ferrule |
| Microreactor compatibility | FutureChemistry Microreactor cartridge |
| Dimensions (L x W x H) | 80 x 44 x 11.5 mm |
Basic Microreactor
| Qty. | Type Reactor | Inlets | Internal volume(?L) | Flow Rate (?L/min) | Reaction time |
| 3 | Basic | 2 | 100 | 2 ? 400 | 15 sec ? 50min |

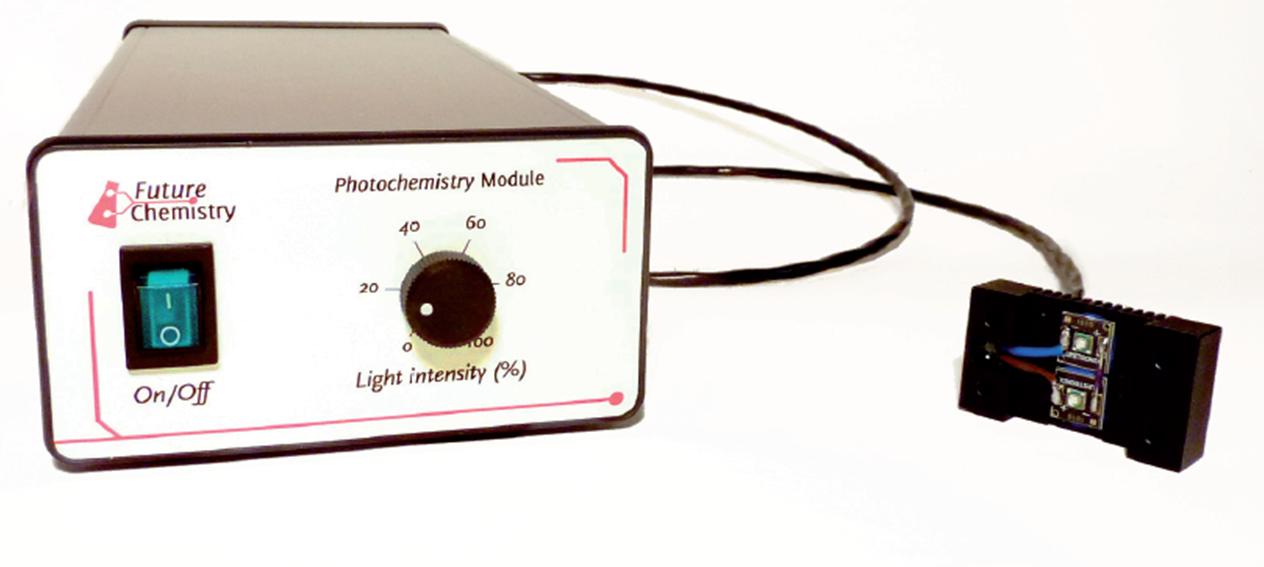

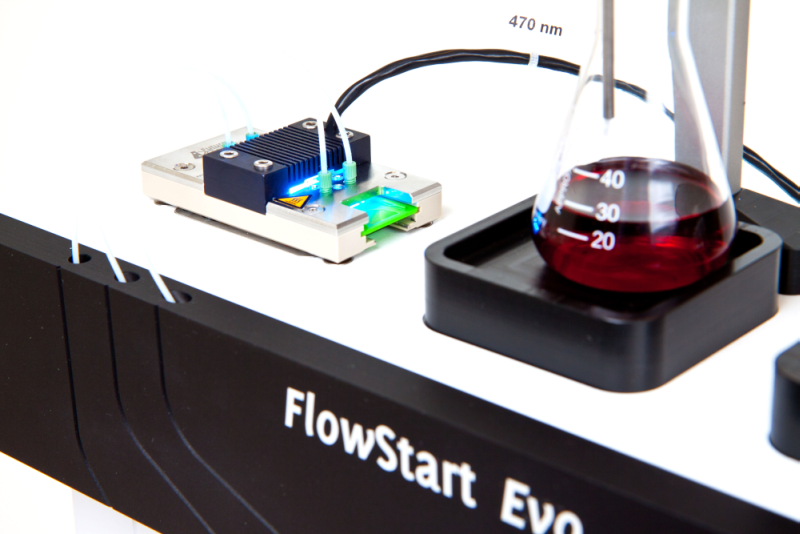

| Photochemistry Module | ||
| Light color: | Ultraviolet | Blue |
| Emission wavelength (nm): | 365 | 470 |
| Radiant flux (W): | 0.32 | 2.0 |
| Photon rate (μmol/min): | 60 | 470 |
| Compatible with: | FlowStart, FlowStart Evo, | FlowScreen |
| AC power: | 220/240 V or 100/110 V | (50/60 Hz) |
