등온배터리칼로리미터

Isothermal Battery Calorimeter and Isothermal Air Calorimeter

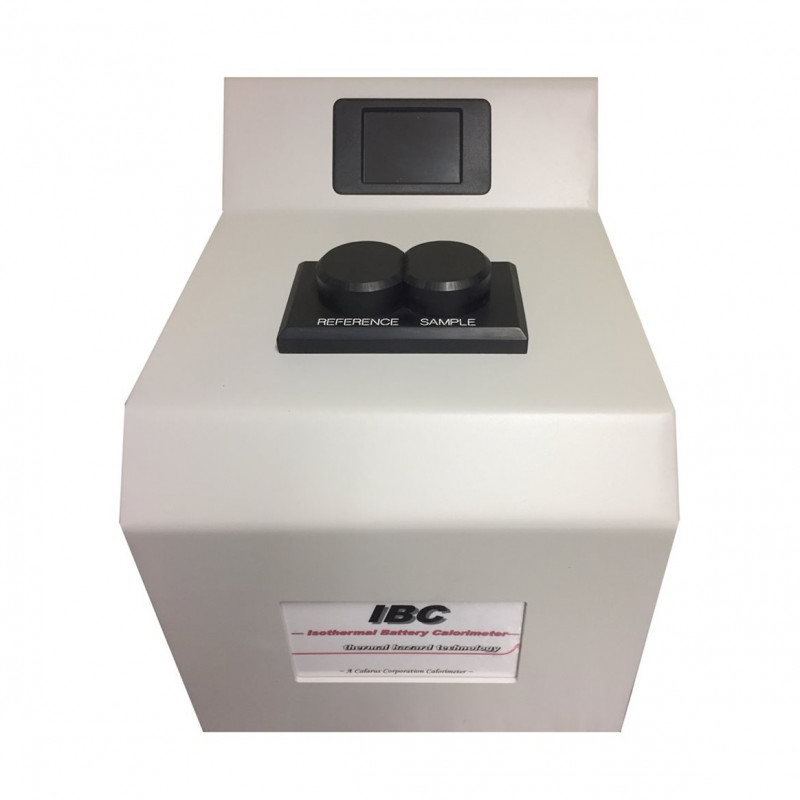

IBC for Coin cell

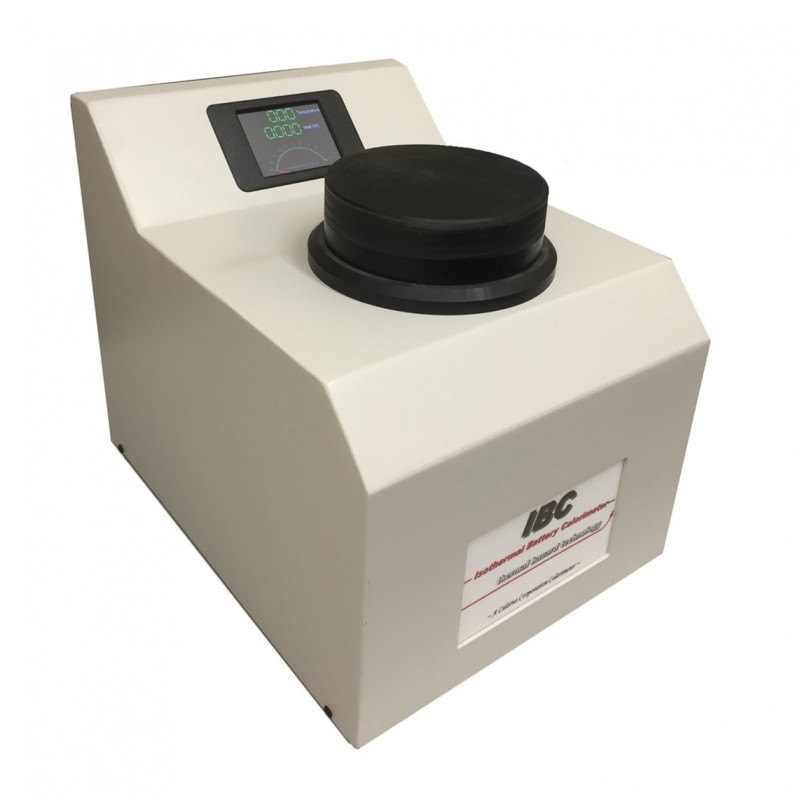

IBC for Cylindrical cell

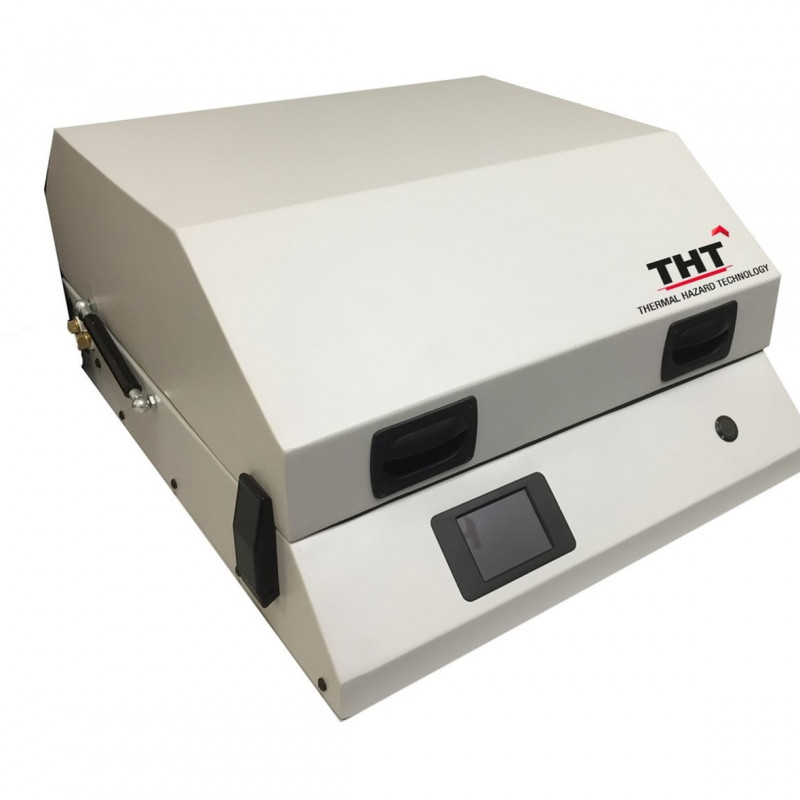

IBC for Prismatic cell

Isothermal Air Calorimeter

Max Temperature (°C)

60 °C

60 °C

60 °C

60 °C

Min Temperature (°C)

-5 °C

-5 °C

-30 °C

-20 °C

Temperature Stability (°C)

0.01 °C

0.01 °C

0.05 °C

0.05 °C

Refrigerated recirculator required

No

No

Yes

Yes

Calorimeter chamber diameter

25mm

26mm (customisable)

300mm x 300mm

450mm x 400mm

Calorimeter chamber depth

5mm

70mm (customisable)

40mm

300mm

Number of sample chambers

1

1

1

1

Number of reference chambers

1

0

0

0

RMS Noise under controlled ambient conditions

10µW

200µW

200mW

500mW

Max heat detection

500mW

10W

100W

100W

Inegrated Cycler

No

No

No

No

Min Current

Defined by cycler

Defined by cycler

Defined by cycler



Max Current

20A

20A

20A



Current resolution

Defined by cycler

Defined by cycler

Defined by cycler



Internal wiring (force)

16 ga (1.3mm)

8 ga (3.3mm)

N/A



Internal wiring (sense)

20 ga (0.8mm)

20 ga (0.8mm)

N/A



Heat capacity measurement capability

Yes

Yes

Yes

No

Heat cut out

No

Yes

No

No

NPurge

Yes

Yes

Yes

Yes

External cycler terminals

Yes

Yes

No

No

Footprint (Width x Height x Depth)

25 x 30 x 41 cm

25 x 30 x 41 cm

46 x 61 x 36 cm

76 x 66 x 61 cm

Weight

10 kg (22 lbs)

10 kg (22 lbs)

25 kg (56 lbs)

22 kg (48 lbs)
