Quick Determination of moisture (1-6 minutes)
수분 값 측정은 자동으로 표시되며 데이터는 안정적이고 정확합니다.
분말, 그래뉼, 페이스트, 액상, 유.무기 화학원료, 시리얼, 곡물, 종자, 전분, 식품, 육류, 종이, 토양, 슬러지, 섬유, 연료, 수지, 실리카, 플라스틱, 석탄, 비료, 약물, 세라믹, 목재, ore 등 다양한 재료의 수분 측정에 사용됩니다.
Features

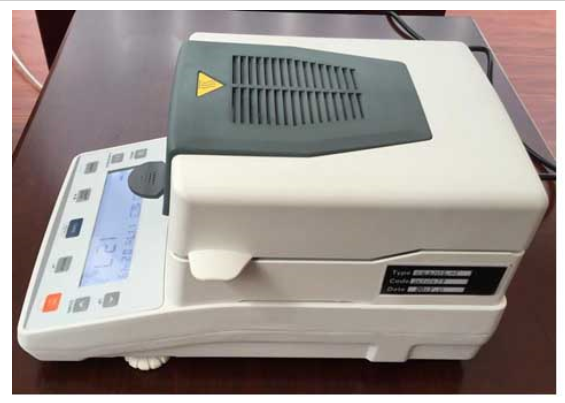

1. High accuracy: halogen moisture analyzer with fast and sensitive load cell.
2. Standard RS-232 interface: connect a PC or a printer.
3. Easy to operate: ergonomically designed handle plate, to avoid burns hot when placed in a sample taken, wing-shaped handle easily turned off heated lid.
4. Three kinds of drying process
- Standard Drying: The default setting, Suitable for most samples. The heating temperature can be set, the sample is heated to the set temperature, and remains on until test is automatically terminated.
- Slow Drying: For sample with lower moisture content, easy to form the shell surface, flammable. It takes long time from initial heating temperature to a set value, User can select the heating time.
- Fast drying: Suitable for higher moisture content samples. Can be set the heating temperature, Initial heating temperature exceeds a set value, Would later reduced to a set temperature and maintained until the test is automatically terminated.
5. Three shutdown mode: Automatic shutdown, manual shutdown, timed shutdown
6. Can be equipped with printer (with extra charge)
7. Provided 100g poise for calibration
Technical parameters:
|
Model
|
111L-10
|
111L-5
|
111L-2
|
111L-1
|
|
Specification
|
110 g / 10 mg
|
110 g / 5 mg
|
110 g / 2 mg
|
110 g / 1 mg
|
|
Readability
|
10 mg
|
5 mg
|
2 mg
|
1 mg
|
|
Moisture range
|
0.0% ~ 100%
|
0.00% ~ 100%
|
||
|
Readability accuracy
|
0.20%
|
0.10%
|
0.04%
|
0.01%
|
|
Dry residual range
|
100.00% ~ 0.00%
|
|||
|
Readability accuracy
|
0.20%
|
0.10%
|
0.04%
|
0.01%
|
|
Pan size
|
Φ90 mm
|
|||
|
Heating mode
|
Halogen lamp
|
|||
|
Display
|
LCD
|
|||
|
Temperature sensor
|
PT-100
|
|||
|
Temperature Setting
|
40 ℃ ~ 199 ℃
|
|||
|
Temperature interval
|
1 °C
|
|||
|
Working temperature
|
5 °C ~ 35 °C
|
|||
|
Time Setting
|
1~99 minutes
|
|||
|
Automatic shutdown
|
0.1% ~ 9.9% within 1 min
|
|||
|
ATRO
|
100%~999%
|
|||
|
ATRO
|
0%~999%
|
|||
|
History store
|
15 groups
|
|||
|
Power supply
|
220 VAC
|
|||
|
Heater
|
220 VAC +15%, 50/60Hz, 115 VAC +15%, 400W
|
|||
|
Balance
|
External power
|
|||
|
Output: 9V, Input: 220 VAC+15%, 50/60Hz
|
||||
|
Calibration mode
|
External calibration with provided poise 100g
|
|||
|
Connect output
|
RS232
|
|||
|
Dimensions
|
200 (W) x 180 (L) x 380 (H), mm
|
|||
|
Weight
|
6 kg
|
|||
Quick (1-6 minutes) Determination of moisture of the measured object, using the principle of heating and drying, moisture values measured object is automatically displayed, the data is stable and accurate.
For powder form, granular, paste, liquid, organic and inorganic chemical raw materials, a variety of cereals, grain, seed, feed, starch, food, meat, tobacco, tea, paper, grass, soil, sludge, textiles, fuel, resin, silica, plastic particles, coal, fertilizer, medicine, ceramics, wood, ore.
