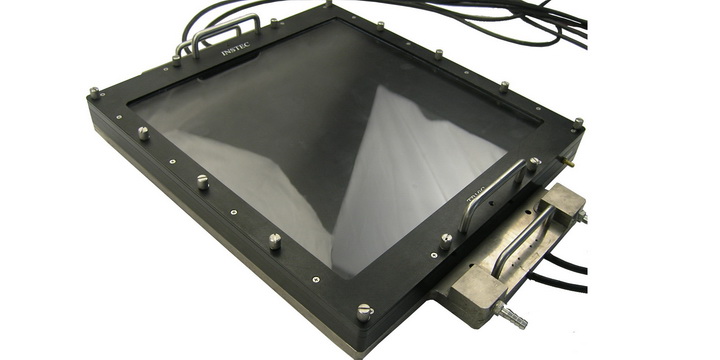

Bench Top Thermal Plate

Perform experiments under programmable precision temperature control from -30°C ~ 120°C depending on model
Standard square plates from 50 mm to 300 mm, with custom sizes available
Bench mounting capability

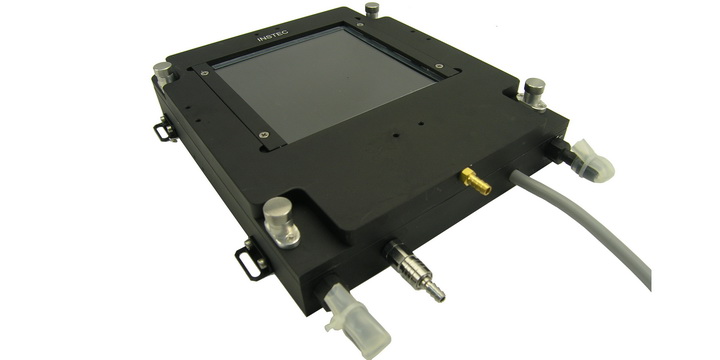

Optional frames with sealed covers for gas purging or vacuum capability, with removable handles and electrical feedthrough options
Cooling down to -30°C without using LN2
Optional electrical feedthroughs

Surface Options	Standard: clear anodized aluminum Optional: nickel, zinc, or gold plating
Atmosphere Control	Sealed chamber with gas purging capability to control humidity, condensation, and oxidation
Frame Cooling	Optional chiller
Mounting	Benchtop mounting capability
Temperature Control	mK2000 with programmable precision switching PID method Optional LVDC PID method to minimize electrical noise
Temperature Sensor	100 Ω Platinum RTD
Temperature Resolution	0.01°C
Temperature Stability	±0.05°C
Temperature Uniformity	±0.1°C per cm
Power Supply	Universal power input
Software	Windows software to record and export temperature-time data

Models

Model	Size (Square)	Weight	Temperature Range		Maximum Rate at 37°C
			MIN	MAX	Heating	Cooling
TP102SG	50 mm	1kg	-30°C	120°C	+30°C / min	-20°C / min
TP104SG	100 mm	2 kg	-30°C	120°C	+25°C / min	-12°C / min
TP106SG	150 mm	5 kg	-30°C	120°C	+15°C / min	-6°C / min
TP108SG	200 mm	12 kg	-30°C	120°C	+12°C / min	-4°C / min
TP10CSG	300 mm	30 kg	-30°C	120°C	+7°C / min	-4°C / min

Instec, Inc. USA
