THE NEW NORMAL

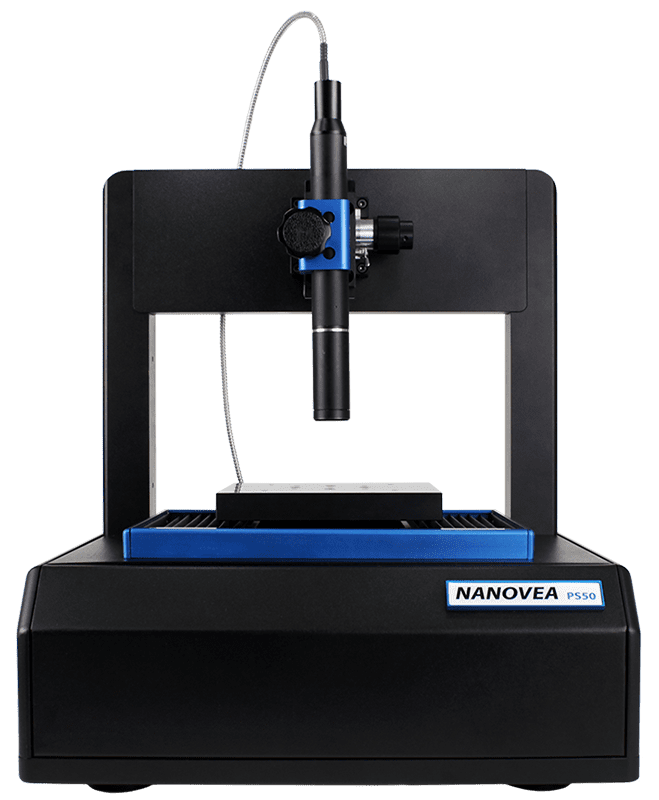

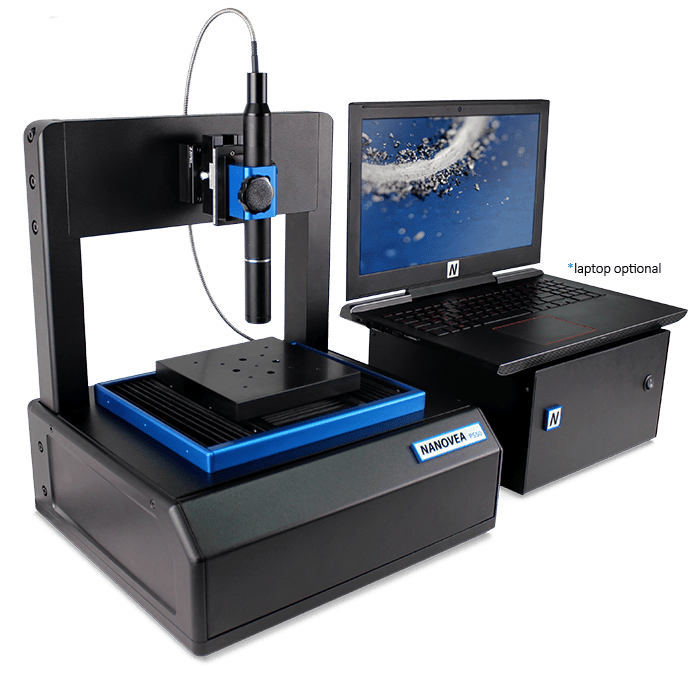

NANOVEA Non-Contact Optical Profilers are the ideal upgrade from traditional contact stylus and laser profilometers.
AFFORDABLE INVESTMENT
All testing capabilities.
In a uniquely compact set-up.
At an affordable price.
SOPHISTICATED INSTRUMENT
SIMPLE DESIGN
X – Y Scan Area
50 x 50 mm Motorized
Height Range
110 µm to 24 mm
Desktop Dimensions
38 x 33 x 43 cm
Scan Speed
20 mm/sec
Best for steep angles
Fast for large areas
Very easy to use
No Image Stitching
No Sample Prep
No Refocusing
2D & 3D NON-CONTACT PROFILOMETRY
What can we do?

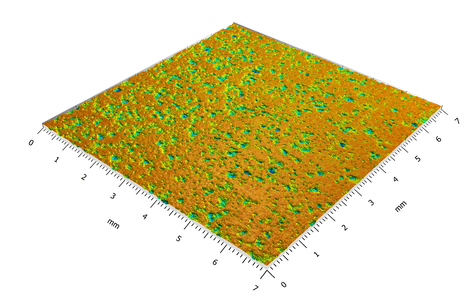

ROUGHNESS | FINISH
- One second Ra measurement
- Any materials or surface complexity (3D or 2D)
- Automotive roughness finish standards

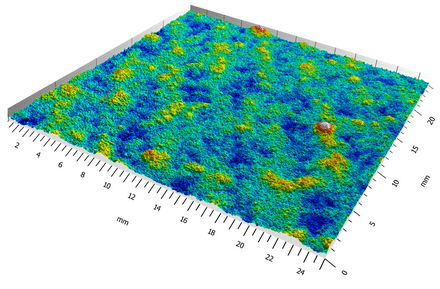

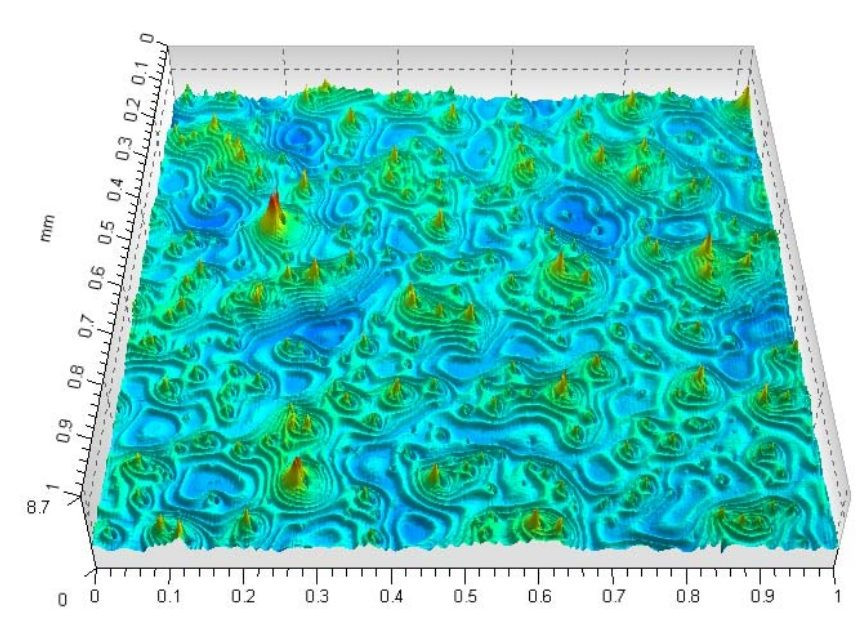

TEXTURE
- Isotropic & anisotropic surfaces
- Hills & valley analysis

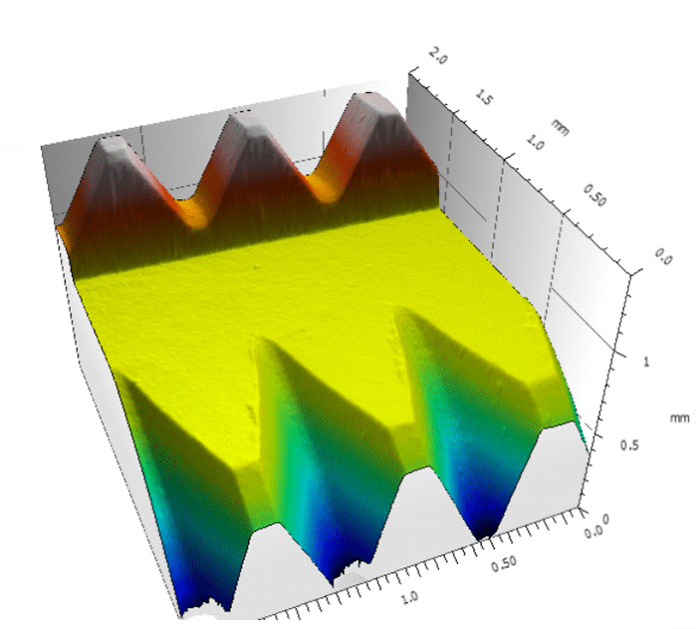

GEOMETRY & SHAPE
- Direct comparison to CAD geometry
- Curvature, radius, and angles
- Lateral Dimension
- Drill bit studies
- Cutting tools studies

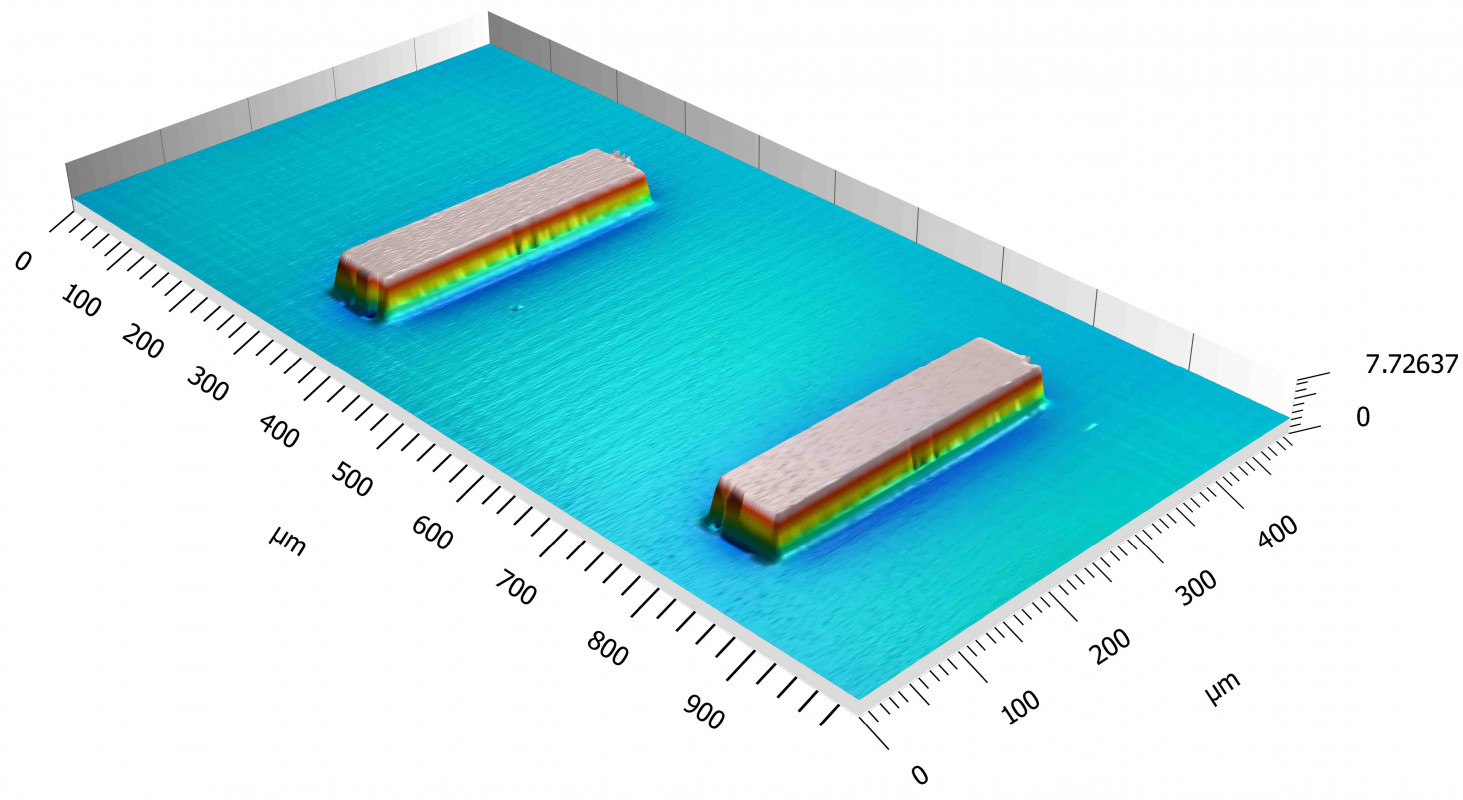

STEP HEIGHT | THICKNESS
- Measure through transparent materials
- Transparent film and coating thickness down to 20nm
- Steps from 20nm to 25mm
VOLUME | AREA
- Surface subtraction & volume lost
- Corrosion analysis
- Motif and grain analysis

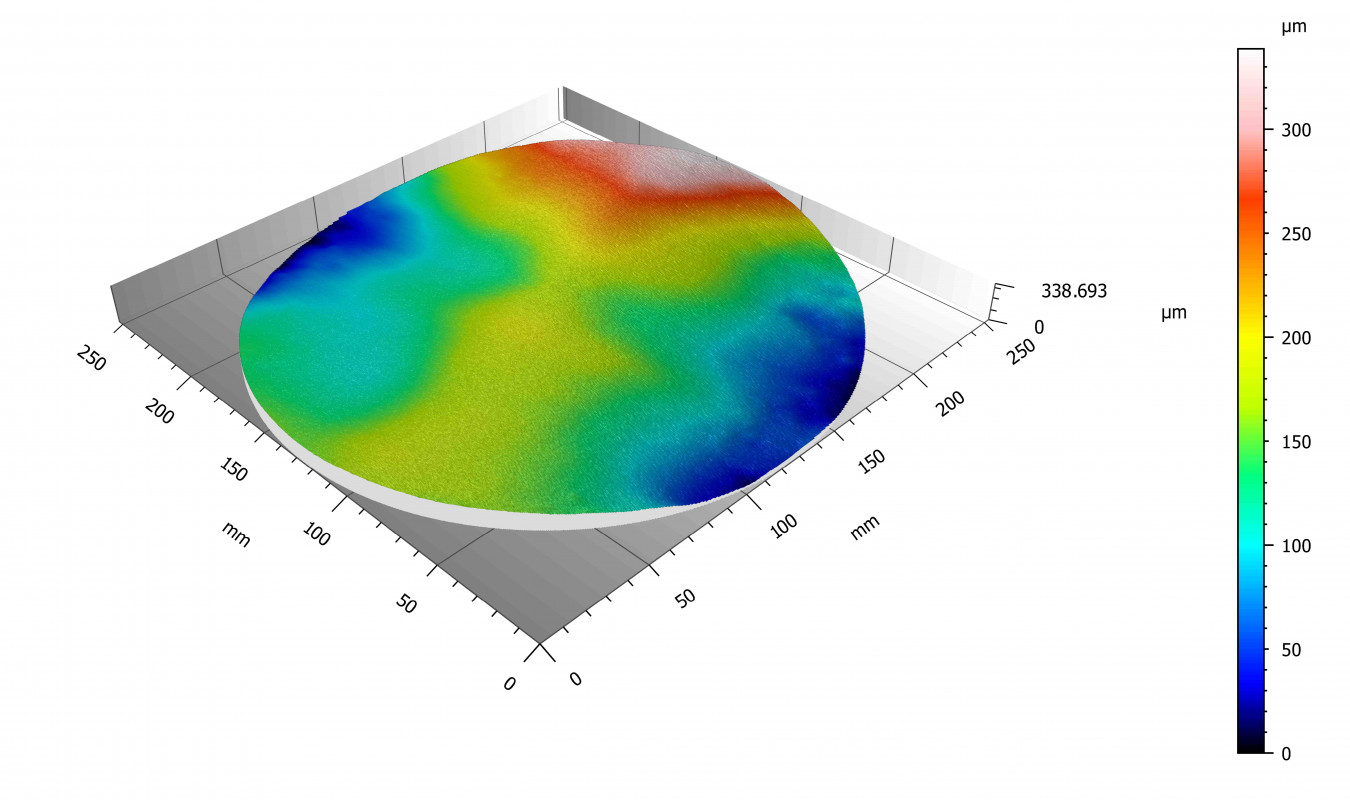

FLATNESS | WARPAGE
- Flatness <1um over 500mm with no correction
