Get Our High Capacity Universal Test Machines

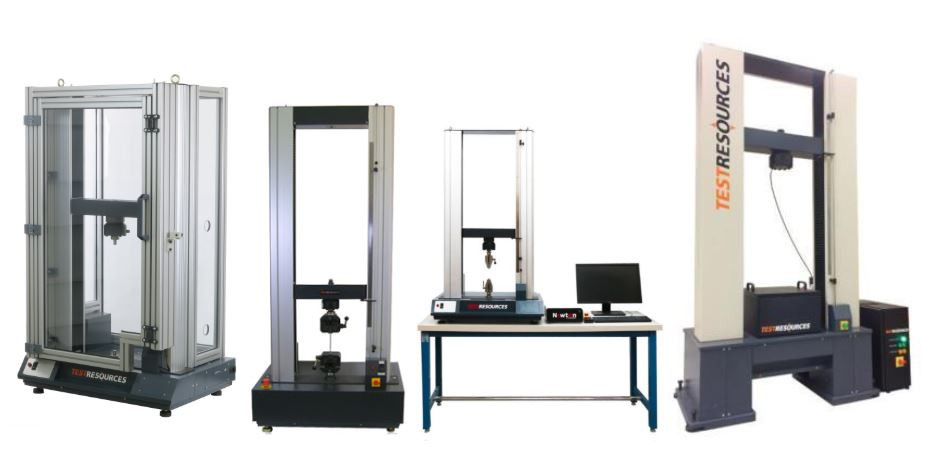

300 Series Electromechanical Universal Test Machines
300 Series Dual Column Electromechanical Universal Test Machines are the best choice for performing static tension and/or compression applications that require higher forces, higher speeds or increased test space than the 100 or 200 Series can offer. Models are available with load capacities between 5 kN and 500 kN (1,125 lbf and 110 kip).
These dual column test machines perform the full gamut of mechanical including Tensile, Compressive, Bend, Bond, Flexural, Fracture, Peel, Shear, Tear, Stress Relaxation, and Short term Creep tests. Each system is configured to your application needs.
| Family | Load Frame Type | Max Force Capacity | Applications |
|---|---|---|---|
| 310 | Tabletop | 5 kN (1,125 lbf) | Medical, adhesives, rubber, etc |
| 311 | Tabletop | 10 kN (2,250 lbf) | Plastics, ceramics, etc |
| 312 | Tabletop | 25 kN (5,500 lbf) | Plastics, etc |
| 313 | Tabletop | 50 kN (11,250 lbf) | Composites, aluminum |
| 370 | Extra wide floor standing | 50 kN (11,250 lbf) | Products and components |
| 314 | Floor standing | 100 kN (22,500 lbf) | Composites, steel |
| 315 | Floor standing | 150 kN (33,750 lbf) | Steel |
| 316 | Floor standing | 300 kN (67,500 lbf) | Steel products |
| 326 | Compression only | 300 kN (67,500 lbf) | Universal |
| 317 | Floor standing | 500 kN (112 kip) | Universal |
Step 1: Select Your Frame
310 Family Electromechanical Universal Test Machines
Speed: 1,000 mm/min (40 ipm)
Force: 5 kN (1,125 lbf)
310 Family tabletop machines are configured to each customer needs including performance, flexibility, simplicity and affordability. This frame is best for smaller loads and a higher speed.
311 Family Electromechanical Universal Test Machine
Speed: 500 mm/min (20 ipm)
Force: 10 kN (2,250 lbf)
311 Family tabletop machines are configured to each customer needs. This load frame features robust high quality dual column ball screws selected for full scale loading. Frame options include extended columns and wide width versions made-to-order.
312 Family Electromechanical Universal Test Machine
Speed: 500 mm/min (20 ipm)
Force: 25 kN (5,500 lbf)
312 Family tabletop machines are configured to each customer needs. The load frame features robust high quality dual column ball screws selected for full scale loading. Frame options include extended columns and wide width versions made-to-order.
313 Family Electromechanical Universal Test Machine
Speed: 500 mm/min (20 ipm)
Force: 50 kN (11,250 lbf)
313 Family dual column load frame with extra height and width options. Even with higher loads this frame has a load accuracy +/- 0.5% of indicated load within load cell rated force range.
370 Electromechanical Wide Width Test Machines
Speed: 300 mm/min (12 ipm)
Force: up to 50 kN (11,250 lbf)
Column Spacing 1200 mm (48 in)
370 Family wide width dual column electromechanical test machines are designed for tension and compression tests at forces up to 50 kN (11,250 lbf). Ideal for compression tests on cartons, packaging, pallets and components.
314 Family Electromechanical Universal Test Machines
Speed: 300 mm/min (12 ipm)
Force: 100 kN (22,500 lbf)
314 Family floor standing universal test machines are configured to each customer's needs. This machine is for high force requirements and has a column clearance of 550 mm (21.6 in).
315 Family Electromechanical Universal Test Machines
Speed: 300 mm/min (12 ipm)
Force: 150 kN (33,750 lbf)
315 Family floor standing universal test machines are configured to each customer's needs. This machine is for higher force requirements with a column clearance of 550 mm (21.6 in).
316 Family Electromechanical Universal Test Machines
Speed: 300 mm/min (12 ipm)
Force: 300 kN (67,500 lbf)
316 Family floor standing universal test machines are configured to each customer's needs. This machine is for higher force requirements such as for testing heavy steel products.
317 Family Electromechanical Universal Test Machines
Speed: 300 mm/min (12 ipm)
Force: 500 kN (112 kip)
317 Family floor standing universal tester has a dual column load frame with extra height and width options available. This machine has a high travel of 1000 mm (40 in).
326 Electromechanical Compression Test Machines
Speed: 400 mm/min (1.6 ipm)
Force: 300 kN (67,500 lbf)
326 Family floor standing compression test machines are configured to each customer's needs. This test machine is configured to eliminate unnecessary features and provides the most affordable and easy to use option for many customers.
Step 2: Select Your Controller Software
Choose From 190+ Pre-configured Software Solutions
Pre-configured solutions meet customer specifications and budget for a wide range of test applications. Industry standard-specific software modules, enhanced features and custom calculations are just a few of the options to choose from with Newton.
Step 3: Select Your Accessories
Choose From 1,000's of Accessories
Choose from a wide variety of test accessories for a wide variety of purposes. These accessories include grips, environmental chambers, transducers, and sample preparation items. With these accessories, you can have confidence that your specimens will be tested consistently, correctly, and will yield ideal results.
Add Torsion
Simple twist-thrust biaxial tests help evaluate the mechanical performance of tubes, screws, connectors, wires and bottles. TestResources solves these applications in multiple ways that depend on the timing of your torsion add-on. Our systems are inherently modular and flexible which allows you to add the torsion channel upfront or in the field in a short amount of time.
Step 4: Contact Us
Ready to configure your test machine?
Contact us to confirm your configuration, request prices, and place your order.
