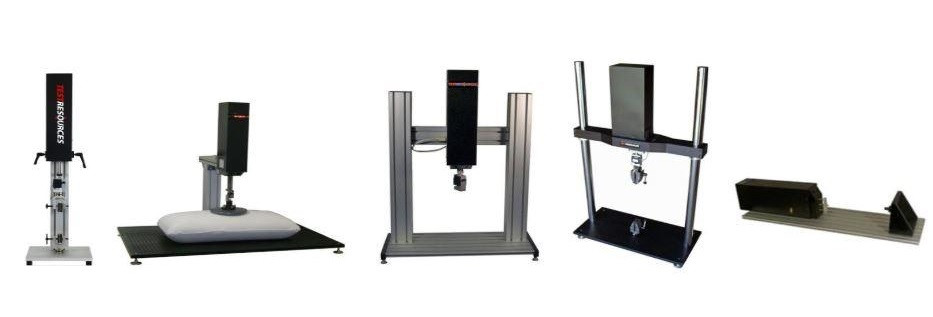

100 Series Electromechanical Universal Test Machine
100 Series Universal Test Machines are modular, low force, tabletop systems ideal for tension and compression tests at loads up to 9 kN (2000 lbf). This series includes five load frames, four load capacities, controller software and load cells to your test requirements. The 100 Series is popular because of the number of configurations available for a wide range of test scenarios.
| 100 Series by Max Force | Load Capacity | ||||
|---|---|---|---|---|---|
| Family |
Max Force Max Speed |
1.1 kN (250 lbf) 760 mm/min (30 ipm) |
2.2 kN (500 lbf) 300 mm/min (12 ipm) |
4.4 kN (1000 lbf) 200 mm/min (8 ipm) |
9 kN (2000 lbf) 50 mm/min (2 ipm) |
| 100 | Single Column | ✔ | ✔ | ✔ | |
| 110 | Cantilever (C Type) | ✔ | ✔ | ||
| 120 | Dual Column (Aluminum) | ✔ | ✔ | ||
| 140 | Dual Column (Steel) | ✔ | ✔ | ✔ | ✔ |
| 150 | Horizontal Table | ✔ | ✔ | ||
Top Features for the 100 Series
- Capable of tension, compression, bend, flexure, peel, shear, stress relaxation, and creep tests.
- Choose controller software, load frame type, and actuator stroke/force/speed
- Adjustable Test Space
- Load accuracy 0.5% of indicated load
- Up to 5,000 Hz data acquisition rate
- Automatic transducer recognition
- Digital position encoder with sub-micron resolution
- Constant speed, constant load rate, position and load control
- 12 month warranty
- Meets or exceeds national and international accuracy standards for materials testing systems
Compare the 100 Series by Application
| Family |
Common Applications |
Common Standards |
|---|---|---|
| 100 |
|
|
| 110 |
|
|
| 120 |
|
|
| 140 |
|
|
| 150 |
|
Step 1: Select Your Frame
100 Family Electromechanical Universal Test Machines
Type: Electromechanical
Force: 1.1 kN (250 lbf) to 4.4 kN (1000 lbf)
- Ideal for tensile, compression, shear, flexural, peel and tear tests
- Commonly used for materials and product tests
- Destructive and proof load tests
- Quality control and research applications
- Biomedical applications
100 Family Electromechanical Universal Test Machines are configured to your application at an affordable price to match your budget. With the TestResources unique modular design, the 100 Series performs quasi-static tests including tensile, compression, peel, tear, shear, friction, creep, stress relaxation and cyclic. This machine is best for testing lighter loads up to 4.4 kN (1000 lbf) and at speeds up to 760mm/min (30 in/min). The 100 Family is perfect for smaller samples that need elongation less than 300 mm (12 in).
110 Family Electromechanical Universal Test Machines
Speed: 625 mm/min (25 ipm)
Force: 1.1 kN (250 lbf) to 2.2 kN (500 lbf)
- Large sample, low force test applications
- Tensile, compression, shear, flexural, peel, and tear tests
- Foam tests - Indentation Load Deflection (ILD and IFD)
- Materials and product tests
- Destructive and proof load tests
110 Family Electromechanical Universal Test Machines are configured to your application at an affordable price to match your budget. The 110 Family performs low force tests such as tensile, compression, peel-adhesion, flexural-bend, shear, tear, friction and cyclic. This system tests at loads up to 2.2 kN (500 lbf) and at speeds up to 30 ipm (760 mm/min). The 110 Family Single Column C-Type design provides double the space from the 100 Series for testing larger samples. The versatile frame works especially well for testing foam or other soft materials. With the TestResources unique modular design, load frames can be configured to your test specimen height and width requirements.
120 Family Dual Column Electromechanical Universal Test Machines
Feature: Increased test space
Force: 1.1 kN (250 lbf) to 2.2 kN (500 lbf)
- Ideal for tensile, compression, shear, flexural, peel and tear tests
- Commonly used for materials and product tests
- Destructive and proof load tests
- Foam tests - Indentation Load Deflection (ILD and IFD)
- Large sample, low force test applications
120 Family Dual Column Electromechanical Universal Test Machines are configured to your application at an affordable price to match your budget. The 120 Family performs quasi-static tests including tensile, compression, creep and stress relaxation. This system is the best for testing at lower forces up to 1.1 kN (250 lbf) in repetitive test applications. The dual column design provides increased space between columns for testing large samples or inside chambers. With the TestResources unique modular design, load frames can be configured to your test specimen height and width requirements up to 40 in. in width.
140 Family Dual Column (Aluminum)
Feature: Increased column spacing
Force: 4.4 kN (1000 lbf) to 9 kN (2000 lbf)
- Load frame space for environmental chambers
- Ideal for tensile, compression, shear, flexural, peel and tear tests
- Commonly used for materials and product tests
140 Family Smooth Column Electromechanical Universal Test Machines are configured to your application at an affordable price to match your budget. The 140 Family provides increased column spacing for large samples and is capable of testing tensile, compression, creep and stress relaxation properties. The 140 Family differs from the 120 Family with a smooth column design and a powerful force capacity, testing at loads up to 9 kN (2000 lbf). With the TestResources unique modular design, load frames and adjustable crossheads can be configured to your test specimen height and width requirements up to 36 in. in width.

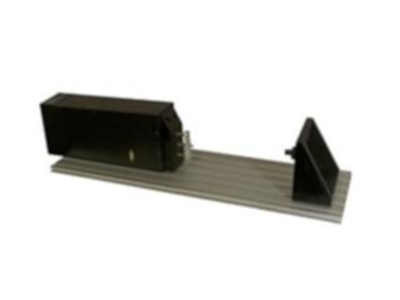

150 Family Horizontal Electromechanical Universal Test Machines
Feature: Horizontal test table
Force: 1.1 kN (250 lbf) to 4.4 kN (1000 lbf)
- Environmental bathes that require horizontal placement
- Tensile, compression, shear, flexural, peel, and tear tests
- Materials and product tests
- Destructive and proof load tests
150 Family Horizontal Electromechanical Universal Test Machines are configured to your application at an affordable price to match your budget. The 150 Family is mounted on a horizontal test table capable of testing tensile, compression, creep and stress relaxation properties. The horizontal table design gives users increased space for fixturing, alternate methods for testing small or unique samples, and is commonly used for testing in biomedical baths. Movable 90° reaction brackets enable adjustable test space and attachment of components, sensors or the test specimen to the mounting baseplate.
Step 2: Select Your Controller Software
Choose From 190+ Pre-configured Software Solutions
Pre-configured solutions meet customer specifications and budget for a wide range of test applications. Industry standard-specific software modules, enhanced features and custom calculations are just a few of the options to choose from with Newton.
Step 3: Select Your Accessories
Choose From 1,000's of Accessories
Choose from a wide variety of test accessories for a wide variety of purposes. These accessories include grips, environmental chambers, transducers, and sample preparation items. With these accessories, you can have confidence that your specimens will be tested consistently, correctly, and will yield ideal results.
Step 4: Contact Us
Ready to configure your test machine?
Contact us to confirm your configuration, request prices, and place your order.
