PRODUCT INFORMATION
| Model# | G175 |
|---|---|
| Force | 10 kN (2,250 lbf) 20 kN (4,500 lbf) 50 kN (11,250 lbf) 100 kN (22,500 lbf) |
| Thickness | 16 mm (0.62 in) 20 mm (0.8 in) 22 mm (0.86 in) 33 mm (1.3 in) |
| Sample Width | 40 mm (1.4 in) 60 mm (2.4 in) 100 mm (4 in) |

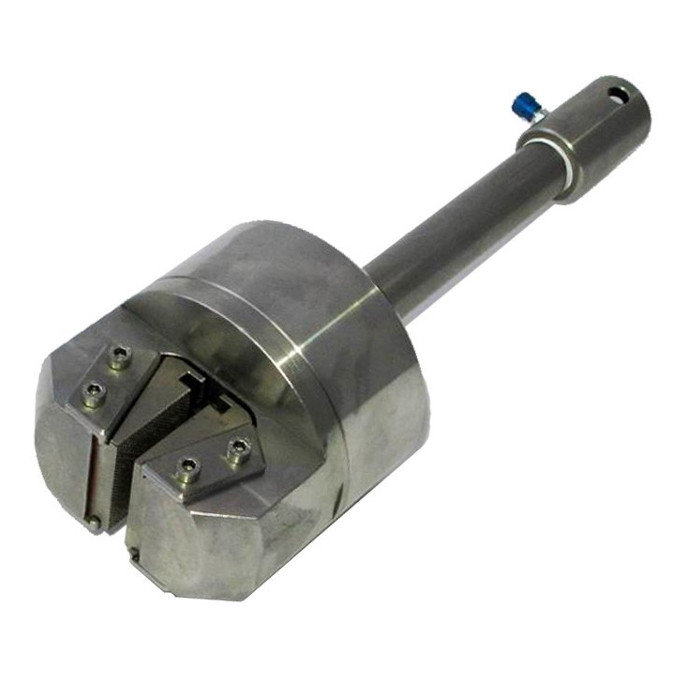

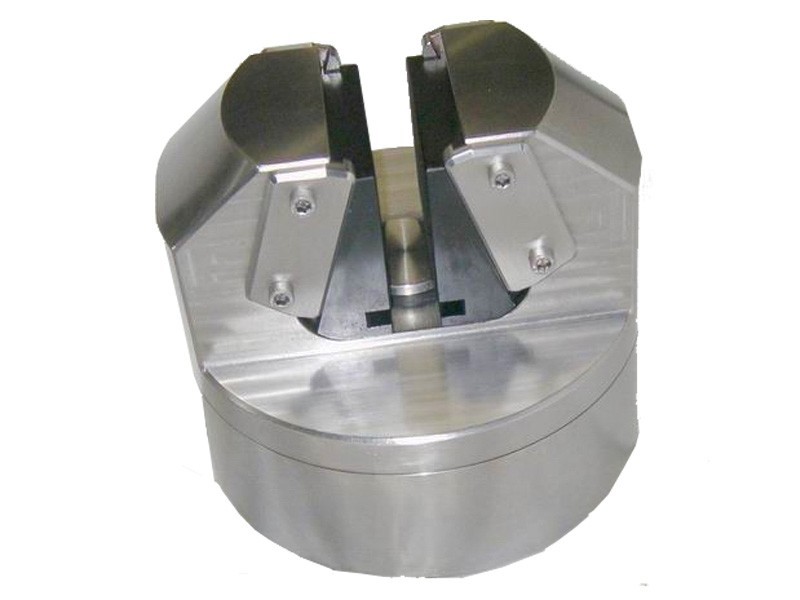

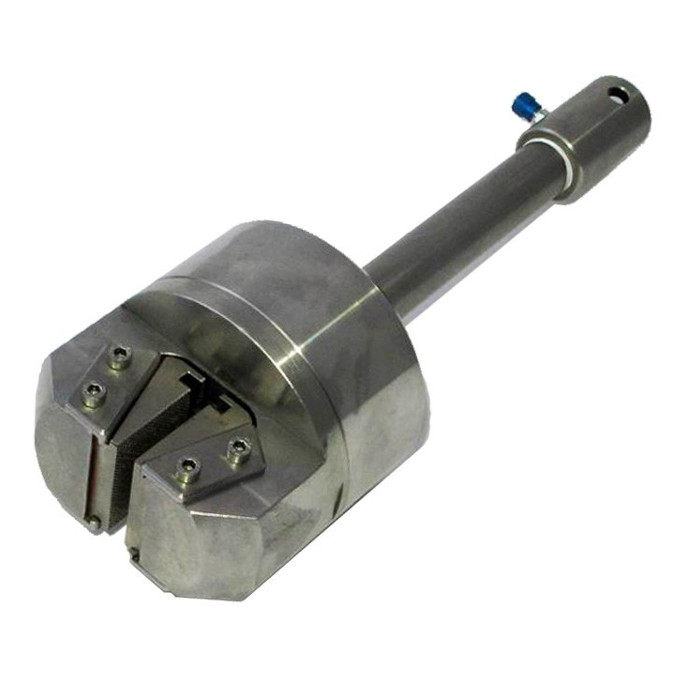

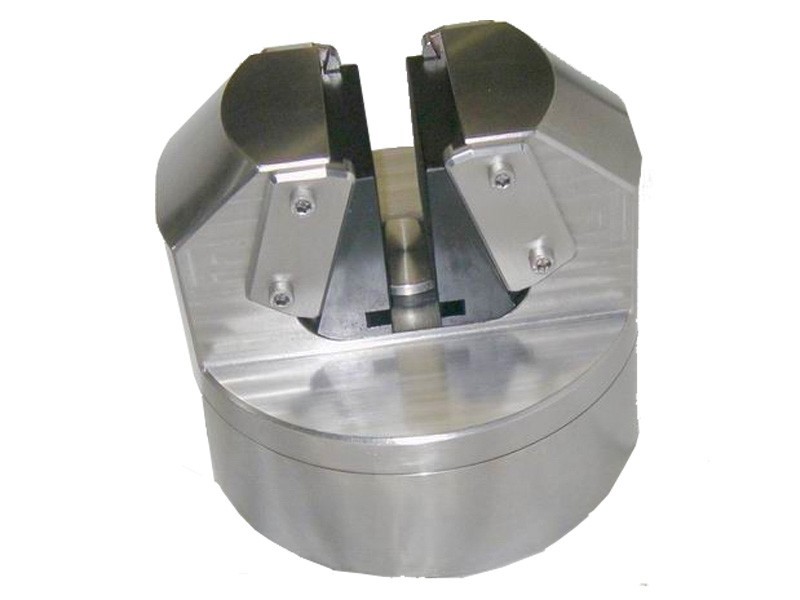

G175 Pneumatic wedge action grips include wedge jaws that are moved by a pneumatic piston centered above them. The dual acting wedge jaws move simultaneously to the grip centerline, ensuring correct specimen alignment, removing bending strains that invalidate test results. They perform static tension tests and tension. They are not capable of through zero/reverse stress or fatigue tests. G175 grips test round and flat samples of elastomers and plastics including rigid and semi-rigid films and sheets. These grips save time by offering quick and easy sample insertion. They feature constant clamp loading that protects samples from slipping as they stretch. G175 grips are configurable to handle high and low temperatures and environmental chambers. Adapters, Push
Note: Optional adapters or mechanical connections available for all test machines.
