SunRay는 컴팩트한 고출력 UV 플러드 경화 시스템입니다. 모든 시스템 구성 요소는 케이블 연결이나 원격 전원 박스가 거의 필요하지 않고 옵션인 Stand & Shield, 또는 공정 시설 어디에나 간단하게 장착할 수 있는 소형 램프 헤드에 연동됩니다.
헤드 장착, 전원 코드 연결, 경화 시작!
수명이 긴 400W 또는 600W arc lamp와 parabolic reflector는 균일하게 분포된 UV 로 8 "x 6" 경화 면적을 조사합니다. Arc lamp는 최신 기술의 UV Power-Plus 램프 드라이버로 구동됩니다. 본 시스템의 대형 버전은 SunRay Quad를 참고하세요. 헤드에는 편리한 운반 손잡이와 높이 조절 슬라이딩 브래킷이 있습니다.
- 175 mW/cm2 Intensity @ 3"
- 8" x 6" curing area
- Solid-state / Constant Power
- Compatible with UV Conveyor 40
- Standby Power Switch
- Optional UV Shield & Mounting Stand
Product Summary
The SunRay is a compact, high-power UV flood curing system. All system components are integrated into a small lamp head which can be easily mounted on the optional Stand & Shield, or anywhere on a factory floor, with virtually no cabling or remote power boxes required. Just mount the head, connect the AC line cord, and start curing! The long life 400 or 600 watt arc lamp and parabolic reflector illuminate an 8" x 6" curing area with evenly distributed UV light. The arc lamp is powered by the state of the art UV Power-Plus Lamp Driver. For a larger version of this system, see the SunRay Quad. The head features a convenient carrying handle and sliding height adjustment bracket.
Auto-Range AC Line Input
The Auto-Ranging 90-132 / 180-265 VAC line input makes the SunRay easy to use in any country, with no wiring changes or voltage select switching required.
Lamp Power Regulation
The system’s switch mode power supply maintains constant lamp power regardless of variations in AC line input or lamp voltages. This regulation provides for repeatable curing times and longer lamp life.
Standby Mode
The unit features a standby mode rocker switch, which reduces lamp power when the system is idling. This mode can be used to reduce heat and stray UV light output while the system is not in use.
Elapsed Hour-meter
A front panel hour meter tracks lamp age, allowing for consistent lamp replacement scheduling.
External Logic Signal Interface
The system can be remotely monitored and controlled using logic signals available at a 15 pin D-sub connector on the unit’s rear panel. The following signal types are available:
- Lamp standby control input for variable PWM control or for minimizing of lamp intensity during idle periods.
- Hour meter reset input for zeroing hours after lamp replacement.
- 24VDC @ 1 Amp output for powering external fans, relays, solenoids or motors.
Lamp off command input and lamp ignited status output signals are available as special order.
Forced Air Cooling
Baffled fan cooling directs air to critical system components, ensuring cool operation and high system reliability.
Optional Lamp Spectrums
The SunRay is available with UVA, UVB & visible spectrum lamps for the 400W & 600W systems, ensuring compatibility with adhesives and coatings from all manufacturers.
Mounting Options
Mounting options include (1) the Stand & Shield, an economical adjustable-height mounting stand and wrap-around UV shield, (2) the Rayven, a fully enclosed curing chamber with door interlock and adjustable shelf, and (3) the UV Conveyor 40 for conveyor curing applications.
Specifications
|
System Type |
Parabolic Flood Curing System |
|
|---|---|---|
|
Part # |
UV0446 |
UV0830 |
|
Lamp Power |
400W |
600W |
|
Input Voltage |
100-120 / 200-240 VAC ±10% (auto-ranging) |
|
|
Input Current (Max) |
7.0/3.5 Amps |
10.0/5.0 Amps |
|
Irradiance @ 3" |
115 mW/cm2 UVA, typical |
175 mW/cm2 UVA, typical |
|
Curing Area |
8" x 6" |
|
|
Weight |
11 lbs. |
|
|
Size (L x W x H) |
11” x 10” x 9” |
|
System Part Numbers
| Part No. | Item | Details | Ordering |
|---|---|---|---|
| UV0446 | SunRay 400 Lamp Head, 120/240VAC, 50/60Hz | Includes 400W UVA enhanced arc lamp, UV/IR protective glasses, power cord and manual | |
| UV0830 | SunRay 600 Lamp Head, 120/240VAC, 50/60Hz | Includes 600W UVA enhanced arc lamp, UV/IR protective glasses, power cord and manual | |
Accessories Part Numbers
| Part No. | Item | Details |
|---|---|---|
| UV0454 | Adjustable Height Flood Stand | Used with SunRay for bench top batch curing |
| UV0455 | Wrap-around UV Shield | Provides basic UV shielding (used with UV454) |
| UV1094 | Rear UV Shield | Supplemental rear protection for blocking low level backside UV light for applications where complete shielding is desirable (used with UV454 & 455) |
| UV2128 | Flood Filter Glass | Replacement filter glass for SunRay and IntelliRay floods. Filters shortwave and infrared wavelengths |
| UV2676 | Dichroic Flood Filter Glass | Optional dichroic filter glass for SunRay and IntelliRay floods. Passes shortwave and infrared wavelengths |
| (Multiple) | Power Cords | Multiple types available |
| (Multiple) | UV Curing Tray | Stainless steel non-stick surface |
| UV1450 | Uvicure Plus II Integrating Radiometer | UVA, UVB or Visible ranges, 10-10,000mW/cm2 |
| UV0495 | UV/IR Protective Safety Glasses | OTG (fit over prescription eyewear), 3.0 shade |
| UV02231 | UV/IR Protective Safety Glasses | Sport contour, 3.0 shade |
| UV01889 | UV Protective Face Shield | Lift-up face shield ideal for maximum UV/Visible light protection, 4.0 shade |
| UV00503 | SunRay 400 Instruction Manual | Usage and maintainence info for SunRay 400 System |
| UV00884 | SunRay 600 Instruction Manual | Usage and maintainence info for SunRay 600 System |
Replacement Lamp Part Numbers
| Part No. | Item | Details |
|---|---|---|
| UV0320 | UVA Metal Halide Lamp | 400W medium pressure |
| UV0544 | UVB Enhanced Lamp | 400W medium pressure |
| UV0489 | Visible Metal Halide Lamp | 400W medium pressure, 420nm |
| UV0545 | Visible Metal Halide Lamp | 400W medium pressure, 460nm |
| UV0834 | UVA Metal Halide Lamp | 600W medium pressure |
| UV1884 | UVB Enhanced Lamp | 600W medium pressure |
| UV1074 | Visible Metal Halide Lamp | 600W medium pressure, 420nm |
SunRay Brochure

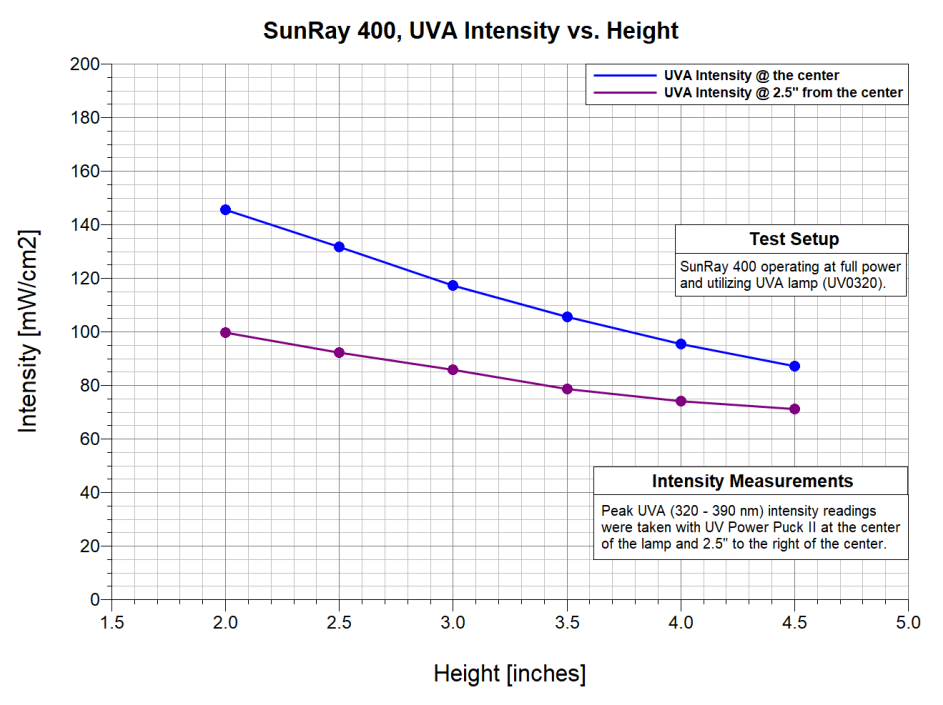

400W Lamp Spectral Distributions
