SunRay Quad는 대면적 UV 플러드 경화 시스템입니다. 모든 시스템 구성 요소가 케이블이나 원격 전원 박스가 거의 필요하지 않고옵션인 Rayven Quad 벤치 탑 경화 챔버 또는 공공 시설 어느 곳에나 간단히 장착 할 수 있는 single unit으로 통합되어 있습니다. 램프 헤드 장착, 전원 코드 연결, 설정된 시간으로 경화 시작!
수명이 긴 4 개의 arc lamp와 parabolic reflector는 균일하게 분포되는 UV 로 16 x 12 인치 경화 면적을 조사합니다. 아크 램프는 최신 기술의 UV Power-Plus 램프 드라이버로 구동됩니다. 본 시스템의 컴팩트 버전은 SunRay를 참조하세요.
- Large 16" x 12" curing area (4x larger than standard SunRay)
- 110 mW/cm2 Intensity @ 4"
- 4 long-life arc lamps with parabolic reflectors
- Solid-state / Constant power
- Standby Power Switch
- Optional shielded benchtop curing chamber
Product Summary
The SunRay Quad is a large-area UV flood curing system. All system components are integrated into a single unit that can be easily mounted on the optional Rayven Quad benchtop curing chamber or anywhere on a factory floor, with virtually no cabling or remote power boxes required. Just mount the lamp head, connect the AC line cord, and start timed exposure curing! The 4 long-life arc lamps and parabolic reflectors illuminate an 16 x 12 inch curing area with evenly distributed UV light. The arc lamps are powered by the state of the art UV Power-Plus Lamp Driver. For a compact version of this system, see the SunRay.
Lamp Power Regulation
The system’s switch mode power supply maintains constant lamp power regardless of variations in AC line input or lamp voltages. This regulation provides for repeatable curing times and longer lamp life.
Standby Mode
The unit features a standby mode rocker switch, which reduces lamp power when the system is idling. This mode can be used to reduce heat and stray UV light output while the system is not in use.
Front Panel Display & Indicators
A front panel hour meter tracks lamp age, allowing for consistent lamp replacement scheduling. Lamp Fault & System Power-on LEDs provide system status information.
External Logic Signal Interface
The system can be remotely monitored and controlled using logic signals available at a D-sub connector on the unit’s rear panel. Available signal types are:
- Lamp standby input for variable PWM control of lamp intensity, or for minimizing of lamp power during idle periods
- Lamp-out indicator, activates if any lamp has extinguished
- Hour meter reset input for zeroing hours display after lamp replacement
- 24VDC @ 2 Amp output for powering external fans, relays, solenoids or motors
Forced Air Cooling
Variable speed cooling fans with removable filters direct air to critical system components, ensuring cool operation and high system reliability.

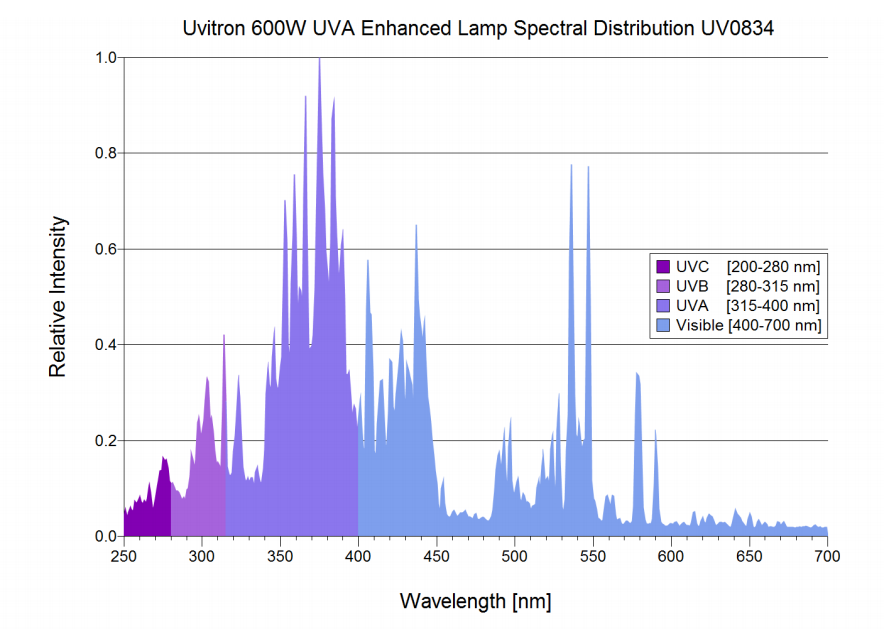

Optional Lamp Spectrums
The SunRay Quad is available with UVA, UVB & visible spectrum lamps ensuring compatibility with adhesives and coatings from all manufacturers.

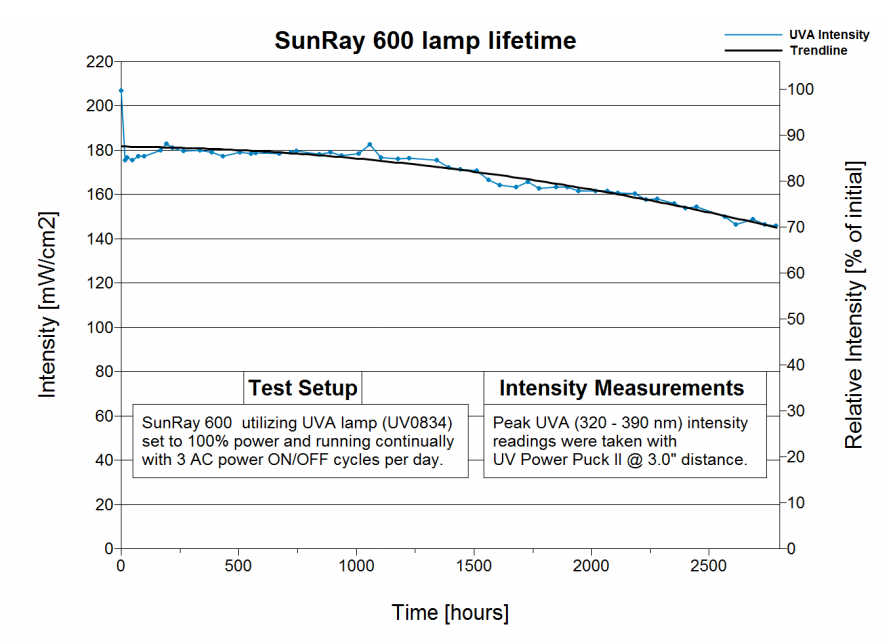

Best-in-Class Lamp Life
The enhanced lamp life of the system rivals even microwave and LED systems, significantly lowering operating and maintenance costs.
Specifications
|
System Type |
Parabolic Flood Curing System |
|---|---|
|
Part # |
UV2842 |
|
Lamp Power |
2400W (4 x 600W) |
|
Input Voltage |
200-240 VAC ±10% |
|
Input Current (Max) |
16 Amps |
|
Irradiance @ 4" |
110 mW/cm2 UVA, typical |
|
Curing Area |
16" x 12" |
|
Size (L x W x H) & Weight |
17.45” x 23” x 7.75”, 24.5 lbs |
System Part Numbers
| Part No. | Item | Details | Ordering |
|---|---|---|---|
| UV2842 | SunRay Quad, 240VAC, 50/60Hz | Includes 4x 600W UVA enhanced arc lamps, UV/IR protective glasses, power cord and manual | |
Accessories Part Numbers
| Part No. | Item | Details |
|---|---|---|
| UV2875 | Rayven Quad | Shielded Curing Chamber w/ shutter door interlock |
| UV2605 | Quad Flood Filter Glass | Replacement filter glass for SunRay and IntelliRay Quad floods. Filters shortwave and infrared wavelengths |
| UV0526 | Logic Remote Interface Cable | Control from PLC or digital logic |
| (Multiple) | Power cords | Multiple types available |
| (Multiple) | UV Curing Tray | Stainless steel non-stick surface |
| UV1450-xx | Uvicure Plus II Integrating Radiometer | UVA, UVB or Visible ranges, 10-10,000mW/cm2 |
| UV0495 | UV/IR Protective Safety Glasses | OTG (fit over prescription eyewear), 3.0 shade |
| UV02231 | UV/IR Protective Safety Glasses | Sport contour, 3.0 shade |
| UV01889 | UV Protective Face Shield | Lift-up face shield ideal for maximum UV/Visible light protection, 4.0 shade |
| Replacement Lamps: | ||
| UV0834 | UVA Metal Halide Lamp | 600W medium pressure |
| UV1884 | UVB Enhanced Lamp | 600W medium pressure |
| UV1074 | Visible Metal Halide Lamp | 600W medium pressure, 420nm |
SunRay Quad Brochure
