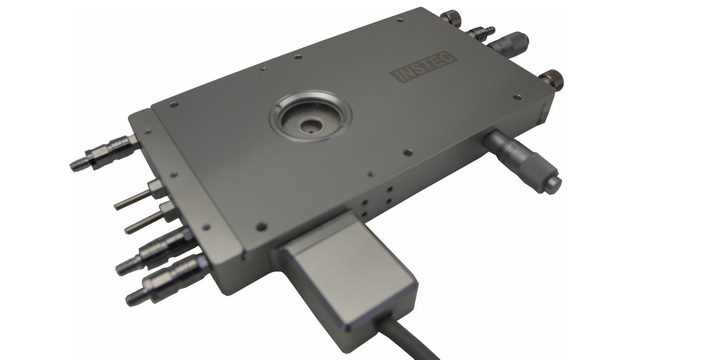

HCS601GXY-IRM Heating & Cooling Stage

Thermal Properties Analyzer

Thermal conductivity (Lambda), Ash fusion, Thermal screening

Microscopic Hot/Cold Stage, Wafer chuck, Thermal plate, Thermal probe station

Home > Products > 열물성분석기 (열전도도, 회융점, Tm, Hot/cold stage)

Heating & Cooling Stage

Temperature Control	mK2000 with programmable precision switching PID method
Thermal Block	Silver for superior thermal uniformity
Temperature Minimum	-190°C (with optional liquid N₂ cooling)
Temperature Maximum	600°C
Temperature Sensor	100 Ω Platinum RTD
Maximum Heating Rate	+200°C per minute at 100°C
Maximum Cooling Rate	-50°C per minute at 100°C
Minimum Heating and Cooling Rate	±0.01°C per minute
Temperature Resolution	0.01°C
Temperature Stability	±0.05°C (above 25°C), ±0.1°C (below 25°C)
Power Supply	Universal power input
Software	Windows software to record and export temperature-time data

Optical access	Reflection and transmission capability
Optical windows	Removable and exchangeable windows permit full-spectrum transparency
Minimum Objective Working Distance	10.5 mm
Minimum Condenser Working Distance	10 mm
Top Window	27 mm diameter
Top Viewing Angle	±57.5° from normal
Transmission Aperture	2 mm diameter
Bottom Window	27 mm diameter
Bottom Viewing Angle	±55.7° from normal
Window Defrost	Integrated external window defrost

Sample Area	24 mm x 24 mm
Chamber Height	6.5 mm without removable inner cover 2.5 mm with removable inner cover
Sample Access	Side-loading cover for quick sample access without refocusing instruments
Sample Positioning	10 mm fine travel with Vernier XY dials for remote manipulation in sealed chambers
Atmosphere Control	Sealed chamber with gas purging capability to control humidity, condensation, and oxidation
Frame Cooling	Integrated frame cooling via hose barb ports with optional chiller system
Mounting	Horizontal and vertical mounting capability
Frame Dimensions	180 mm x 100 mm x 20.5 mm
Weight	1200 g light-weight aluminum body

Instec, Inc. USA
