The Most Flexible & Lowest Cost Universal Test Machines

Texture Analyzer

The Most Flexible & Lowest Cost Universal Test Machines

100 시리즈 물성분석기는 최대 9kN (900kg)의 하중에서 인장 시험과 압축 시험에 이상적인 모듈형 저하중의 tabletop 시스템입니다. 이 시리즈에는 시험 항목에 따른 5 개의 로드 프레임, 4 개의 액추에이터, 컨트롤러 소프트웨어 및 로드 셀이 포함됩니다. 100 시리즈는 광범위한 테스트 시나리오에 사용할 수있는 조합이 많아 인기있는 품목입니다.

100 Series by Max Force		Actuator Capacity
Family	Max Force Max Speed	1.1 kN (250 lbf) 760 mm/min (30 ipm)	2.2 kN (500 lbf) 300 mm/min (12 ipm)	4.4 kN (1000 lbf) 200 mm/min (8 ipm)	9 kN (2000 lbf) 50 mm/min (2 ipm)
100	Single Column	✔	✔	✔
110	Cantilever (C Type)	✔	✔
120	Dual Column (Aluminum)	✔	✔
140	Dual Column (Steel)	✔	✔	✔	✔
150	Horizontal Table	✔	✔

Top Features for the 100 Series

Capable of tension, compression, bend, flexure, peel, shear, stress relaxation, and creep tests.
Choose controller software, load frame type, and actuator stroke/force/speed
Adjustable Test Space
Load accuracy 0.5% of indicated load
Up to 5,000 Hz data acquisition rate
Automatic transducer recognition
Digital position encoder with sub-micron resolution
Constant speed, constant load rate, position and load control
12 month warranty
Meets or exceeds national and international accuracy standards for materials testing systems

Compare the 100 Series by Application

Family	Common Applications	Common Standards
100	Adhesives, plastics, thin-film, foam, rubber, metals, wire, textiles, ceramics, composites, paper Tensile, compression, peel, flexural bend, shear, tear, stress relaxation, creep Medical devices, biological tissues, electronics, packaging, products & components	ASTM B571 Adhesion Metals Coating Test Equipment ASTM C158 Flexural Bend Testing for Glass ASTM C165 Compressive Test of Thermal Insulations ASTM D624 Tear Testing for Rubber and Elastomers ASTM D638 Tension Testing for Plastics ASTM D1002 Lap Shear Testing for Adhesively Bonded Metals ASTM D2979 Tack Adhesive Testing Machine ASTM D3330 - Peel Adhesion Pressure Sensitive Adhesive Tapes ASTM D3574 Testing Equipment for Flexible Cellular Urethane Foams ASTM D6862 90 Degree Peel Resistance Test Equipment for Adhesives And many more industry standards
110	Flexible foam Tensile, tear, compression, peel, Indentation force deflection (ILD and IFD) Automotive car seats, large low force test samples
120	Flexible foam Tensile, tear, compression, peel, Indentation force deflection (ILD and IFD) Automotive car seats, large low force test samples
140	Adhesives, plastics, thin-film, foam, rubber, metals, wire, textiles, ceramics, composites, paper Tensile, compression, peel, flexural bend, shear, tear, stress relaxation, creep Medical devices, biological tissues, electronics, packaging, products & components Environmental chambers
150	Adhesives, plastics, thin-film, foam, rubber, metals, wire, textiles, ceramics, composites, paper Tensile, compression, peel, flexural bend, shear, tear, stress relaxation, creep Medical devices, biological tissues, electronics, packaging, products & components

You Can Pick Your Universal Test Machine in 4 Easy Steps

First, select your frame and actuator^{(Step 1)} by family, then complete your system by selecting your controller software^{(Step 2)} and accessories^{(Step 3)}. Choose from a wide range of controller software packages, grips, fixtures, chambers, video extensometers and more, are all designed to perform thousands of ASTM, ISO, EN, DIN and JEDEC industry standard test methods.

When you're ready to complete your system, contact us^{(Step 4)}, and an application expert will help you optimize your system to your test requirements and budget.

Step 1: Select Your Frame

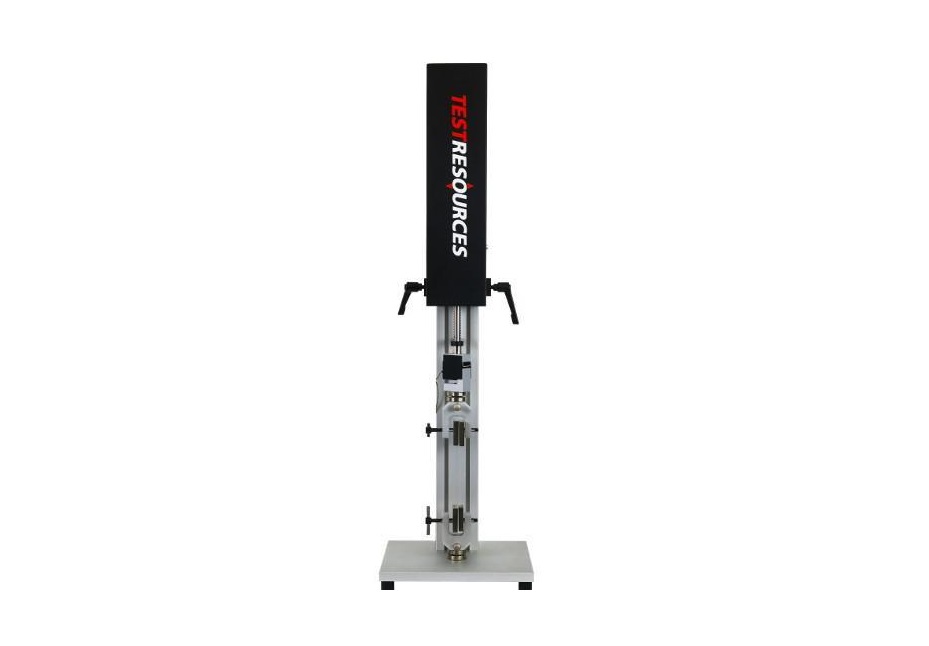

100 Family Electromechanical Universal Test Machines

Type: Electromechanical
Force: 1.1 kN (250 lbf) to 4.4 kN (1000 lbf)

Ideal for tensile, compression, shear, flexural, peel and tear tests
Commonly used for materials and product tests
Destructive and proof load tests
Quality control and research applications
Biomedical applications

100 Family Electromechanical Universal Test Machines are configured to your application at an affordable price to match your budget. With the TestResources unique modular design, the 100 Series performs quasi-static tests including tensile, compression, peel, tear, shear, friction, creep, stress relaxation and cyclic. This machine is best for testing lighter loads up to 4.4 kN (1000 lbf) and at speeds up to 760mm/min (30 in/min). The 100 Family is perfect for smaller samples that need elongation less than 300 mm (12 in).

110 Family Electromechanical Universal Test Machines

Speed: 625 mm/min (25 ipm)
Force: 1.1 kN (250 lbf) to 2.2 kN (500 lbf)

Large sample, low force test applications
Tensile, compression, shear, flexural, peel, and tear tests
Foam tests - Indentation Load Deflection (ILD and IFD)
Materials and product tests
Destructive and proof load tests

110 Family Electromechanical Universal Test Machines are configured to your application at an affordable price to match your budget. The 110 Family performs low force tests such as tensile, compression, peel-adhesion, flexural-bend, shear, tear, friction and cyclic. This system tests at loads up to 2.2 kN (500 lbf) and at speeds up to 30 ipm (760 mm/min). The 110 Family Single Column C-Type design provides double the space from the 100 Series for testing larger samples. The versatile frame works especially well for testing foam or other soft materials. With the TestResources unique modular design, load frames can be configured to your test specimen height and width requirements.

120 Family Dual Column Electromechanical Universal Test Machines

Feature: Increased test space
Force: 1.1 kN (250 lbf) to 2.2 kN (500 lbf)

Ideal for tensile, compression, shear, flexural, peel and tear tests
Commonly used for materials and product tests
Destructive and proof load tests
Foam tests - Indentation Load Deflection (ILD and IFD)
Large sample, low force test applications

120 Family Dual Column Electromechanical Universal Test Machines are configured to your application at an affordable price to match your budget. The 120 Family performs quasi-static tests including tensile, compression, creep and stress relaxation. This system is the best for testing at lower forces up to 1.1 kN (250 lbf) in repetitive test applications. The dual column design provides increased space between columns for testing large samples or inside chambers. With the TestResources unique modular design, load frames can be configured to your test specimen height and width requirements up to 40 in. in width.

140 Family Dual Column (Aluminum)

Feature: Increased column spacing
Force: 4.4 kN (1000 lbf) to 9 kN (2000 lbf)

Load frame space for environmental chambers
Ideal for tensile, compression, shear, flexural, peel and tear tests
Commonly used for materials and product tests

140 Family Smooth Column Electromechanical Universal Test Machines are configured to your application at an affordable price to match your budget. The 140 Family provides increased column spacing for large samples and is capable of testing tensile, compression, creep and stress relaxation properties. The 140 Family differs from the 120 Family with a smooth column design and a powerful force capacity, testing at loads up to 9 kN (2000 lbf). With the TestResources unique modular design, load frames and adjustable crossheads can be configured to your test specimen height and width requirements up to 36 in. in width.

150 Family Horizontal Electromechanical Universal Test Machines

Feature: Horizontal test table
Force: 1.1 kN (250 lbf) to 4.4 kN (1000 lbf)

Environmental bathes that require horizontal placement
Tensile, compression, shear, flexural, peel, and tear tests
Materials and product tests
Destructive and proof load tests

150 Family Horizontal Electromechanical Universal Test Machines are configured to your application at an affordable price to match your budget. The 150 Family is mounted on a horizontal test table capable of testing tensile, compression, creep and stress relaxation properties. The horizontal table design gives users increased space for fixturing, alternate methods for testing small or unique samples, and is commonly used for testing in biomedical baths. Movable 90° reaction brackets enable adjustable test space and attachment of components, sensors or the test specimen to the mounting baseplate.

Step 2: Select Your Controller Software

Choose From 190+ Pre-configured Software Solutions

Pre-configured solutions meet customer specifications and budget for a wide range of test applications. Industry standard-specific software modules, enhanced features and custom calculations are just a few of the options to choose from with Newton.

Shop Controller Software

Step 3: Select Your Accessories

Choose From 1,000's of Accessories

Choose from a wide variety of test accessories for a wide variety of purposes. These accessories include grips, environmental chambers, transducers, and sample preparation items. With these accessories, you can have confidence that your specimens will be tested consistently, correctly, and will yield ideal results.
