PRODUCT INFORMATION
| Model# | GD1781-115 |
|---|

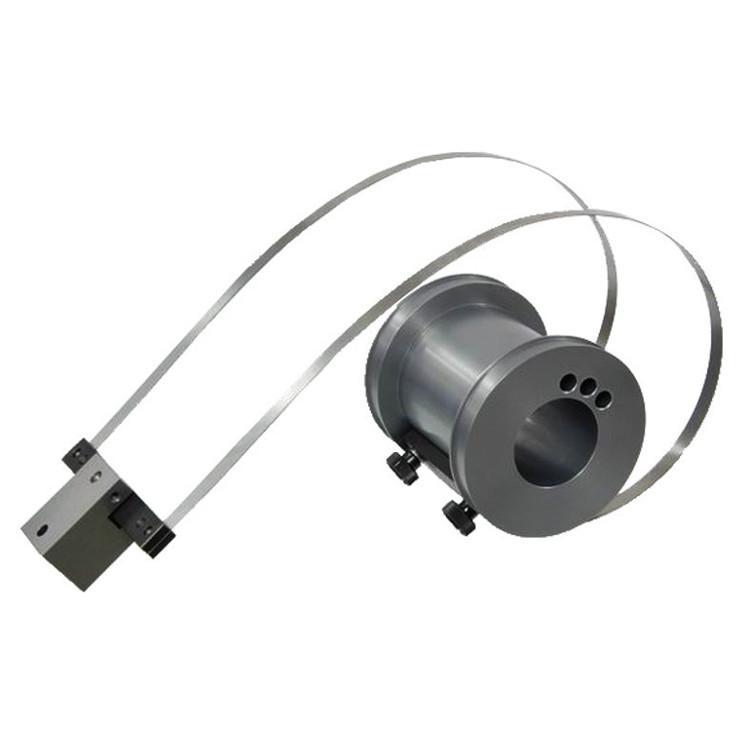

Drum Peel Test ASTM D1781 specifies test fixtures for determining the adhesive properties between a relatively flexible adherand and a stiff adherand. The GD1781-115 fixture meets these requirements. The fixture consists of a flanged drum, flexible loading straps, and specified clamps for holding the test specimen. The dimensions are per ASTM. Reference: ASTM Standard D1781, 2004, ASTM D1781, Standard Test Method for Climbing Drum Peel for Adhesives.
Drum Peel Test Device Requirements – ASTM D1781 specifies test fixtures for determining the adhesive properties between a relatively flexible adherand and a stiff adherand. The GD1781-115 fixture meets these requirements.
FEATURES & BENEFITS
- Made per ASTM D1781
- Adapters or couplers available to match your test machine
- Sample Width: 25 mm (1 in) for laminated assemblies, 76mm (3 in) for sandwich construction
- Sample Length: Min. 254 mm (10 in) for laminated assemblies, Min. 305 mm (12 in) for sandwich construction
- Models are available for EN 2243-3 and DIN 53295
