Self Tightening Spring Action Grips
G7 Series Tensile Eccentric Roller Grips
PRODUCT INFORMATION
| Model# | G7 |
|---|---|
| Force | 1 kN (225 lbf); 5 kN (1,125 lbf); 10 kN (2,250 lbf) |
| Thickness | 0 to 7 mm (0.28 in) or 8 mm (0.31 in) |
| Temperature | 0 to +70 deg C (32 to 158 deg F) |

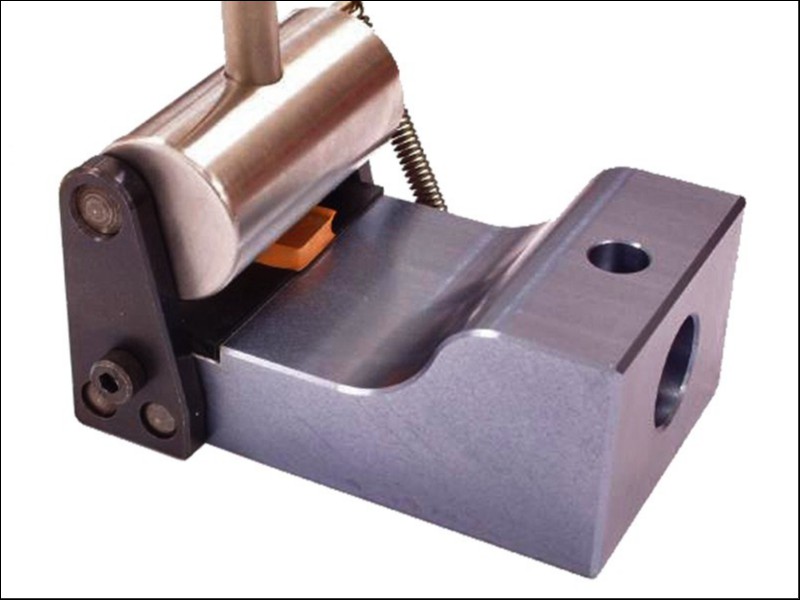

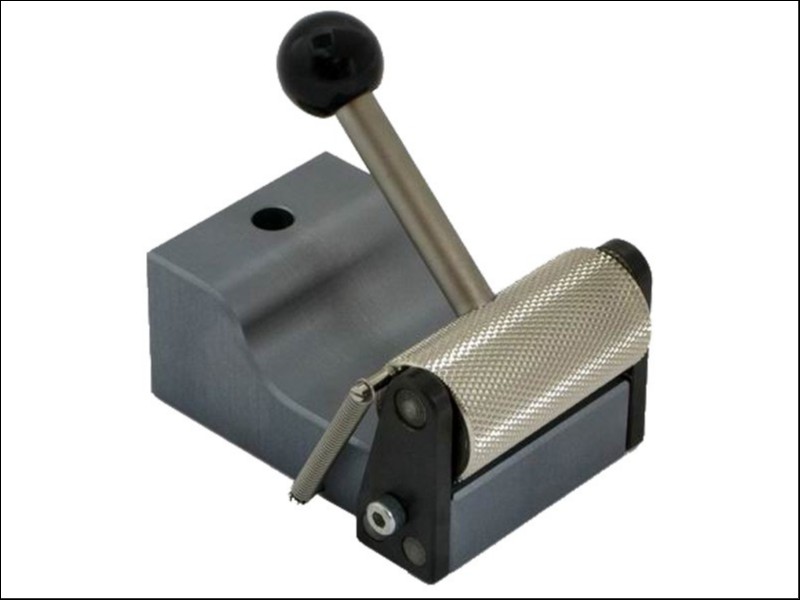

Eccentric roller grips feature a self-tightening clamp action ideal for flat samples of thin sheets, films, flexible plastics and elastomers that experience a large reduction in cross-section area under load. They provide positive non-slip gripping action and are quick and simple to use. The single lever, fast action makes sample insertion easy and the spring pressures of the roller bracket giving a positive non-slip action gripping force, sufficient to hold the material until a load is applied. The roller while under test prevents the specimen from creeping out of the grip as the load increases. See pdf for detailed specifications.
Note: Optional adapters or mechanical connections available for all test machines
