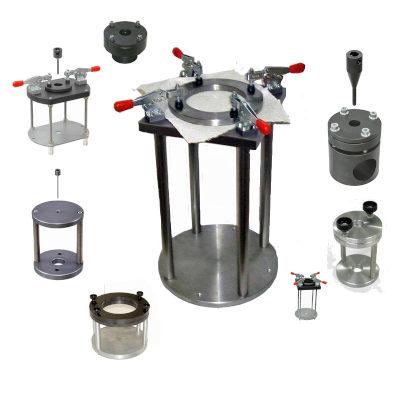

Burst / Puncture test fixtures
ASTM D3787 Puncture Fixture for Textiles | GD3787-453
PRODUCT INFORMATION
| Model# | GD3787-453 |
|---|
GD3787-453 ball burst attachment consists of a polished steel ball and a ring clamp mechanism used to conduct ball burst tests on textiles. When moved, the ring clamp is designed to push the fabric in the ring clamp against the steel ball. Per ASTM D3787, the diameter of the spherical, polished steel ball is 1 inch. The ring clamp has an inner diameter of 1.75 inches. Reference: ASTM Standard D3787 Standard Test Method for Bursting Strength of Textiles -- Constant-Rate-of-Traverse (CRT) Ball Burst Test, ASTM International, West Conshohocken, PA, 2007.
Note: Optional adapters or mechanical connections available
