IntelliRay Quad는 대면적의 프로그래머블 UV 플러드 경화 시스템입니다. 모든 시스템 구성 요소는 하나의 유닛으로 연동되어 있어서 케이블이나 원격 전원 박스가 거의 필요하지 않고 옵션인 Rayven Quad 벤치 탑 경화 챔버 또는 공정 시설 어느 곳에나 쉽게 장착할 수 있습니다. 헤드 장착,  전원 코드 연결,  설정된 시간 동안 경화  시작! 본 시스템에는 retractable shade type shutter가 포함되어 있어 반복적인 노출 시간 설정이 가능하고, UV로부터 사용자가 보호됩니다.

시스템의 LCD 디스플레이와 디지털 키패드를 이용해 경화 작업을 간단하게 프로그래밍하고 모니터링 할 수 있습니다. 수명이 긴 4개의 arc lamp 와 parabolic reflector는 균일하게 분포된 UV 로 16 x 12 인치의 경화 영역을 조사합니다. Arc lamp는 최신 기술의 UV Power-Plus 램프 드라이버로 구동됩니다. 헤드에는 편리한 운반 손잡이와 높이 조절 슬라이딩 브래킷이 있습니다. 이 시스템의 컴팩트 버전은 IntelliRay를 참고하세요.

• Large 16" x 12" curing area (4x larger than standard IntelliRay)
• 110 mW/cm² Intensity @ 4"
• User control of time & intensity / Remote control via PC or PLC
• 4 long-life arc lamps with integrated exposure shutter
• Solid-state / Constant power
• Optional shielded benchtop curing chamber

Product Summary

The IntelliRay Quad is a large area programmable UV flood curing system. All system components are integrated into a single unit that can be easily mounted on the optional Rayven Quad benchtop curing chamber, or anywhere on a factory floor, with virtually no cabling or remote power boxes required. Just mount the lamp head, connect the AC line cord, and start timed exposure curing! The system contains an integrated retractable shade type shutter, which allows for repeatable exposure timing, and shields the user from UV rays. The system’s LCD display and digital keypad make programming and monitoring of curing operations a snap. The 4 long-life arc lamps and parabolic reflectors illuminate a 16 x 12 inch curing area with evenly distributed UV light. The arc lamps are powered by the state of the art UV Power-Plus Lamp Driver. For a compact version of this system, see the IntelliRay.

System Timers

Duration of curing is controlled by a 1 to 9999 second or hour exposure timer that actuates the shutter. The exposure timer also has a user controlled manual mode, and a mode for use in long exposure applications such as artificial aging or solar panel testing.

Lamp Intensity Control

The system has a user adjustable intensity level. This feature provides the flexibility of choosing appropriate curing intensity for sensitive materials. Time, intensity as well as all other settings can be password protected.

Standby Mode

The unit automatically reduces lamp power when the shutter is closed. This reduces excessive heat and therefore increases life of system components, without the need to power down.

Status Indicators

Four front panel LEDs are provided: Lamp ready, system in standby mode, shutter open, and system alarm.

External Logic Signal Interface

The system can be remotely monitored and controlled using logic signals available at a 15 pin D-sub connector on the unit’s rear panel. The digital logic functions allow high speed control of the IntelliRay for applications requiring a direct interface with machine controllers or PLCs.

Remote Control via PC Serial Port

The system can also be remotely controlled via a RS232 / RS485 serial port. A Windows™ compatible graphical interface program allows all system functions to be exercised (see photo), and with RS485, multiple units can be networked.

Foot Pedal Control

An optional shutter control foot pedal is available for applications requiring hands-free operation. The pedal can be used in conjunction with the system's exposure timer, or in a manual mode in which the shutter remains open as long as the pedal is pressed.

Lamp Power Regulation

The system’s switch mode power supply maintains constant lamp power regardless of variations in AC line input or lamp voltages. The result is repeatable curing times throughout the life of the lamp.

Forced Air Cooling

Variable speed cooling fans with removable filters direct air to critical system components, insuring cool operation and high system reliability.

Optional Lamp Spectrums

The IntelliRay Quad is available with UVA, UVB & visible spectrum lamps, ensuring compatibility with adhesives and coatings from all manufacturers.

Best-in-Class Lamp Life

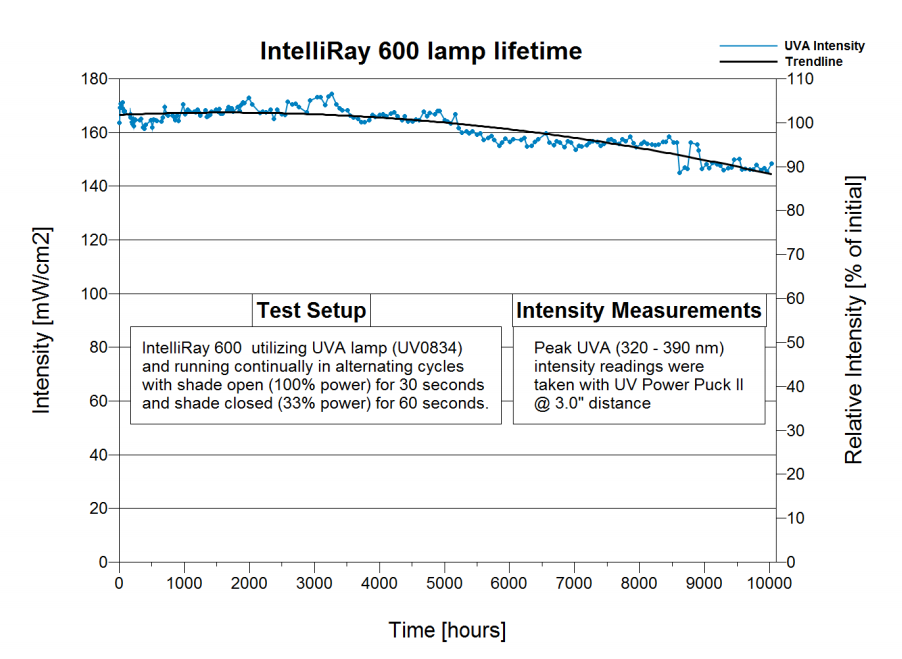

The enhanced lamp life of the system rivals even microwave and LED systems, significantly lowering operating and maintenance costs.
