XRF Overview
|
Model
|
 BP-9010A
WD-XRF, AL-BP-9010A
|
 AL-NP-5010A/B
ED-XRF for RoHS, AL-NP-5010A
|
 DF-2000 |
 DF-1000 ED-XRF, DF-1000
|
 DF-1000E ED-XRF, DF-1000E
|
|
|
Analysis principle
|
Wavelength Dispersion X-ray Fluorescence Spectrometer
|
Energy dispersive X-ray fluorescence analysis
|
Handheld Portable Fluorescence Spectrometer
|
Energy dispersive X-ray fluorescence analysis
|
Energy dispersive X-ray fluorescence analysis
|
|
|
Element measuring range
|
11Na ~ 92U
|
11Na ~ 92U
|
12Mg - 92U
|
11Na ~ 92U
|
11Na ~ 92U
|
|
|
Min. measuring limit
|
|
For RoHs Cd/Hg/Br/Cr/Pb ≤2 ppm
|
sense up to 99.9% in ppm content
|
|
sense up to 100% in ppm content
|
|
|
Sample
|
Sample size
|
40 mm x 10mm (H)
|
|
|
|
|
|
Sample shape
|
|
Arbitrary size, any irregular shape
|
|
|
|
|
|
Sample type
|
cement, glass, ceramic, ferrous, steel, nonferrous metals, sulfur, lead, chemical industry, mining, commodity inspection, quality inspection and biomechanical element
|
solids, powders, liquids
Plastic, metal, film, powder, liquid etc |
Iron, copper, cobalt, nickel, titanium, zinc, aluminum, etc.
|
solids, powders, liquids
|
solids, powders, liquids
|
|
|
Analysis area
|
max 35 mm2
|
Crystal area>15mm2
|
|
|
|
|
|
Exposure diameter
|
|
2, 5, 8mm
|
|
|
|
|
|
Observation
|
|
200 × color CCD camera
|
16 bit AD Converter,
3.5 Inch LCD Display
|
-12bit AD Converter
-19 Inch LCD Display
-More than 500 HD
-Multi-Functional Standard Keyboard
-Printer
|
-12bit AD Converter
-17 Inch LCD Display
-Pentium E5200 Computer
-Multi-Functional Standard Keyboard
-Printer
|
|
|
Analysis time
|
within two minutes
|
30-900 seconds
|
|
|
|
|
|
X ray tube
|
Target material
|
Rh
|
Mo
|
Rh
|
|
|
|
Tube voltage (out put)
|
|
5-50kV
|
50KV
|
0-50 kV
|
0-50 kV
|
|
|
Tube current (out put)
|
|
1-1000μA
|
200μA
|
0-1000μA (0-2500μA Selectable)
|
0-1000μA
|
|
|
Detector
|
Detector
|
Flow proportional detector, closed counter, scintillation counter.
|
Si-PIN or SDD detector,
|
SDD
|
SDD (Silicon Drift Detector)
|
SDD Detector
|
|
Detector resolution
|
|
<145eV
|
123ev
|
123ev, 133ev (50000CPS)
|
Si-Pin 145 ev, SDD 125 ev
|
|
|
High Voltage Generator
|
Stability(24H)
|
≤2%
|
0.05%/, 8h
|
0.2% 8h
|
0.05%, 8h
|
0.05%, 8h
|
|
|
|
Special HV generator for X fluorescence
|
|
|
|
|
|
Data processing system Multi-channel analyzer
|
12-route 2048- channel
|
2048channels
|
|
|
|
|
|
Filter
|
|
6 filters
|
|
|
|
|
|
Working environment
|
|
Temperature: 10 - 35℃, Humidity: 30 - 70%
|
Temperature: -10℃~ 40 ℃
Humidity: ≤80 %
|
|
Temperature: 5-30℃
Humidity: ≤80 %
|
|
|
Feature
|
- Automatic, remote diagnostics
- Benefits of a low-cost analysis process
- 10 analytical channels to measure multiple elements simultaneously
|
- The concentration of elements up to 100% can be measured directly without dilution.
- Fast measurement speed (30s to 900s)
- Available in RoHS standards
- Filter increase measurement accuracy
|
- Power supply support: Battery pack is used for 6 hours
- 3-megapixel high-definition camera for easy sample recording |
- Automatically inspect the 8 samples
- The front automatic instrument integration design is simple to operate.
- Vertical Chamber Design, precise controls to ensure superior repeatability and reproducibility,
|
- Detection method:
Standard curve method, theoretical coefficient method, basic parametric method, and multidisciplinary method, and software can directly derive new working curve with open software design. - The front automatic instrument integration design is simple to operate.
|
|

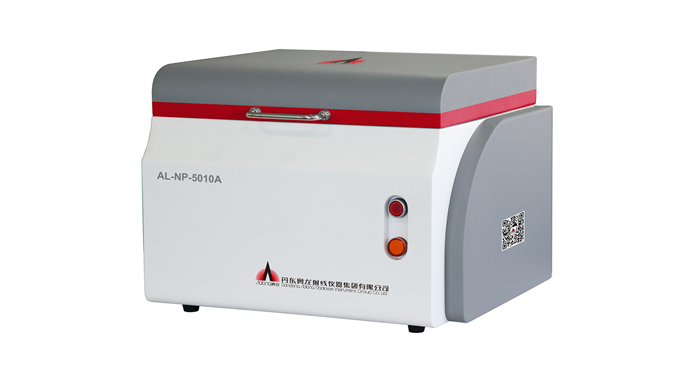

ED-XRF for RoHS, AL-NP-5010A |

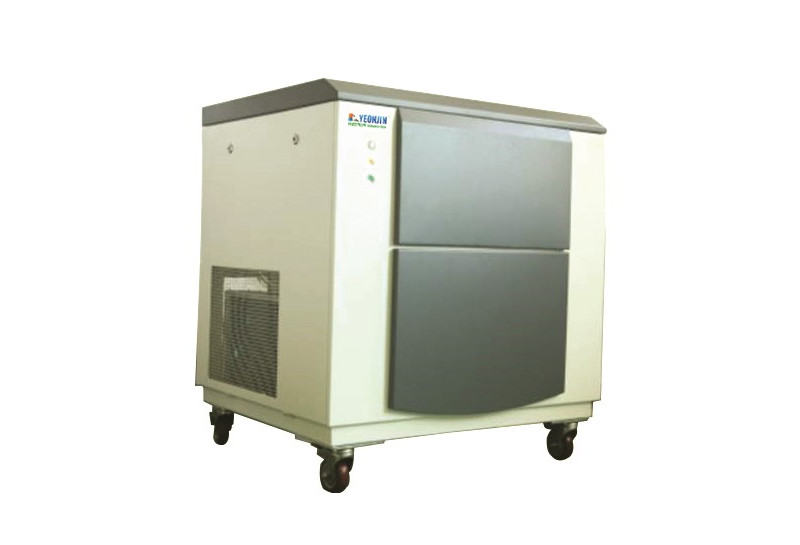

WD-XRF, AL-BP-9010A |

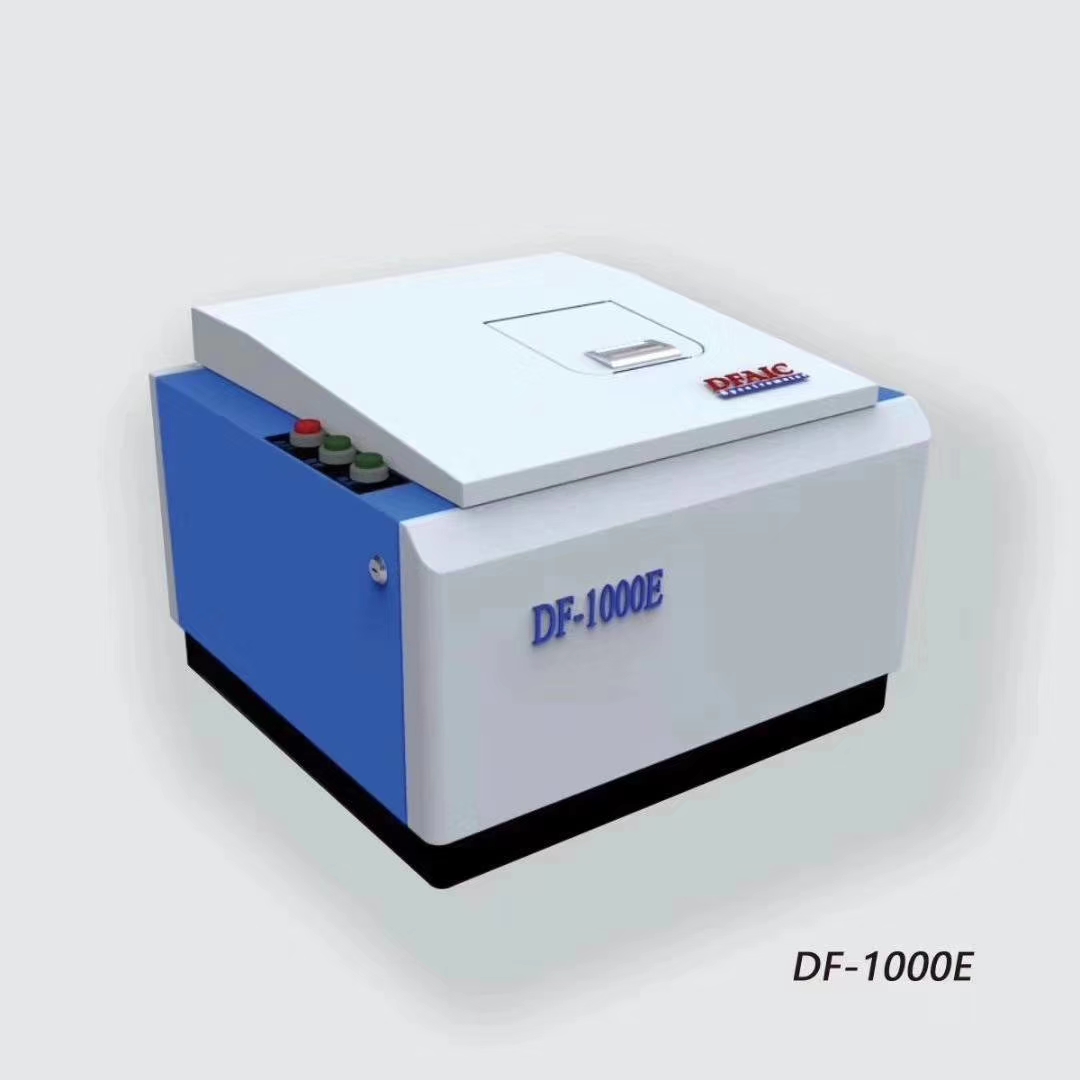

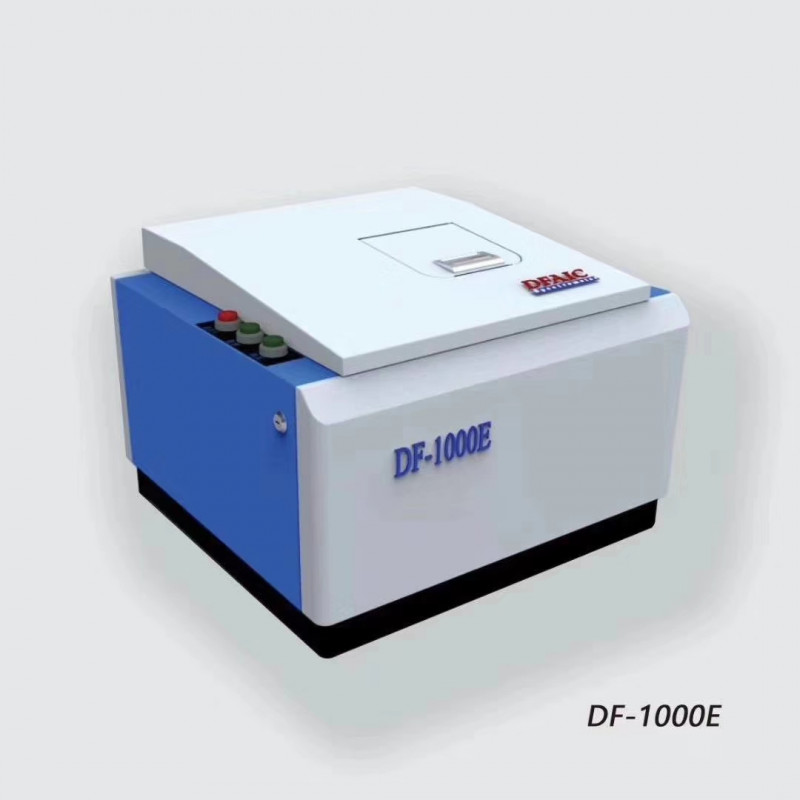

ED-XRF, DF-1000E |

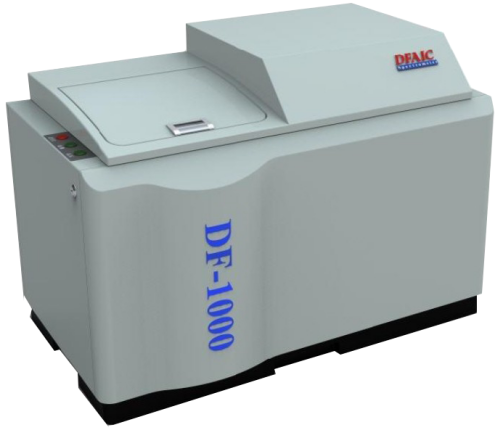

ED-XRF, DF-1000 |
|
|
|
|
| AL-NP-5010A는 기본적으로 RoHS 측정을 목적으로 설계되었으므로 샘플에서 유독하거나 유해한 요소 (Pb, Hg, Cd, Cr, BR)를 검출하는 데 적극 추천됩니다. 특히 AL-NP-5010A 모델은 검량선 곡선 (calibration curve)을 구하지 않아도 바로 사용할 수 있습니다. AL-NP-5010A 모델은 RoHS 측정에만 국한되지 않고 미네랄과 같은 다른 분야에도 적용될 수 있습니다. 차이점은 "검량선 커브"의 작성 유무입니다. 저희는 이를 "working zone 구축"이라고도 합니다. Working zone이 준비되면, 사용자는이를 통해 매우 정확한 측정을 하실 수 있습니다. | AL-BP-9010A 모델은 "파장 분산 (Wavelength Dispersion)"형이며, 구동과 측정 원리가 5010A와 다릅니다. AL-NP-5010A는 데스크탑 type인 반면, 본 모델 AL-BP-9010A는 floor type입니다. AL-BP-9010A을 응용하는 데 가장 적합한 분야는 시멘트 산업이며 석유, 유리, 비철 금속에도 적용될 수 있습니다. | DF-1000E에는 Light element를 검출하는 데 필요한 vacuum pumping unit이 포함되어 있습니다. Not ready for workzone of RoHS in it. Detecting range: Na to U |
DF-1000는 Vacuum pumping unit과 8-position sample changer가 포함하고 있으며, 경제적인 가격의 1000E보다 성능이 우수합니다.
Not ready for workzone of RoHS in it. Detecting range: F to U
|
당사의 XRF 모델, AL-NP-5010A는 Na에서 U까지를 검출 할 수 있지만 AL-BP-9010A는 Na에서 U까지 10 개의 원소를 검출 할 수 있으며 정밀도 (검출한계)가 매우 높습니다. 두 모델의 가격차이가 많으므로 저희 영업사원과 상담하세요. DF-1000은 High End 모델입니다.
