- Tabletop design with small footprint integrates with modern instruments and benches
- -190°C - 400°C (600°C option available, see HCP621G-MPS)
- Ø26 mm hexagonal thermal block (optional upgrade for larger sample area available)
- Sealed chamber with gas purging and/or vacuum capabilities
- 4+ independent electrical probes with remote mechanical positioning

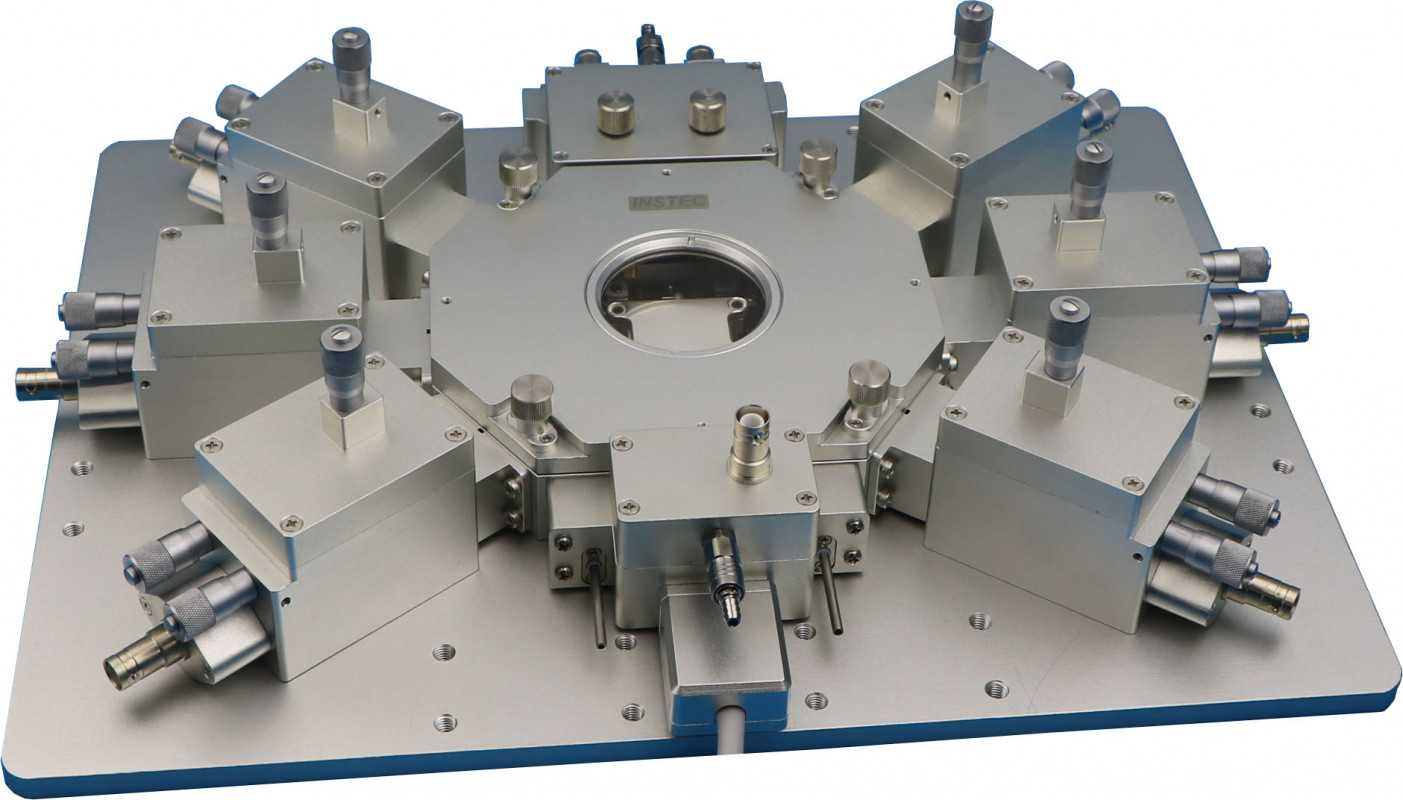

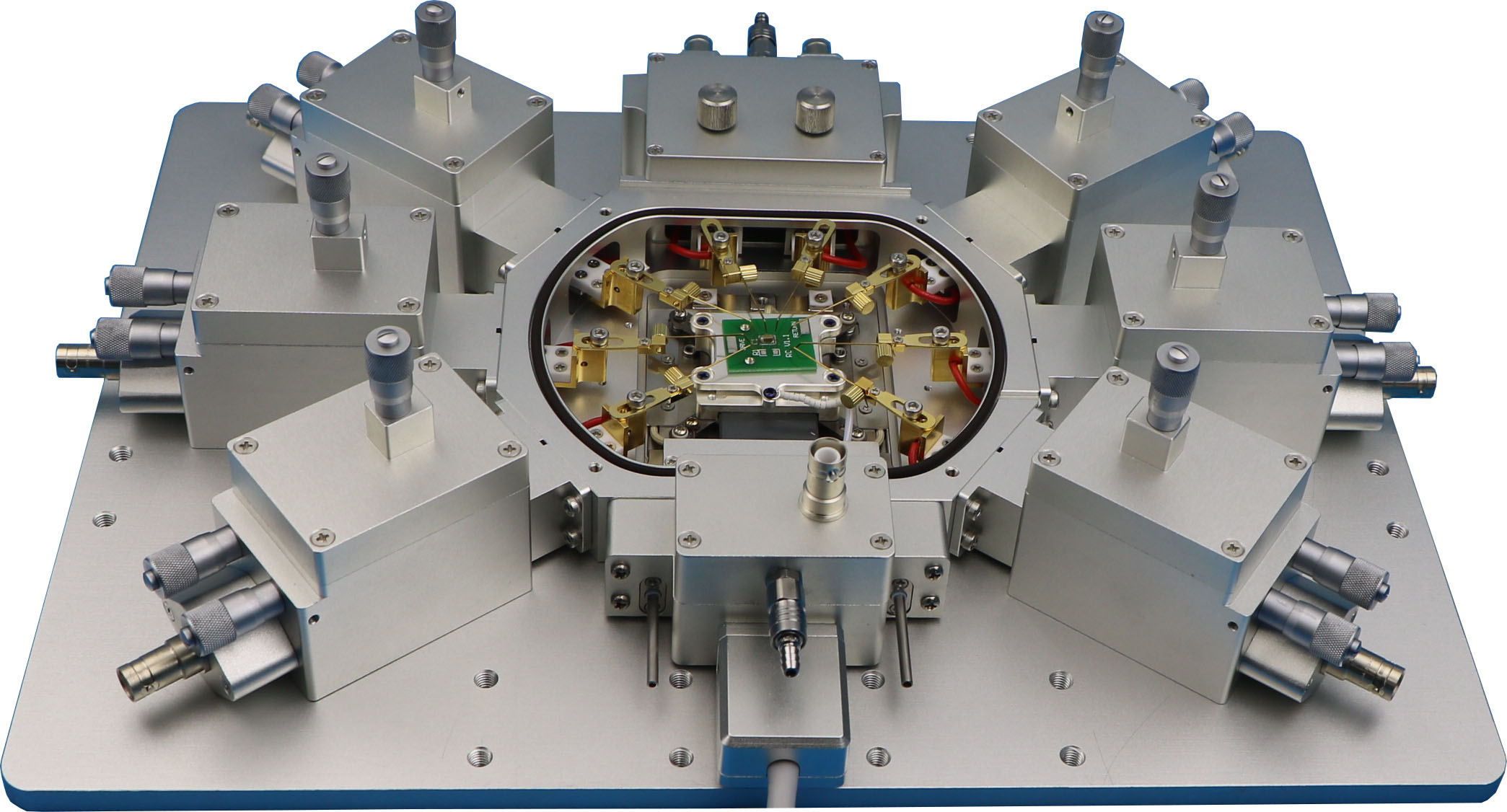

- Up to 6+ standard probers available (Ask about HCP421V-MPS6)

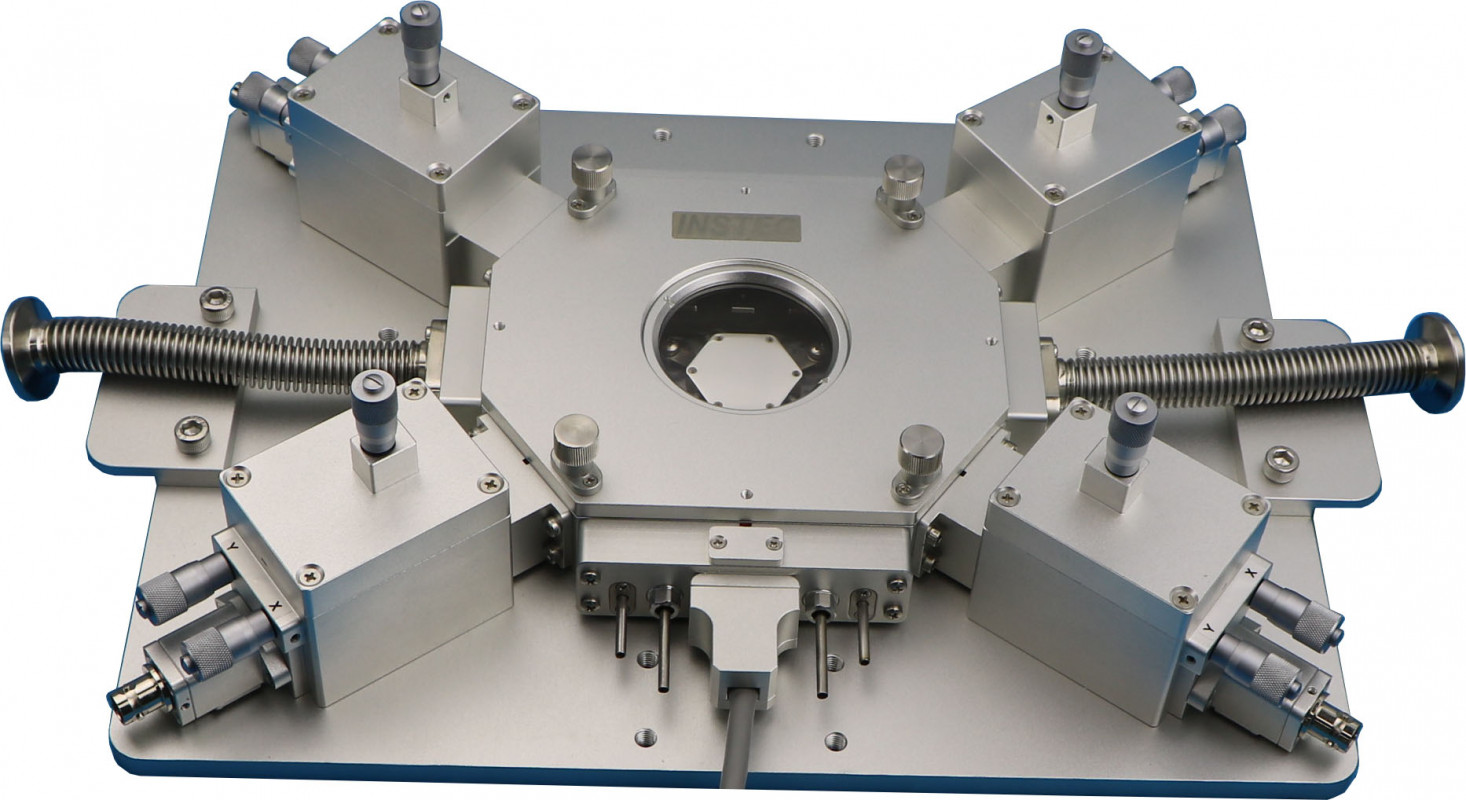

The HCP421V-MPS is a compact benchtop probing station with modular components that can be customized for nearly any

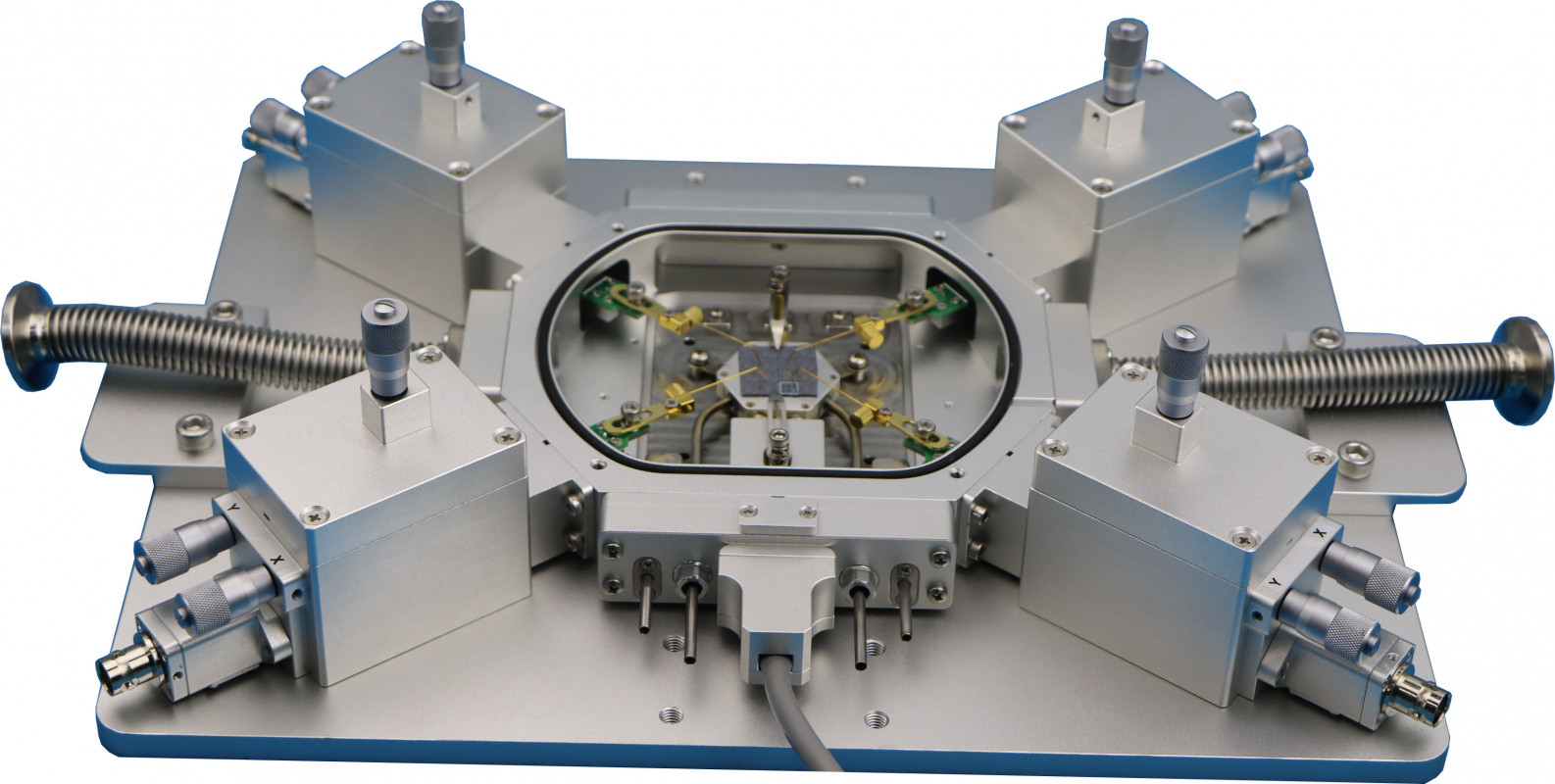

application. The base model includes a 421 heating and cooling core, capable of precision temperature control from -190°C to 400°C under vacuum or ambient conditions. 4 independent electrical probers are controlled via micrometer dials for XYZ prober control even when the chamber is sealed and under vacuum.

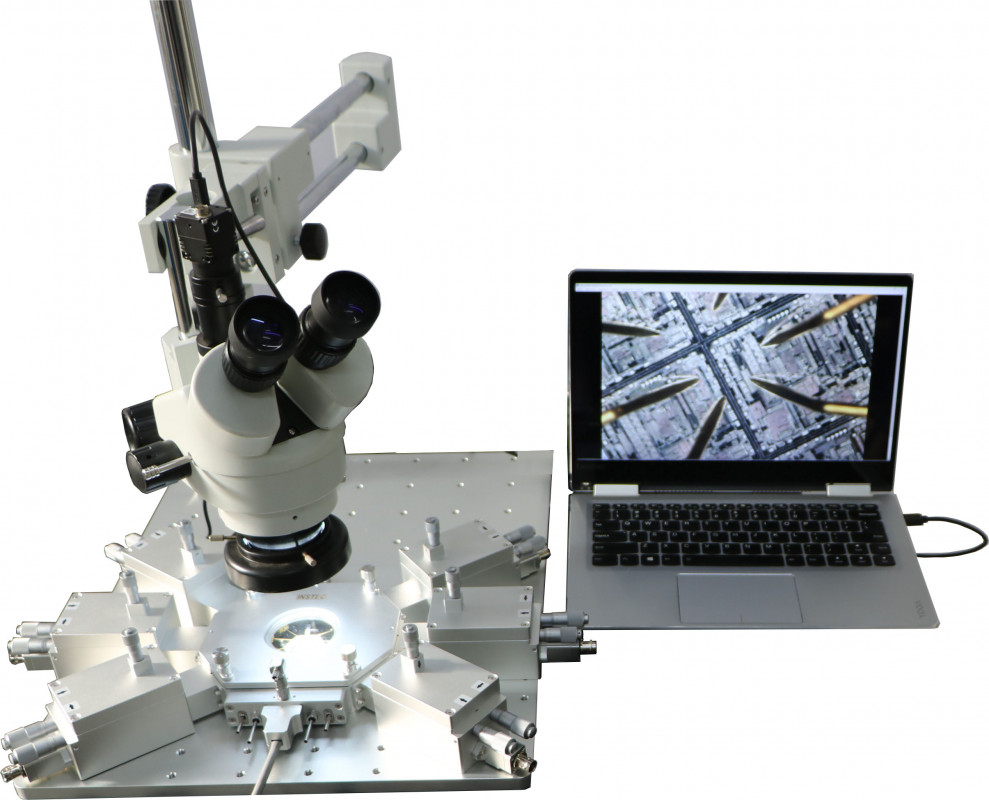

The 45mm diameter viewing aperture on the chamber lid provides excellent optical access of the entire sample area, and is comptatible with a wide range of optical analysis tools. The HCP421V-MPS can even be mounted directly to an upright microscope to add temperature control, atmospheric control and electrical probing capabilities into a single instrument.
[NEW] Choose between our new Elevated Sample -MPS probers or the traditional layout. The new Elevated Sample layout offers improved accessibility for sample loading, and better clearance for optical system such as tube or stereo microscopes.

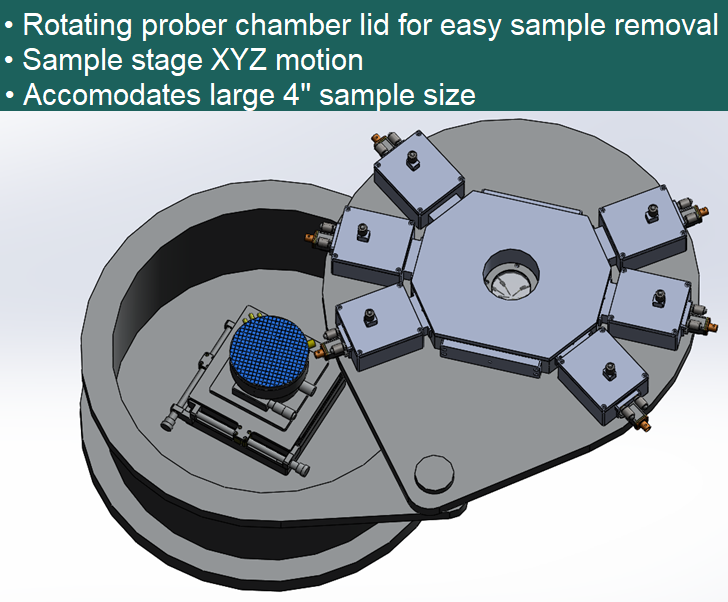

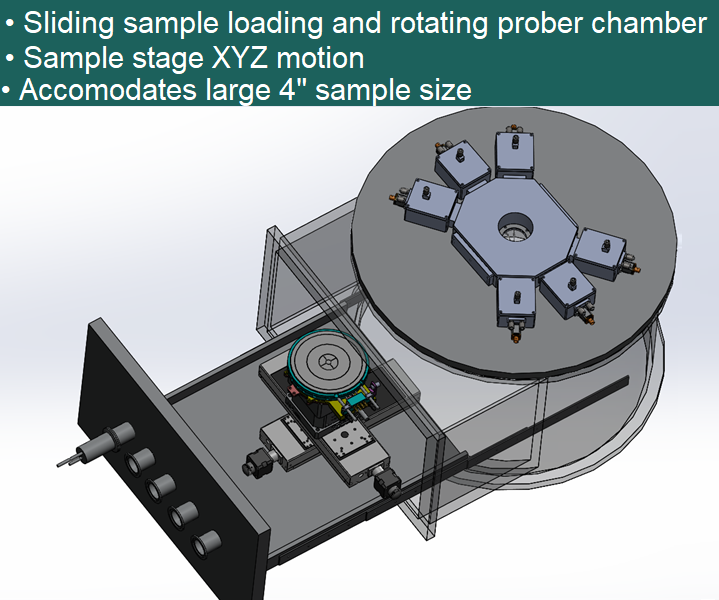

Upgrade to the HCP421V-MPS+ fully customizable model to add or remove probers, change electrical feedthrough types, add RF probers with rotational control, larger sample areas and more!
Note: All images and specifications are for reference only, and are subject to change at any time without notice. Always confirm final technical specifications with our sales team before placing an official order.
THERMAL FEATURES
|
Temperature Control |
mK2000 with programmable precision LVDC PID method to minimize electrical noise |
|
Thermal Block |
Silver |
|
Temperature Minimum |
-190°C (with optional liquid N2 cooling) |
|
Temperature Maximum |
400°C for vacuum version (600°C for gas tight version) |
|
Temperature Sensor |
100 Ω Platinum RTD |
|
Maximium Heating/ Cooling Rate |
±30°C/min *Up to +150°C/min available by request |
|
Minimum Heating/ Cooling rate |
±0.01°C/min |
|
Temperature Resolution |
0.01°C (RTD) |
|
Temperature Stability |
±0.05°C (>25°C), ±0.1°C (<25°C) |
| Power Supply | Universal power input - 200W max (not including LN2 system or water cooling accessory) |
|
Software |
Windows 10/11 software to record and export temperature-time data SCPI interface with programming SDK avialable |
OPTICAL FEATURES
|
Optical Access |
Reflection only (transmission option available with + model) |
|
Optical Windows |
Removable and exchangeable windows permit full-spectrum transparency Window options include Soda-lime, quartz (default), CaF2, etc... |
|
Minimum Objective Working Distance |
12 mm |
|
Top Aperture |
Ø45mm aperture with Ø50mm window |
|
Top Viewing Angle |
±50° from normal |
|
Window Defrost |
External window defrosting fixture |
STRUCTURAL FEATURES
|
Sample Area |
Ø26mm diameter inscribed hexagon (50mm x 50mm option available, contact us about the HCP402SV-MPS) |
|
Chamber Height |
8mm, maximium reccomended sample thickness of 3mm |
| Sample Access |
Quick-access cover with spring-loaded thumbscrew Optional sample clips available for improved thermal contact, or for vertical mounting |
|
Atmosphere Control |
Supports evacuation down to at least 9.9*10^-3 mBar Supports positive pressure gas purge up to +0.5 Bar to control humidity, condensation, and oxidation Includes 1x stainless steel vacuum bellows + 1x machinable aluminum blank by default. Secondary vacuum bellows available by request. |
| Mounting |
Horizontal or Vertical mounting capability. Base model includes tapped holes on frame and removable side-mounted L-Brackets. Horizontal mounting adaptors available for select instruments, or by custom design Baseplate for tube microscope available by request |
| Frame Cooling |
Integrated frame cooling with optional chiller system |
|
Frame Dimensions |
300 mm x 300 mm x 40 mm |
|
Weight |
4000g |
ELECTRICAL FEATURES
|
Electrical Probes |
Four (4) DC to 500MHz electrical probes (200V/1A Max) - Prober material options such as tungsten-rhenium, beryllium-copper, or other materials - 25um or 5um tip radius options - Additional standalone electrical feedthroughs available by request |
|
Probe Positioning |
XYZ micro positioners remotely manipulate probes within sealed sample chamber with >10um resolution. Ideal for pad sizes larger than 10 um x 10 um* *Smaller pad sizes require -PS series |
|
Connectors |
Coaxial BNC connectors for HCP421V-PM base-model (native SMA connectors with SMA to BNC adaptor pre-installed) Floating, triaxial or SMA connectors available with HCP421V-MPS+ model |
|
Sample Surface |
Electrically grounded sample area* (*Floating or triaxial options for back-biasing available with HCP421V-MPS+ customizable model) |
|
|
