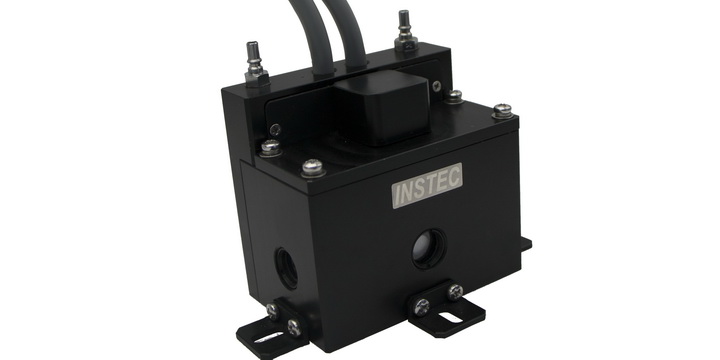

TS180-CUV Thermoelectric Stage
-
Specially designed for spectromemter or FTIR
-
Fits standard 12.5 mm x 12.5 mm cuvettes or smaller
-
-40°C - 180°C with thermoelectric heating and cooling
-
Designed for thermal control of liquid phase processes in standard cuvettes during spectrophotometry
Thermal Features
|
Temperature Control |
mK2000 with programmable precision switching PID method |
|---|---|
|
Thermal Block |
Black anodized aluminum |
|
Temperature Minimum |
-30°C with optional chiller, -40°C optional |
|
Temperature Maximum |
180°C |
|
Temperature Sensor |
100 Ω Platinum RTD |
|
Maximum Heating Rate |
+12°C per minute at 37°C |
|
Maximum Cooling Rate |
-10°C per minute at 37°C |
|
Minimum Heating and Cooling Rate |
±0.01°C per minute |
|
Temperature Resolution |
0.01°C |
|
Temperature Stability |
±0.05°C |
|
Power supply |
Universal power input |
|
Software |
Windows software to record and export temperature-time data |
Optical Features
|

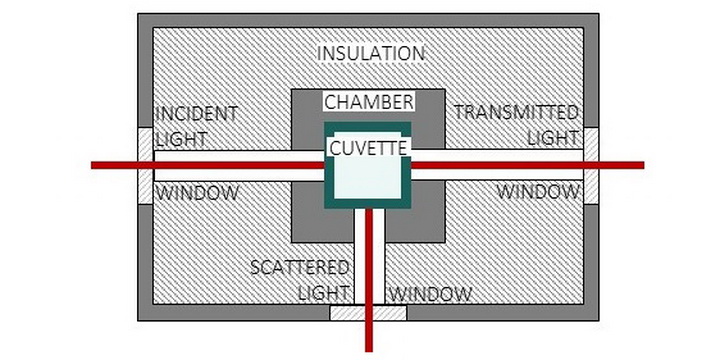

Optical access |
3 apertures for incident, transmitted, and 90° scattered light |
|---|---|
|
Optical windows |
Removable and exchangeable windows permit full-spectrum transparency |
|
Aperture for 90° scattered light |
Ø5 mm |
|
Transmission Aperture |
Ø5 mm |
Structural Features
|
Sample Chamber |
12.5 mm x 12.5 mm to fit standard cuvettes |
|---|---|
|
Sample Access |
Top quick-access flip cover |
|
Mounting |
vertical mounting |
|
Frame Dimensions |
75 mm x 68 mm x 50 mm |
|
Weight |
500 g / 750 g with cable |
