-190°C - 600°C with liquid nitrogen cooling option
-

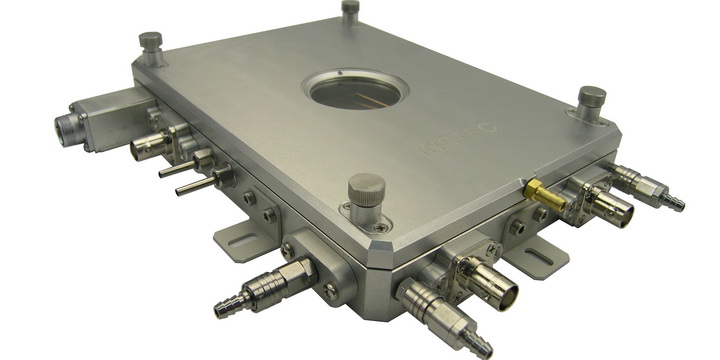

Compact design to fit on Raman, optical microscope, reflection FTIR microscope
-
28 mm × 30 mm sample area
-

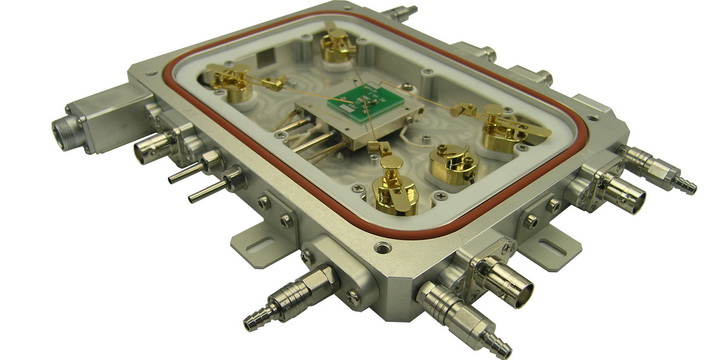

4 independent electrical probes with manual positioning
-
Optional triaxial connection for pA measurement
-
Optional extra feedthrough
THERMAL FEATURES
|
Temperature Control |
mK2000 with programmable precision LVDC PID method to minimize electrical noise |
|
Thermal Block |
Silver plate for superior thermal uniformity |
|
Temperature Minimum |
-190°C (with optional liquid N2 cooling) |
|
Temperature Maximum |
600°C |
|
Temperature Sensor |
100 Ω Platinum RTD |
|
Maximum Heating Rate |
+80°C per minute at 100°C |
|
Maximum Cooling Rate |
-50°C per minute at 100°C |
|
Minimum Heating and Cooling Rate |
±0.01°C per minute |
|
Temperature Resolution |
0.01°C |
|
Temperature Stability |
±0.05°C （＞ 25°C），±0.1°C （＜ 25°C） |
|
Power Supply |
Universal power input |
|
Software |
Windows software to record and export temperature-time data |
ELECTRICAL FEATURES
|
Electrical Probes |
DC electrical probe options in tungsten-rhenium, beryllium-copper, or other materials |
|
Probe Positioning |
Manual cantilever probes independently positionable to any point of the sample area before sealing chamber |
|
Connectors |
Coaxial, floating, or triaxial BNC connectors Optional extra feedthrough |
|
Sample Surface |
Grounded, floating, or triaxial options |
|
Non-magnetic Construction |
Optional construction with non-magnetic materials for magnetically sensitive samples |
OPTICAL FEATURES
|
Optical Access |
Optical access to sample via reflection |
|
Optical Windows |
Removable and exchangeable windows permit full-spectrum transparency |
|
Minimum Objective Working Distance |
8.5 mm |
|
Top Window |
38 mm diameter |
|
Top Viewing Angle |
±60.7° from normal |
|
Window Defrost |
Integrated external window defrost |
STRUCTURAL FEATURES
|
Sample Area |
28 mm x 30 mm |
|
Chamber Height |
6.3 mm |
|
Sample Access |
Quick-access cover with spring-loaded screws |
|
Atmosphere Control |
Gas purging capability to control humidity, condensation, and oxidation |
|
Frame Cooling |
Integrated frame cooling with optional chiller system |
|
Mounting |
Horizontal and vertical mounting capability |
|
Frame Dimensions |
180 mm x 130 mm x 26 mm |
|
Weight |
1500 g light-weight aluminum body |
