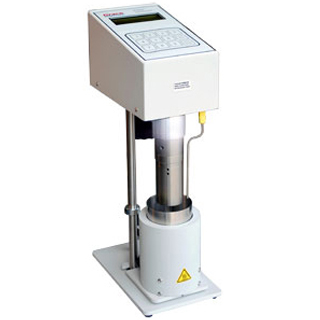

본 제품은 진정한 couette, coaxial cylinder 회전형 자동 점도계입니다.
Oilfield 처럼 가혹한 환경에서부터 실험실에서의 연구 까지 간편한 방식으로 다양한 fluid의 rheology 실험을 진행하는 데 편리합니다.
또한 M3600은 수년에 걸친 사용자 친화적인 interface를 구성해 오면서 trouble-free작동 및 최소의 유지를 추구하고 있습니다.
Calibration은 간단하고 자독적으로 이루어질 수 있으며, cleaning 역시 쉽게 가능합니다.
사용자 조건에 따라서 점도 측정의 결과는 stand-alone unit 또는 Microsoft? Windows™ PC 와 함께 전용 software인 M3600daq™ and M3600Frac™ 과 함께 측정이 가능합니다.
선택사항으로 Hastelloy C276 구성을 사용하면 acidizing fluids의 측정도 가능합니다.
- Height: 16.8 in.
- Width: 5 in.
- Depth: 8 in.
- Weight: 12 lbs
- U.S. Patent No.: 6,571,609
Two Operational Modes: Standalone or Integrated with PC
The M3600 Viscometer can be used as a standalone unit, enabling users to create test sequences and record test data without the use of external equipment. It can also be connected to a Microsoft Windows PC operating our custom software for advanced test operations, test results analysis, and to export test data in spreadsheet format.
Durable, Reliable, and Affordable Digital Power
The innovative design, rugged construction, versatility, and portability of the M3600 Viscometer make it equally at home in the field or in the laboratory.
Software Covers All Tests From General Viscosity to Specialty
The included M3600Frac software is designed for measuring fracturing fluids, and the included M3600DAQ is designed for general viscosity measurement and mud testing. The Grace Instrument M3600 Viscometer is a true Couette, coaxial cylinder, rotational viscometer. It is engineered to meet the various fluid rheology measuring needs of our customers, from on-site oilfield personnel doing single-speed tests in harsh environments to laboratory researchers doing advanced rheology testing.
The M3600 Viscometer incorporates a steel framework, robust electronics, and a user-friendly interface for years of trouble-free operation and minimal maintenance. Clean-up between tests is quick and easy. Calibration is automatically performed with the push of a button. Used as a standalone unit, or with a Microsoft Windows PC and the included M3600DAQ and M3600Frac software, the M3600 Viscometer provides versatile and affordable solutions to meet your needs.
- Sturdy, portable, and compact
- Can create test sequences and record test data without use of external equipment
- Exports test data in a spreadsheet format
- Includes LCD display with automatic keypad control
- Allows test flexibility
- Stores test data
- Low maintenance with repeatable results
- Available with an acid-proof option, which allows the user to test samples with high acid concentrations, including fluids with 30% HCl.
- All wetted materials are Hastelloy C276 construction.
- Carrying Case contains the M3600 Viscometer with attached rotor, data cable, three bobs, anti-climber, thermocouple and heater cup.
- Chiller cup is made from stainless steel and can be purchased separately.
Specification
| U.S. Patent No.: 6,571,609 |
| Dimensions: 16" height x 5" width x 8" depth |
| Weight: 12.5 lbs. (standard) or 14 lbs. (acid option) |
| Temperature Range: Ambient (20°F with chiller) to 212°F |
| Pressure: Atmospheric Pressure |
| Sample size: 35 - 480 mL (Depending on Bob/Cup/Sleeve Size and Type) |
| Resolution: 1 dyne/cm2 |
| Speed Range: 0.01 to 600 rpm continuous |
| Shear Rate Range: 0.0038 to 1021 sec-1 |
| Shear Stress Range: .02 to 3,500 dyne/cm2 |
| Viscosity Range: 0.1 to 100,000,000 Centipoise |
| Torque: 7 μN.m to 14 mN.m |
| Accuracy: ± 0.5% of torque span or better |
| Viscometer Voltage: 90 VAC to 240 VAC |
| Heater Cup Voltage: 120 VAC version and 240 VAC version |
| Computer Requirements: PC with MS Windows 9X/2000/XP/Vista/Win 7 |
