Merlin VR은 빠르고 간단한 점도 검사 (single-point check) 뿐만 아니라 복잡한 유변물성 시험을 할 수 있도록 고안된 디지털 회전형 점도계로서, Peltier 냉각/가열 방식을 이용한 온도제어장치가 내장된 제품입니다.
따라서 -10℃ ~ 120℃ 범위에서의 등온 및 승온 조절이 매우 편리하며, 넓은 회전 속도 및 torque 범위의 Merlin VR은 에멀젼 및 분산물(현탁액) 의 점도 뿐만 아니라 flow curve, yield stress를 측정하는 데 이상적이고, flow-viscosity curve를 수행하는 데 매우 유용합니다.

또한 quick connect / disconnect coupling은 spindle 교체를 one-touch 방식으로 진행할 수 있어 기존 spindle 교체의 불편함을 개선하였습니다.
- Temperature controller가 내장된 회전형 점도계 (등온 및 승온 조절)

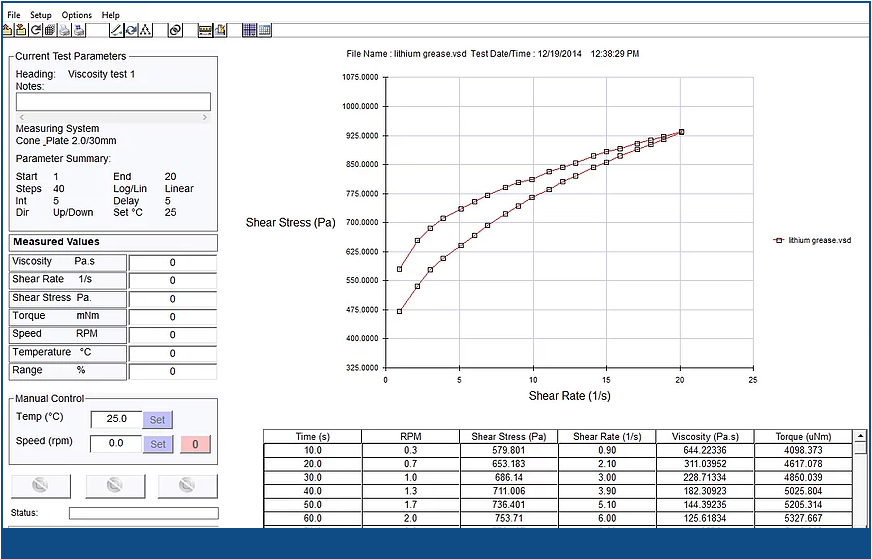

- WindowsTM "micra" research software
- 넓은 범위의 회전속도 (0.1 ~ 2000 rpm) 및 토크 범위 (0 ~ 20 mNm)
- Accurate adjustable gap mechanism
- 정교한 토크 측정
- Automatic user calibration
- Quick capture / Release tools
Specifictions
-
Viscosity Range 1 to 100M cP (mPa.s)**
-
Angular Velocity 0.01 to 200 rad/s
-
Shear Rate Range > 100,000 s-1**
-
Torque Range 0.001 to 20 mNm
-
Shear Stress Range > 20,000 Pa.**
-
Temperature Range -10 to +120 C*
-
User Selectable Speeds 20,000
-
Measuring Systems Included as Standard
Co-Axial Cylinders (Cup & Bob)
Parallel Plate
Cone & Plate
* Below 5°C requires external liquid cooling
Above 95°C requires external liquid heating
** Measuring system dependent
