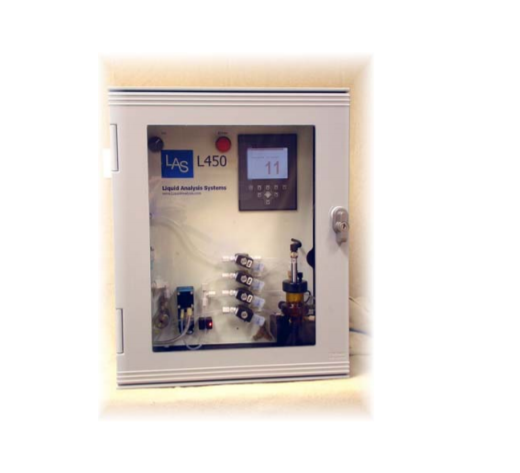

L450 NH3 Analyzer
Liquid Analysis Systems사의 L460 series 화학 분석기는 pH, ORP, ISE, 탁도계 및 다양한 센서를 사용하여 많은 수성 화학 종의 온라인 습식 화학 적정법에 따라 분석합니다. L460의 기능은 신뢰성 및 사용 편의성, 최소 운영 비용에 최적화되어 있습니다.
L450 Series Features
• Auto sample retrieval and preparation
• Result range and trend check
• Auto check of titrant, sample, and electrodes
Through its display and keypad, users can view process status and history, and modify analysis intervals and other configuration parameters. This series offers a variety of hardware options for stream selection, sample preparation, and sample/reagent delivery.
Series Options
• Multi-stream and multi-parameter analysis
• Standard or high precision dose pumps
• Grab sample port
• Auto sample filter back flush
• Ethernet networking and email messaging
• Outputs for recording, alarming, and/or replenishing
• Replenishment and dosing systems
L450 Ammonia Analyzer
The online L450 Ammonia analyzer measures ammonia in water using an ammonia gas sensing electrode. Alkaline pH adjustment is included to convert and release the ammonia for detection. Temperature correction is included for maximum accuracy. The electrode does not require manual calibration – automatic calibration with NH4Cl is included. No colorimetric indicator or pH electrode is required. For dependable process control, a changed analysis trend can be automatically retested prior to posting or alarming. For sample with particulate, a sample strainer with automatic backflush is offered. Sample conditioning systems are offered to meet many various requirements.
L450NH3 has configuration of Base model with two low-maintenance dose pumps for alkali and calibration standard, one sample/waste pump, single stream inlet, 4-20 mA output. Automatic temperature correction, automatic ammonia sensor calibration, reagent empty alarms.
Options
DI Digital input for remote control of analyses or replenishment
EB Ethernet server for remote monitoring via web browser
GS Auto grab sample with sipper tube inlet.
MS Multi-stream sampling
SB Sample inlet strainer with auto backflush.
Specifications
| Method | Raise pH by addition of NaOH to release ammonia gas. Stabilize and read concentration with selective ion sensor. |
| Ranges |
User settable within 0 to 17000 ppm |
| Cycle time | 5 minutes, typical. Additional for high precision analysis, test replication, process range > 1:20, or stream switching. |
| Reagent consumption | Less than 100 µl/test |
| Power required | 100/240 VAC or 24 VDC |
| Sample streams | Standard:1 Optional: up to 8 |
| Sample conditions | 0 to 80 psig, less than 50 µm particulate, 10 to 70 °C. Other ranges require sample preparation. |
| Sample preparation options | Filtration, pressure reduction, temperature adjustment, volatile amines correction, metals chelation. |
| Sample connection | ¼” NPT |
| Waste | ¼” NPT. ½“ tube adapter provided. |
| Leak | 3 /8” tube connection to drain |
| Enclosure | 22”Hx18”Wx10”D (55x46x26cm), wall mount, NEMA 4X/IP66 |
| Display/Touchscreen | 3” x 2.2”, LCD with backlight |
| Outputs |
Standard: 4-20 mA process value, maintenance alarm relay. |
| Ambient limits | 5 to 40°C. 5 to 95% humidity, non-condensing. |
Specifications are subject to review of sample conditions.
