H91 Hall Effect Measurement System
-
Complete Hall-effect measurment system
-
Options for temperature-controlled test cells
-
Features Lakeshore M91 Fasthall controller
-
0.5T permanent or electromagnets
INSTEC offers a range of products designed for Hall effect measurements and semiconductor characterization. The Hall effect is an electromagnetic phenomena that is very useful for measuring the electrical properties of semiconductor materials.
By applying a magnetic field to a sample carrying a known excitation current, a force is applied to the moving charge carriers. The charge carriers are displaced, resulting in a potential difference (Hall voltage) between two opposite sides of the sample which can be measured. From this Hall voltage, and a few other measurable properties of the sample, important semiconductor characteristics can be determined such as carrier concentration, carrier mobility, and dopant type. Instec's -PMH series of non-magnetic Hall effect thermal stages and plates are uniquely suited for high-precision thermal characterization of semiconductor materials via the Hall effect method.
Pair a HCP-621G-PMH thermal stage with our H91 Hall Effect Measurement System to execute fully automated characterization experiments.

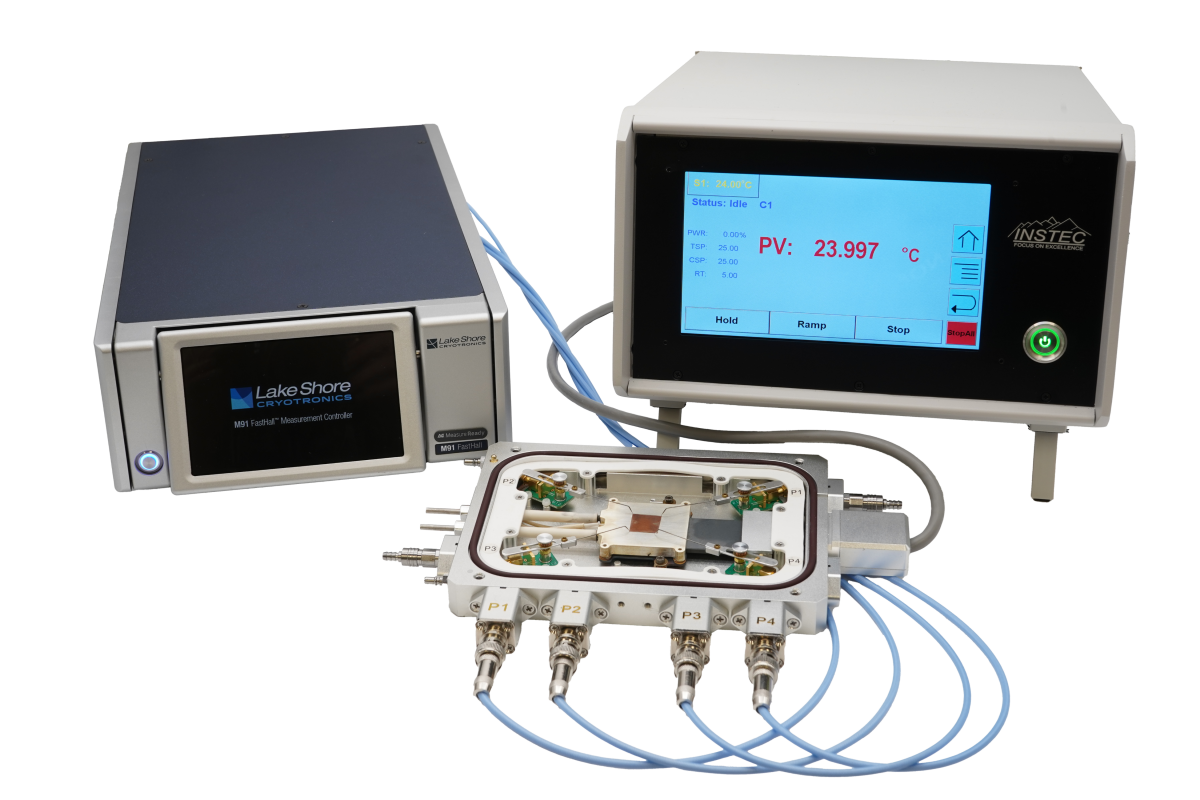

H91 Hall Effect Measurement System DESCRIPTION
For applications requiring electrical device or material characterization, Instec is proud to offer our modular H91 Hall Effect Measurement System. The H91 system is a combination of a temperature and environmentally controlled test cell from Instec, and the powerful M91 FastHall controller from Lakeshore. Synchronize electrical measurements with temperature control to study temperature dependent phenomena via Lakeshore’s MeasureLINK Software. Choose from a number of temperature control options, accessories, and magnetic field options to optimize system performance for any sample or application.
For added convenience, Lakeshore offers a plugin to interface the Instec mK2000B Temperature controller with the MeasureLINK software suite, making synchronizing temperature control with characterization measurments easier than ever.

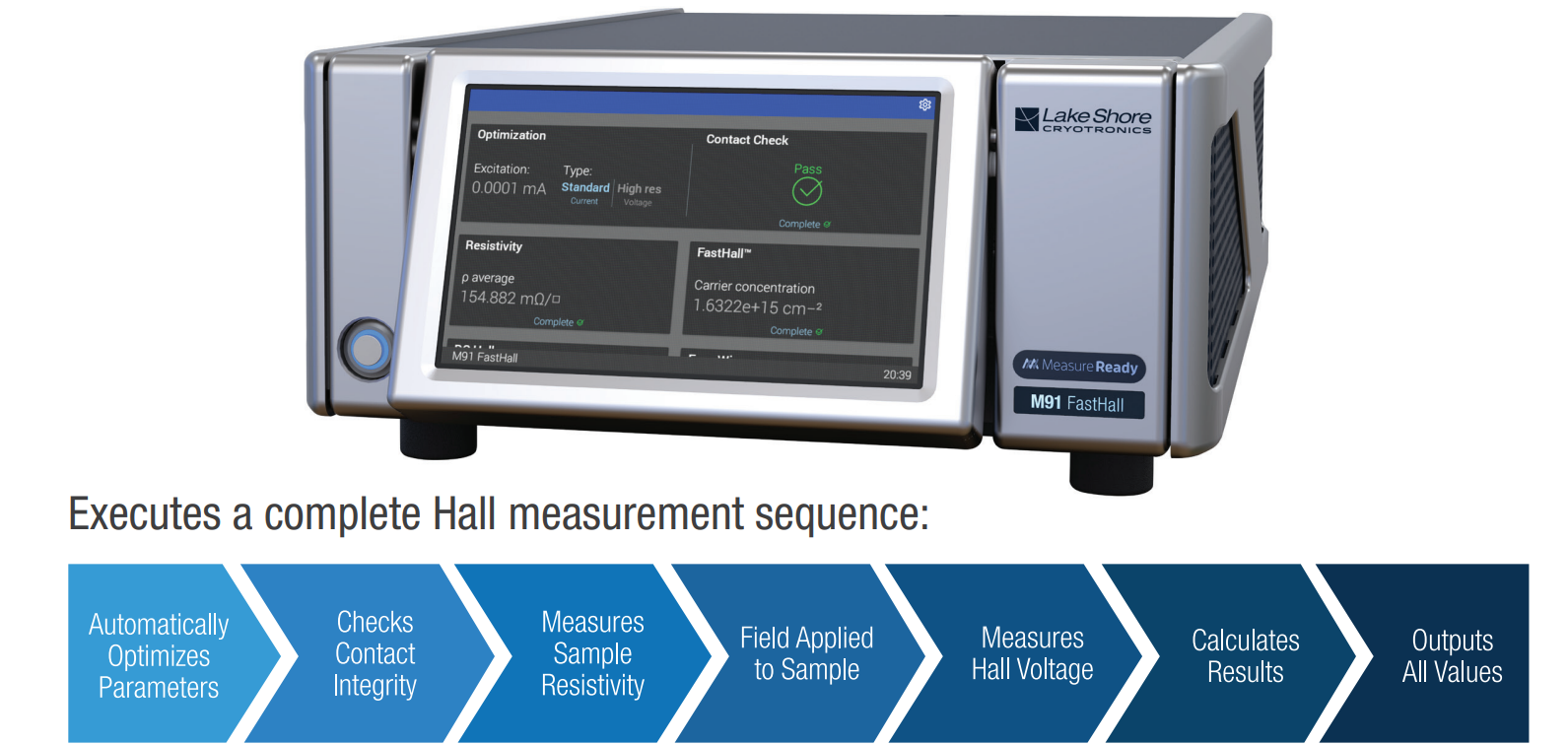

Lakeshore M91 FastHall Measurement Controller
The MeasureReady® M91 is an immensely powerful and versatile all-in-one Hall Effect measurement system. With automated measurement optimization, fast measurement speeds, and easy to use interface, the M91 makes analyzing samples under 4-point or Hall Bar incredibly simple. It makes for a comprehensive Hall measurement setup when paired with the Instec H91 Hall Effect Measurement System.
An all-in-one Hall analysis system, the M91 Fast Hall controller can be used with any magnet system and adds state of the art Hall measurement capabilities to any lab. The unique and powerful software and computation of the M91 removes the need for polarity switching of magnets and enables incredibly fast and accurate measurement even for low mobility samples.
It combines the features of a switching matrix, data collection software, nanovoltmeter, current source, contact evaluator, and Hall analysis software in one easy to use touchscreen unit. It can be used with permament magnets, electromagnets, superconducting magnets, and has measurement capabilities down to 10-3 cm2/Vs
Electrical Specifications M91
|
Hall Voltage Resolution |
1µV |
|---|---|
|
Noise |
0.1 µV (RMS) |
|
Resistance Range |
10mΩ to 10MΩ, up to 200GΩ with optional upgrade |
|
Hall Mobility |
10-3 to 106 cm2/V s, automatically calculated by software |
|
Connectors |
Triaxial BNC |
|
Measurement Loops |
Up to 3 Sourcing and 3 Measurement Ports |
|
Typical measurement time |
A few seconds |
|
Power Requirement |
100V to 240V (universal) |
Operational Specifications M91
|
Size |
216 mm × 87 mm × 369 mm (8.5 in × 3.4 in × 14.5 in), half rack |
|---|---|
|
Weight |
3.2kg |
|
Certification |
CE Mark |
|
Warm-up Time |
30 Minutes |
|
Power Consumption |
35W Maximum |
Example Test Materials M91
|
Solar cells |
OPVs, a:Si, µc-Si, CdTe, CuInGaSe |
|---|---|
|
Organic electronics |
OTFTs, Pentacene, Chalcogenides, OLEDs |
|
Transparent conducting oxides |
InSnO (ITO), ZnO, GaZnO, InGaZnO (IGZO) |
|
III-V semiconductors |
InP, InSb, InAs, GaN, GaP, GaSb, AIN based devices, high electron mobility transistors (HEMTs) and heterojunction bipolar transistors |
|
II-VI semiconductors |
CdS, CdSe, ZnS, ZnSe, ZnTe, HgCdTe |
|
Elemental semiconductors |
Ge, Si on insulator devices (SOI), SiC, doped diamond SiGe based devices: HBTs and FETs |
|
Transition-metal Di-chalcogenides (TMDC) |
WS2, WSe2, MoS2, HfS2 |
|
Other conducting materials |
Metal oxides, Organic and Inorganic conductors |
And More...
For more information, read our full H91 Hall Effect Measurement System.pdf, or contact info@yeonjin.com to speak with one of our sales engineers.
