ASTM C496 Compression Fixture Cylindrical Concrete | GC496
PRODUCT INFORMATION
| Model# | GC496 |
|---|

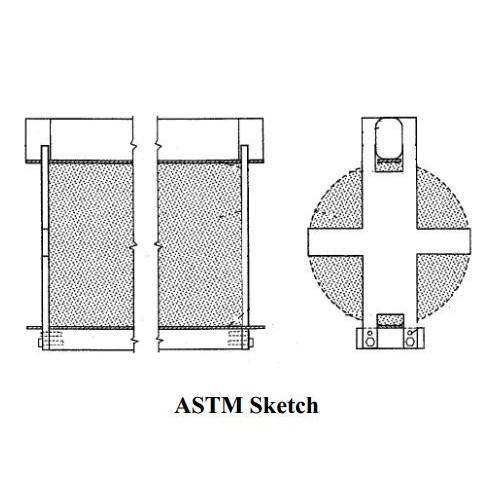

This fixture is specifically designed for determining the split strength of cylindrical concrete following the test practices of ASTM C496. The fixture has a bearing plate that transmits the load from the test machine to the test specimen. ASTM defines specific tolerances for the bearing plate. The bearing plate is mounted with a jig that holds the concrete test specimen and the loading plate. Reference: ASTM Standard C496, 2004, Standard Test Method for Splitting Strength of Cylindrical Concrete Specimens, Drawing is copyright ASTM International, West Conshohocken, PA, 2007.
| Product Literature |
|---|
-
