GB5-250 High Temperature Fracture Mechanics Clevis Grips
PRODUCT INFORMATION
| Model# | GB5-250 |
|---|---|
| Diameter | 12.7 mm (0.5 in) 25.4 mm (1 in) |
| Temperature | Ambient to 1000°C (1832°F) |
| Specimen Width | 12.7 mm (0.5 in) 25.4 mm (1 in) |
GB5-250 High Temperature Fracture Mechanics Clevis Grips are designed for static and dynamic testing of compact tension specimen in accordance with relevant ASTM standard practices. The fracture toughness tests such as KIc, JIc and CTOD can be conducted using these clevises in accordance with ASTM E399, E647 and E1820. To meet the test requirements for specimens of varying width and thickness, a series of clevis grips with varying sizes are available. Models are available that will accommodate temperature ranges from -70 °C to 1000 °C (-94°F to 1832°F).
FEATURES & BENEFITS

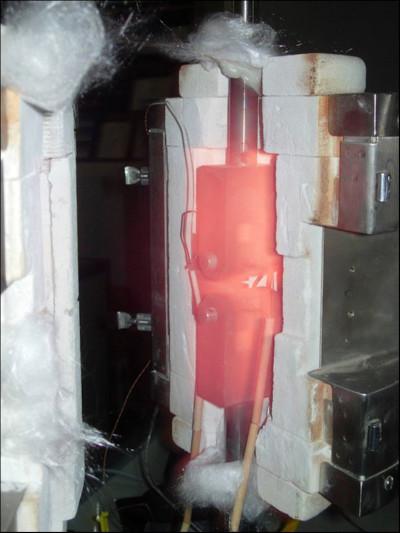

- High temperature fracture mechanics clevis grips designed for use inside elevated temperature furnaces
- Static and fatigue crack growth tests using compact tension specimens per ASTM standards.
- Test capabilities include fatigue crack growth tests and fracture toughness tests such as KIc, JIc and CTOD. Includes grip, two pins and two spring retainers.
