Sample Specific Tensile Holder
ASTM D7269 Tensile Fixture for Aramid Yarns | GD7269-13
PRODUCT INFORMATION
| Model# | GD7269-13 |
|---|

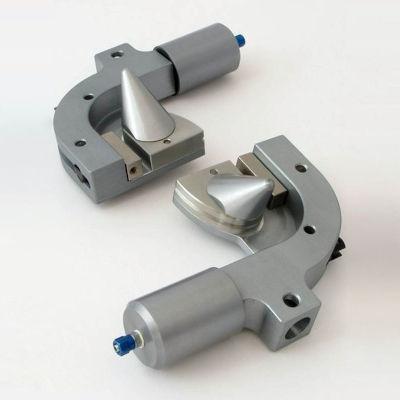

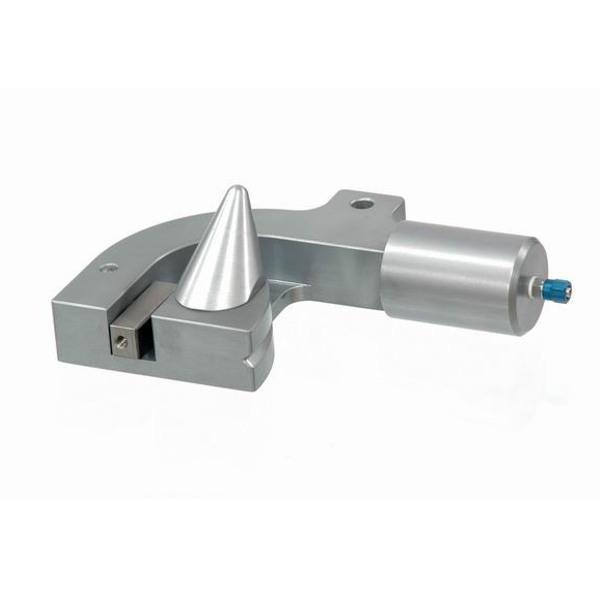

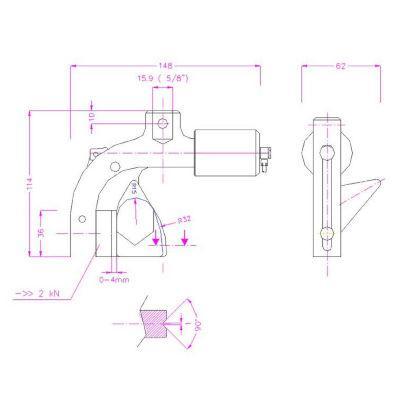

The GD7269-13 fixture meets the requirements of ASTM D7269 for tensile testing of aramid yarns. Yarn samples are fixed by pneumatic grips with up to a 2 kN gripping force. The 180 degree wrap angle allows the use of the GD7269-13 for yarns of linear density up to 10000 decitex (9000 denier). Reference ASTM Standard D 7269, 2011, Standard Test Methods for Tensile Testing of Aramid Yarns, ASTM International, West Conshohocken, PA, 2011.
-
