| Model# | G135 |
|---|---|
| Force | Two tensile ratings 90 kN (20,000 lbf) Clamp Force and 30 kN (6,800 lbf) |
| Clamp Force | Two ratings - 180 kN (40,000 lbf) Clamp Force and 60 kN (13,500 lbf) |

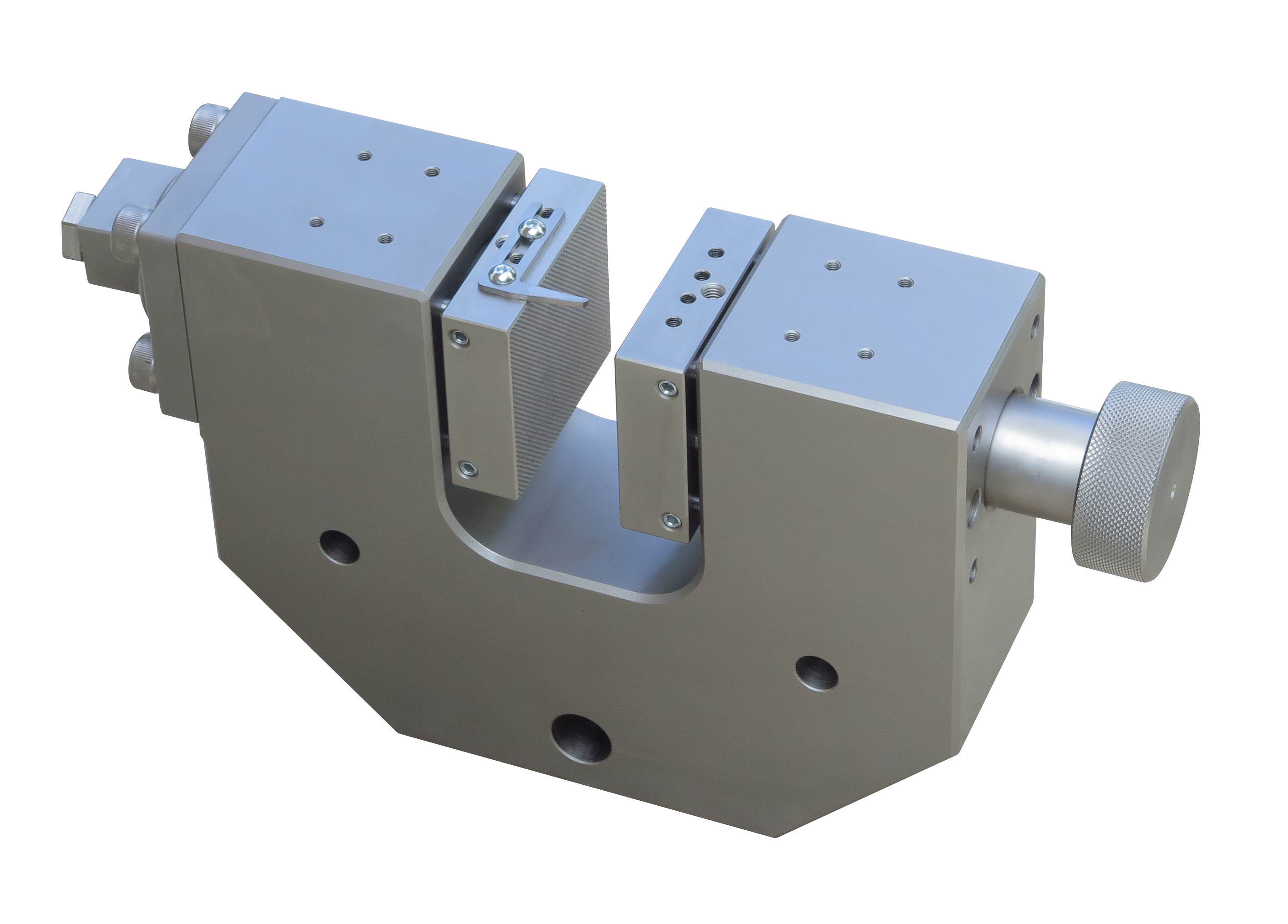

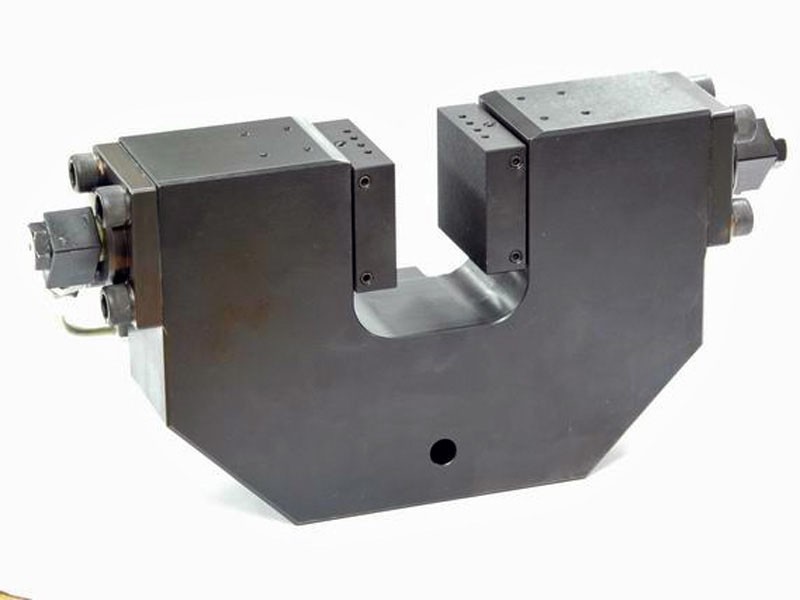

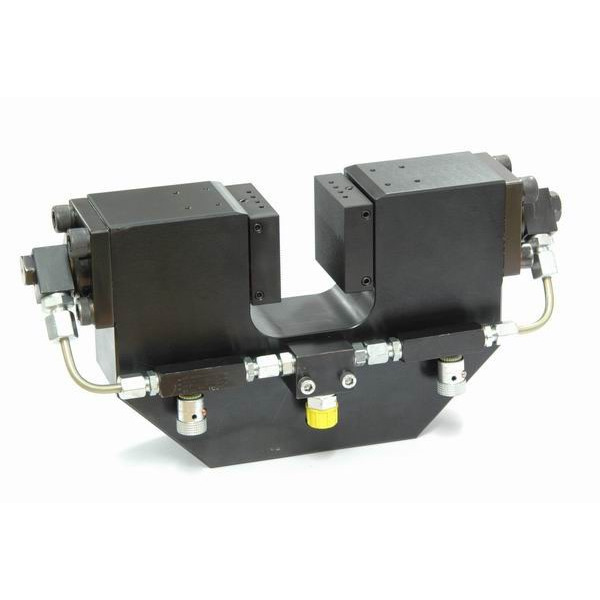

G135 Series hydraulic vise action grips are designed for tensile testing of materials that require relatively high test forces. The grips are suitable for testing metals and high strength non metallic samples They are ideal for testing flat, hexagonal, and round test forms. Quick clamping and release of the samples is possible. The grips are available in both single cylinder and dual cylinder models. In the case of the single cylinder model a manually adjustable knob sets the position of one side of the jaws. Dual cylinders ensure the grips close symmetrically around the test sample axis.

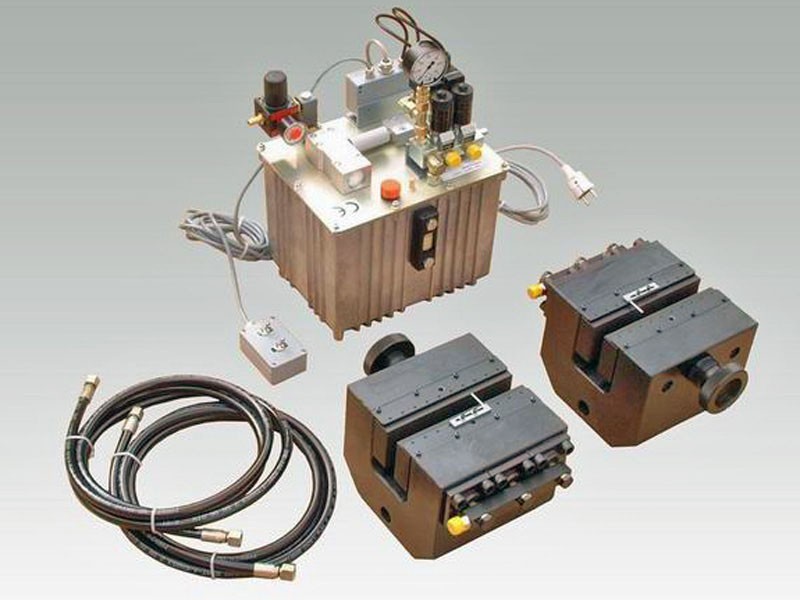

Hydraulic operation enables reliable, consistent and adjustable clamp loading which is important in the case of relatively fragile samples. The grips feature a side opening design for simple and quick specimen insertion. A variety of wedge jaw faces are available for different specimens. To operate the grips a power pack with high pressure hydraulic output is needed for opening, closing, and setting the clamp forces.
