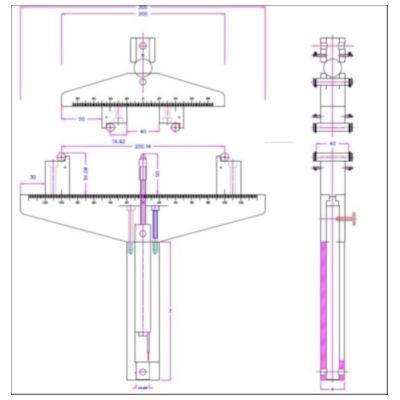

ASTM C1341 Four Point Bend Fixture | GC1341-238
| Model# | GC1341-238 |
|---|---|
| Force | 5 kN (1,124 lbf) |
| Maximum Span | Lower span adjustable to a ~260 mm max Upper span adjustable to a ~180 mm max |
| Roller | 10.16 mm roller diameter by 40 mm wide |
FEATURES & BENEFITS
- Tests fiber reinforced ceramic composites in accordance with ASTM C1341
- Max force capacity 5kN
- 3 point and 4 point loading configuration
- Bracketing for a 19 mm diameter LVDT (LVDT not included)
- 15.9 mm (5/8 in) female cup adapters with a hole for a 8 mm diameter cross pin
- Tests for flexural strength and strain, fracture strength and strain, modulus of elasticity, and stress-strain curves
