Wedge Action Grips with Moving Bodies and Stationary Jaws
| Model# | G527 |
|---|---|
| Force | Four models from 20 kN to 250 kN ( 4,500 lbf to 55,000 lbf) |
| Thickness | Models vary from 16 mm to 30 mm (0.63 in to 1.2 in) |
| Clamp type | Rotating arm |

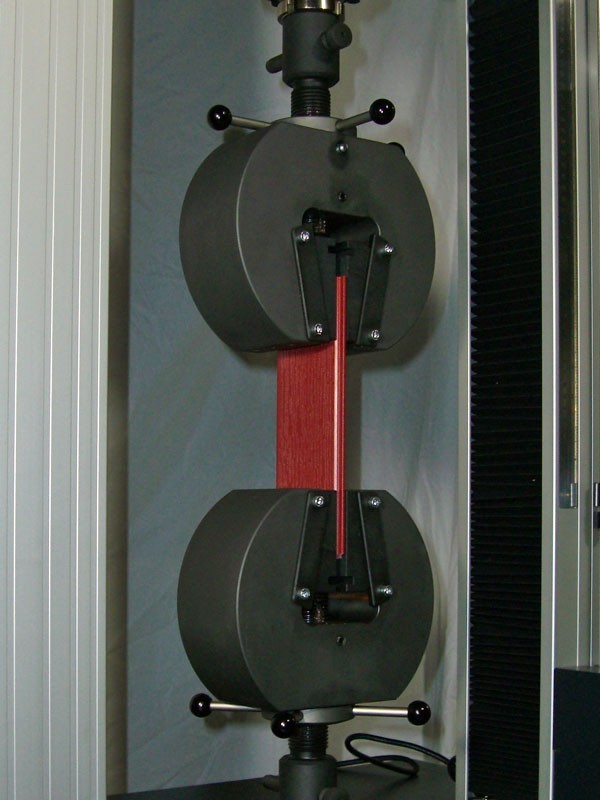

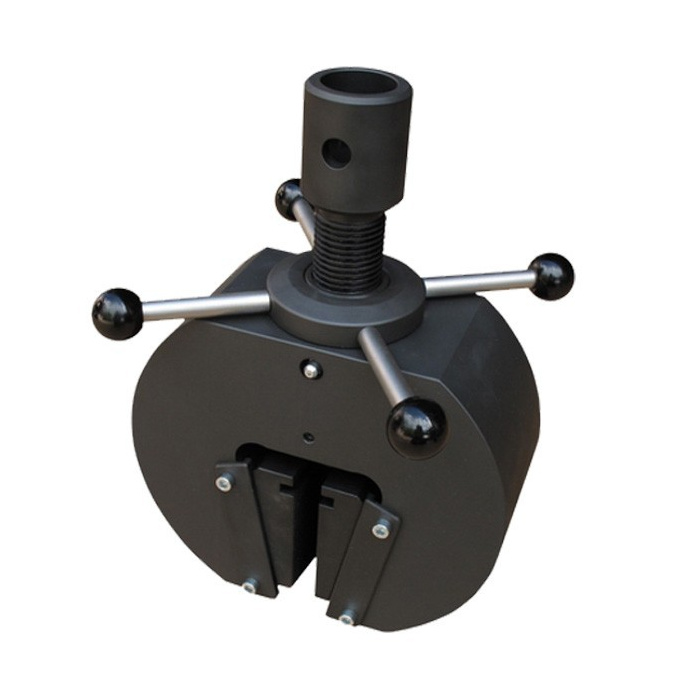

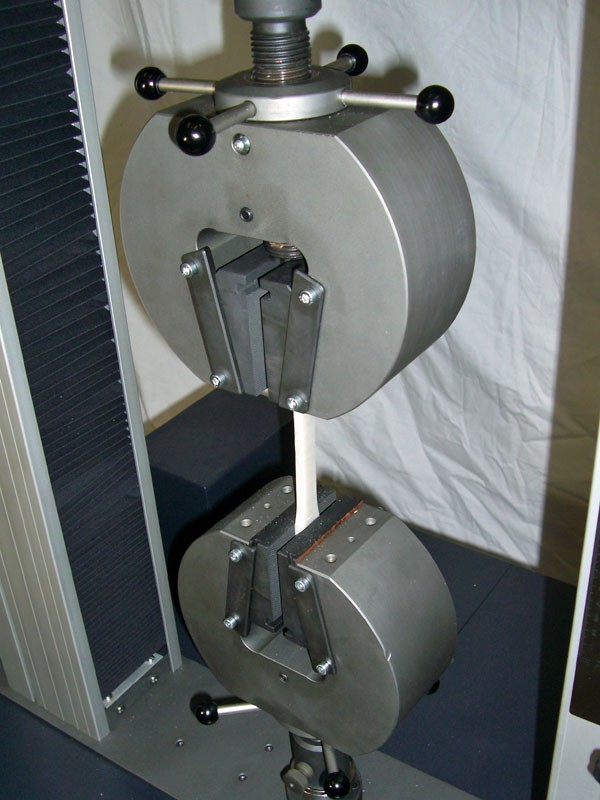

G527 Mechanical wedge action grips feature grip bodies that move vertically to open and close the wedge jaws, which remain fixed in position on the test sample. As the grip bodies move, the jaws are held in position on the sample and open and close laterally. The dual acting wedge jaws also move simultaneously relative to the grip centerline, ensuring correct specimen alignment, removing bending strains that invalidate test results. G527 grips test round and flat samples and save time with a side opening that enables quick and easy sample insertion.
Note: Optional adapters or mechanical connections available for all test machines.
