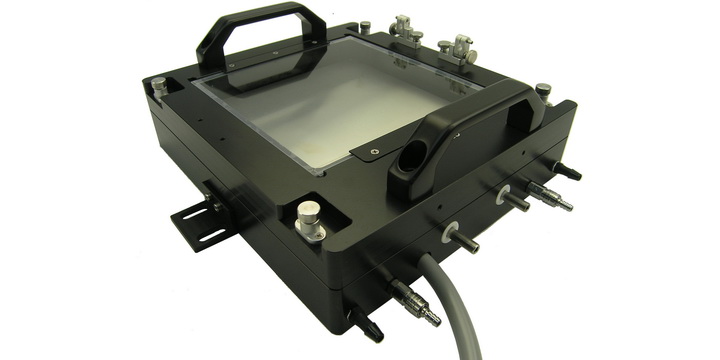

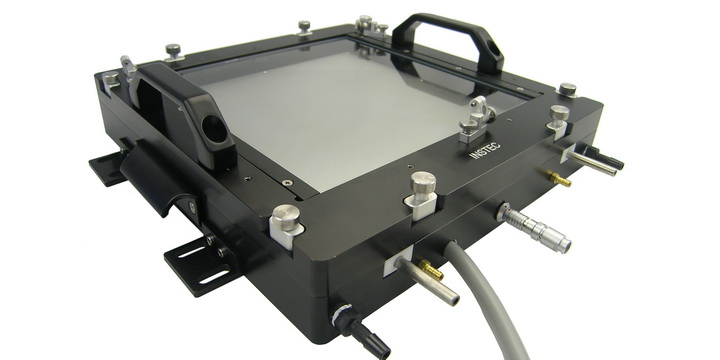

Benchtop workhorses for all-purpose laboratory thermal control
-
Precision temperature control -190°C ~ 600°C depending on model
-
Standard square plates from 50 mm to 300 mm
-
Frames with sealed covers for gas purging (vacuum optional )
-
Removable handles and electrical feedthrough options
Features
- Perform experiments under programmable precision temperature control from -190°C ~ 600°C depending on model
- Standard square plates from 50 mm to 300 mm, with custom sizes available
- Bench mounting capability

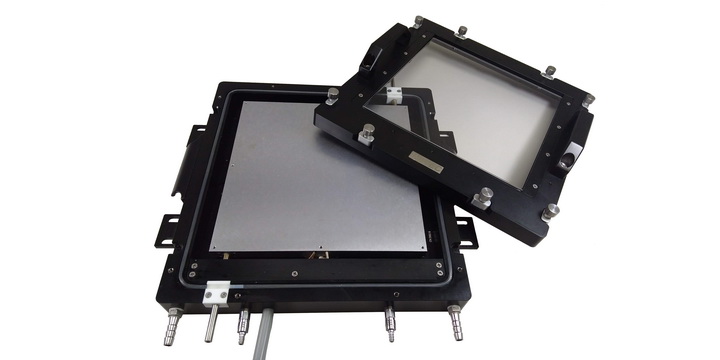

- Frames with sealed covers for gas purging (vacuum optional)
- Optional electrical feedthroughs
Specifications
|
Surface Options |
Silver, clear anodized aluminum, or nickel plated copper, denpending on models |
|---|---|
|
Surface Electrical Options |
grounded (standard), floating (optional) |
|
Atmosphere Control |
Sealed chamber with gas purging capability to control humidity, condensation, and oxidation vacuum optional |
|
Frame Cooling |
Integrated frame cooling with optional chiller system |
|
Mounting |
Benchtop mounting capability |
|
Temperature Control |
|
|
Temperature Sensor |
100 Ω Platinum RTD |
|
Temperature Resolution |
0.01°C |
|
Temperature Stability |
±0.05°C (above 25°C) and ±0.1°C (below 25°C) |
|
Temperature Uniformity |
±0.1°C per cm (above 25°C) ±0.3°C per cm (below 25°C) |
|
Power Supply |
115 V or 230 V depending on region |
|
Software |
Windows software to record and export temperature-time data |
Models
|
Model |
Sample Area Square |
Frame Dimensions |
Chamber Height |
Weight |
Temperature Range |
Maximum Rate at 100°C |
||
|---|---|---|---|---|---|---|---|---|
|
MIN |
MAX |
Heating |
Cooling |
|||||
|
HCP402/602SG |
50mm |
|
|
|
-190°C |
400/600°C |
||
|
HCP 204/304/404 SG |
100 mm |
220.3 mm x 175.3 mm x 59 mm |
12.9 mm |
3.5 kg |
-120°C |
200/300/400°C |
+60°C / min |
-25°C / min |
|
HCP 206/306/406SG |
155 mm |
235 mm x 210 mm x 56 mm |
16.3 mm |
4.5 kg |
-100°C |
200/300/400°C |
+25°C / min |
-10°C / min |
|
HCP 208/308/408SG |
206 mm |
290.5 mm x 277 mm x 50 mm |
11.4 mm |
8.0 g |
-80°C |
200/300/400°C |
+20°C / min |
-4°C / min |
|
HCP 20C/30C/40CSG |
300 mm |
409 mm x 394 mm x 60 mm |
12.4 mm |
15.0 g |
-80°C |
200/300/400°C |
+15°C / min |
-2°C / min |
