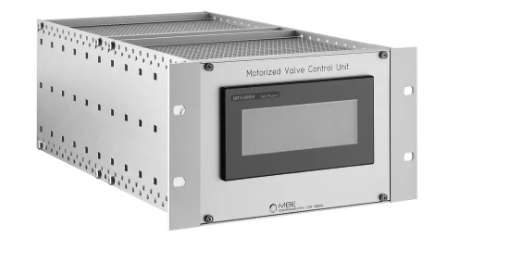

Motorized Valve Control Unit MVCU
The Motorized Valve Control Unit (MVCU) provides the power and control for the stepper motor drive which moves the mechanical valve mechanism inside a valved effusion cell.
Introduction
The Motorized Valve Control Unit (MVCU) provides the power and control for the stepper motor drive which moves the mechanical valve mechanism inside a valved effusion cell.
Manual and remote control of the valve position as well as an automated calibration of the zero position (valve closed) is available by the touch screen monitor on the front panel of the MVCU controller.
In “Remote Mode” the valve position can be set by an external voltage (0…10 V DC) after calibration of the MVCU.
A special Valved Shutter operation mode (VS) allows acting the MVCU similar to a simple shutter unit. Therefore the valve is opened to a position, selected by the user and closed by an external digital signal from a shutter control unit (SCU) or process control computer.
Technical Data
|
Mains input |
100-230 V AC / 50…60 Hz |
|
Fuse |
250 V / 2 A lazy |
|
Dimensions |
3 HU (135 mm) x ½ 19” (240 mm) |
|
Stepper motor |
24 V DC, max. 1.8 A, max. torque: 0.5 Nm |
|
Remote analog input |
0...10 V; 12 bit AD converter, input resistance 200 kΩ |
|
Valve position |
0-9.99 mm; accuracy: 0.01 mm |
|
Programmable positions |
3 + valved-shutter-position |
