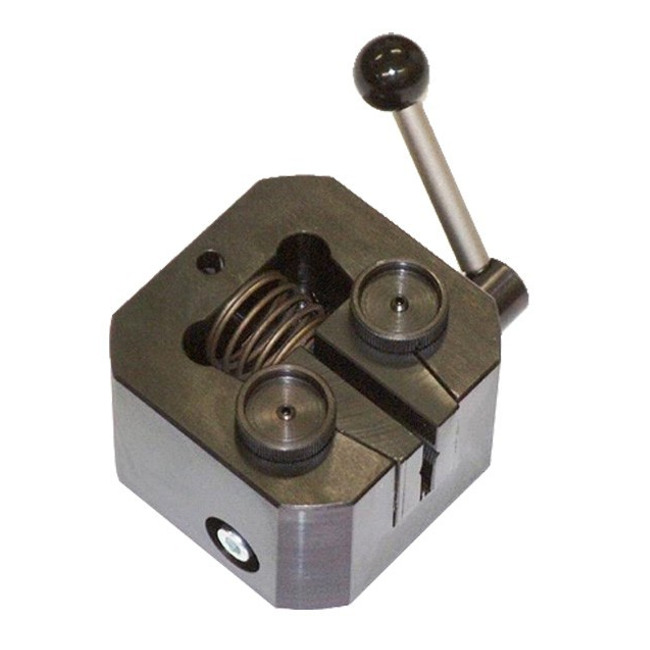

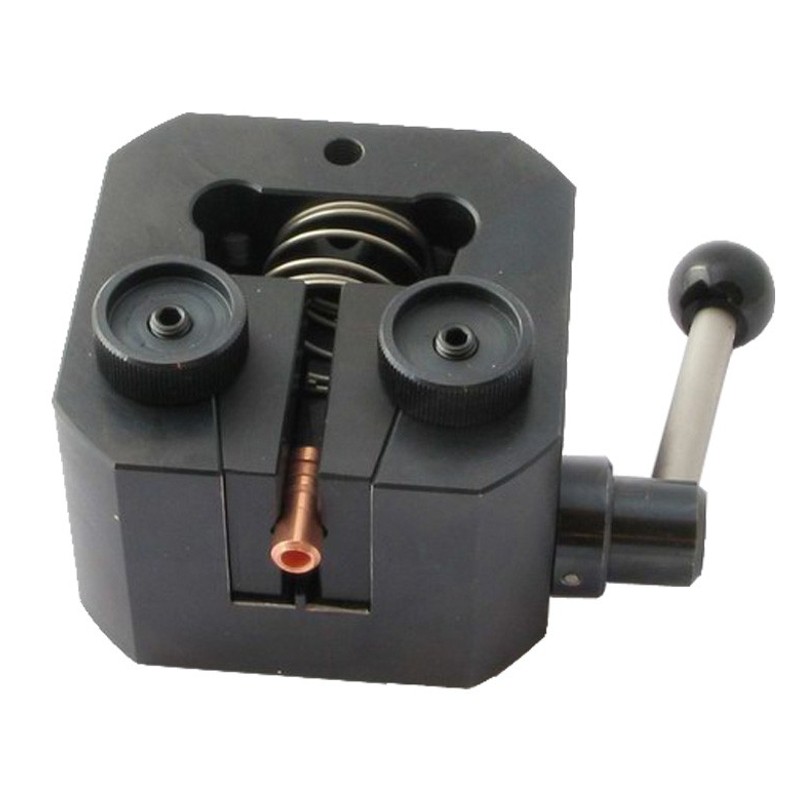

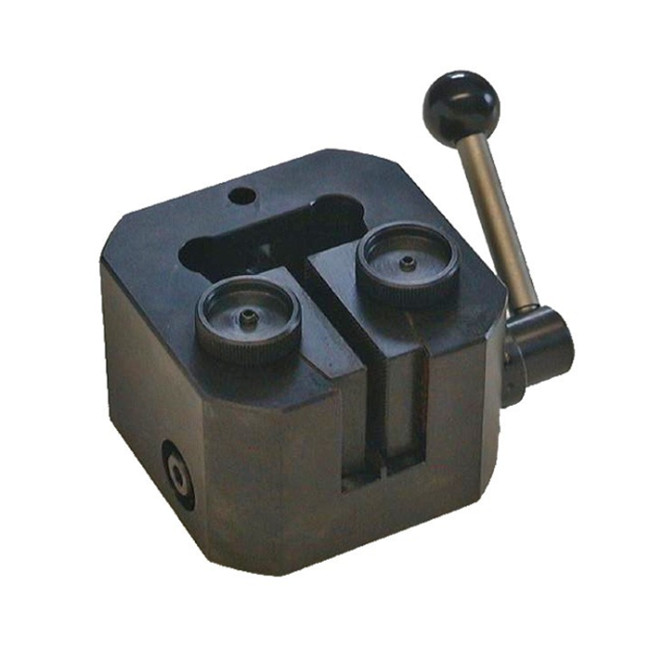

Wedge Action Grips with Stationary Bodies and Moving Jaws
| Model# | G243 |
|---|---|
| Force | 20 kN (4,500 lbf) and 50 kN (11,250 lbf) |
| Thickness | 16 mm (0.63 in) |
| Temperature | Max 280C and Min -70C |
| Sample Width | 35 mm (1.4 in) |
| Clamp type | Lever arm |
G243 mechanical wedge action grips use wedged jaw inserts that slide on angled interior walls of the grip body. As the jaws are closed by a lever arm, serrated jaws clamp the test specimen with.
Note: Optional adapters or mechanical connections available for all test machines.
FEATURES & BENEFITS
- Available in high and low temperature version.
- Multi purpose, self-tightening grips.
- Suitable for metal or plastic specimens (with medium strength) etc.
- Easy to use: The grips feature a lever arm for quick loading and releasing of the samples.
- The wedge-shaped design of the jaws causes the clamping force to increase, as tension is applied during the test.The wedge-shaped design of the jaws causes the clamping force to increase, as tension is applied during the test.
