UV 광경화 시스템 (UV Curing Systems)

Spot curing, Flood curing, LED curing, Conveyor curing

SkyBeam - LED Spot Curing System, LED경화기

SkyBeam은 벤치 탑 및 자동화된 생산 라인에서 널리 사용되는 고강도 냉각-구동 LED 스폿 라이트 경화 시스템입니다. 본 시스템에는 수명이 긴 라이트 가이드가 포함되어 있으며 다양한 렌즈 타입으로 최대 4 개의 독립적 라이트 가이드를 지원하며, 노출 시간 조절과 foot pedal 활용이 용이합니다. 본 모델은 전원 공급 장치가 내장되어 있으며, 무게 1.5kg, 크기 140mm x 92mm x 160mm의 소형 휴대형입니다.



  • Uvitron spot system은 작은 면적의 고강도 UV 광경화에 최적화되었습니다.
  • 3 mm ~ 15 mm의 UV 광경화 면적
  • Intensity: 1,000 ~ 13,000 mW/cm2
  • 수명이 긴  4 파장의 Flexible Light Guide 사용
  • 네 개의 독립적 Irradiation Channel
  • Cool Operation, Built-In Power Supply, Security Key Switch



Product Summary

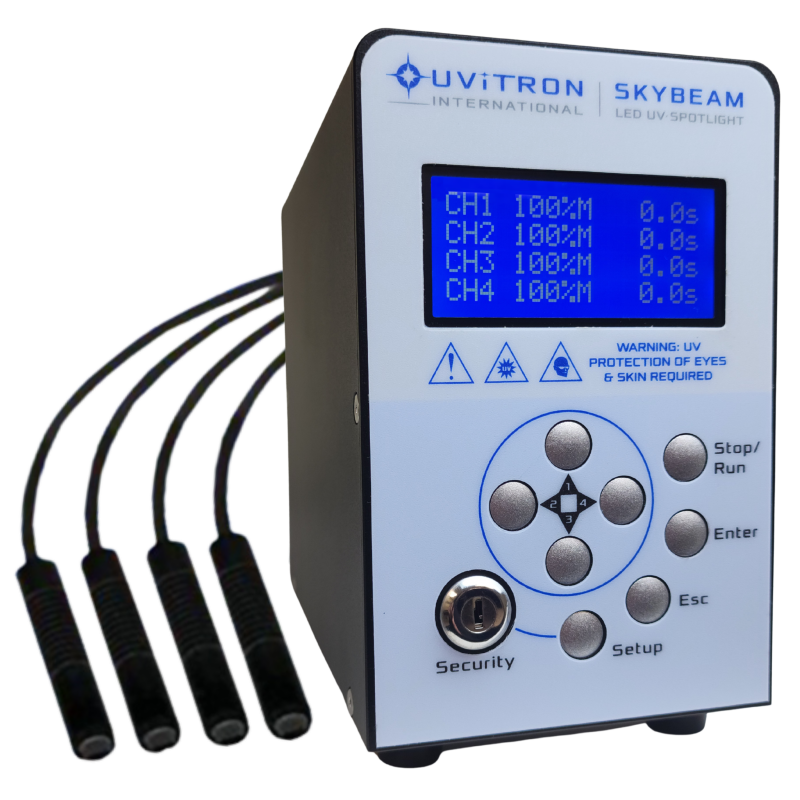

The SkyBeam is a high-intensity cool-operation LED spot light curing system widely used in benchtop and automated production lines. The system includes a long-life light guide, supports up to 4 independently operating light guides with a variety of lens types, and features easy to use exposure time controls and foot pedal activation. The unit is compact and portable, with a built-in power supply, weight of 1.5 kg, and dimensions of 140 mm x 92 mm x 160 mm.



4 Irradiation Channels

The system features 4 independent irradiation channels, each with 0-999.9 second exposure timer and 10 to 100% power adjustment range. Each channel’s UV light spot size can be adjusted by replacing the optical lens at the end of its light guide, with the service life of each irradiation channel independently recorded.



Built-in Power Supply

The built-in power supply and compact design ensures the unit occupies minimal space, and eliminates the need to manage an external power adapter.



External Control Interface

The system can be remotely monitored and controlled using isolated logic signals available at the rear panel terminals. The digital logic functions allow high-speed control of the SkyBeam for applications requiring a direct interface with machine controllers or PLCs. Control signals include LEDs on/off and a safety interlock that disables LEDs for operator protection. Monitoring signals include system ready, LEDs on and system alarm. An RS232 port is also provided for serial communication with PCs and PLCs.



Long-Life Flexible Light Guides

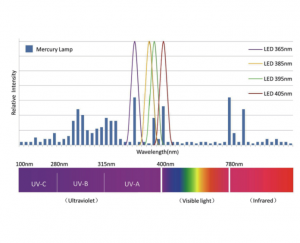

The cable of the UV LED light guides is a 2 meter flexible robot cable, tested to over 10 million bending cycles. 4 wavelengths are available, including 365, 385, 395 and 405 nm.

                      Convection cooled light quide
                           Fan  cooled light quide



Cool Operation

Both convection cooling and fan cooling UV LED light guides are offered. The fan cooling type has better heat dissipation and is suggested for continuous operation. The UV LED light guide has a built-in temperature sensor that monitors the temperature and prevents the light guide from overheating. The aluminum controller housing is fully sealed to prevent contamination and ensure long system life.



Security Key Switch

The system comes with a security key switch that prevents operators from making unauthorized changes to the approved running parameters.



Specifications

System Type

LED Spot

Part #

UV3979

Input Voltage

100 ~ 240VAC ±10%

Input Current (Max)

1.0 Amps @120V, 0.5 Amps @ 240V

Irradiance

From 1000 - 13,000 mW/cm2 UVA (lens dependent)

Curing Area

From 3 mm to 15mm spot size (lens dependent)

Size (H x W x D), Weight

140 mm x 92 mm x 160 mm, 1.5 kg



System Part Numbers

Part No. Item Details Ordering
UV3979-365F SkyBeam (365 nm), LED Spot Curing System (100-240VAC) Comes with 1 365nm fan-type light guide (UV4053-365F) which includes 2 lenses (UV4030-12MM, UV4030-6MM). Includes UV/IR protective glasses, foot pedal, line cord, and manual

Request Quote

UV3979-385F SkyBeam (385 nm), LED Spot Curing System (100-240VAC) Comes with 1 385nm fan-type light guide (UV4053-385F) which includes 2 lenses (UV3982-12MM, UV3982-6MM). Includes UV/IR protective glasses, foot pedal, line cord, and manual

Request Quote

UV3979-395F SkyBeam (395 nm), LED Spot Curing System (100-240VAC) Comes with 1 395nm fan-type light guide (UV4053-395F) which includes 2 lenses (UV3982-12MM, UV3982-6MM). Includes UV/IR protective glasses, foot pedal, line cord, and manual

Request Quote

UV3979-405F SkyBeam (405 nm), LED Spot Curing System (100-240VAC) Comes with 1 405nm fan-type light guide (UV4053-405F) which includes 2 lenses (UV3982-12MM, UV3982-6MM). Includes UV/IR protective glasses, foot pedal, line cord, and manual

Request Quote



Light Guide and Lens Part Numbers

Part No. Item Details
UV4053-365F* 365nm LED Light Guide, Fan Cooled Includes 6mm and 12mm lens, length=82mm
UV4053-385F 385nm LED Light Guide, Fan Cooled Includes 6mm and 12mm lens, length=82mm
UV4053-395F 395nm LED Light Guide, Fan Cooled Includes 6mm and 12mm lens, length=82mm
UV4053-405F 405nm LED Light Guide, Fan Cooled Includes 6mm and 12mm lens, length=82mm
UV4054-365C 365nm LED Light Guide, Convection Cooled Includes 6mm and 12mm lens, length=85mm
UV4054-385C 385nm LED Light Guide, Convection Cooled Includes 6mm and 12mm lens, length=85mm
UV4054-395C 395nm LED Light Guide, Convection Cooled Includes 6mm and 12mm lens, length=85mm
UV4054-405C 405nm LED Light Guide, Convection Cooled Includes 6mm and 12mm lens, length=85mm
Lenses
UV4030-12MM* Optical Lens 12mm, 365nm 1040 mW/cm2 @25mm, used with 365nm light guide
UV4030-6MM* Optical Lens 6mm, 365nm 5980 mW/cm2 @17mm, used with 365nm light guide
UV4030-3MM Optical Lens 3mm, 365nm 13,000 mW/cm2 @10mm, used with 365nm light guide
UV3982-12MM Optical Lens 12mm, 385nm / 395nm / 405nm 1040 mW/cm2 @25mm, used with 385nm / 395nm / 405nm light guide
UV3982-6MM Optical Lens 6mm, 385nm / 395nm / 405nm 5980 mW/cm2 @17mm, used with 385nm / 395nm / 405nm light guide
UV3982-3MM Optical Lens 3mm, 385nm / 395nm / 405nm 13,000 mW/cm2 @10mm, used with 385nm / 395nm / 405nm light guide

* Standard items included with system (1 ea)
 Special order



Accessories Part Numbers

Part No. Item Details
UV4045 Foot Switch, Exposure Control With flying leads for attachment to controller terminal block
UV4046 Security Switch Replacement Keys Set of two
UV4047 Power cord AC Power Cord, 120V US Plug for SkyBeam
UV0496 UV/IR Protective Safety Glasses OTG (fit over prescription eyewear), 5.0 shade
UV2232 UV/IR Protective Safety Glasses Sport contour, 5.0 shade
UV1890 UV Protective Face Shield Lift-up face shield ideal for maximum UV/Visible light protection, w/ darker 6.0 shade
UV4011 SkyBeam Instruction Manual Usage and maintenance info for SkyBeam system
SkyBeam - LED Spot Curing System
SkyBeam Brochure

The SkyBeam is a high-intensity cool-operation LED spot light curing system widely used in benchtop and automated production lines. The system includes a long-life light guide, supports up to 4 independently operating light guides with a variety of lens types, and features easy to use exposure time controls and foot pedal activation. The unit is compact and portable, with a built-in power supply, weight of 1.5 kg, and dimensions of 140 mm x 92 mm x 160 mm.
