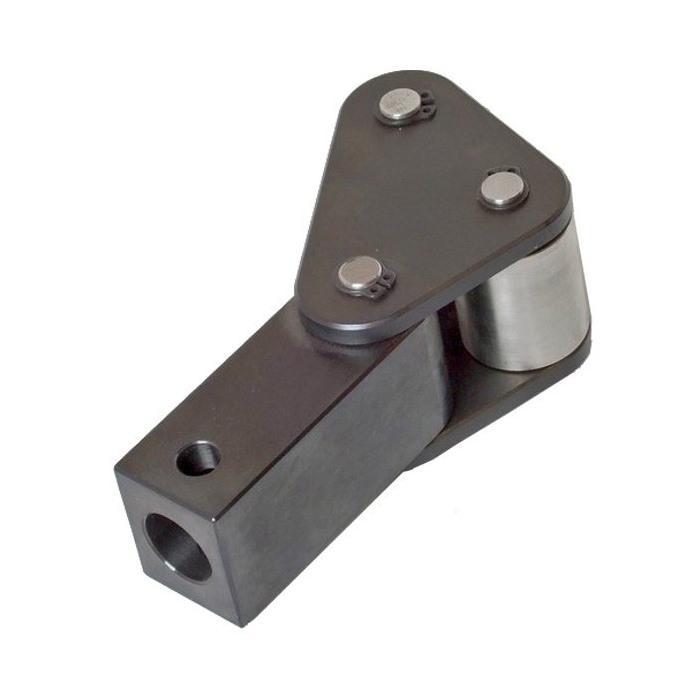

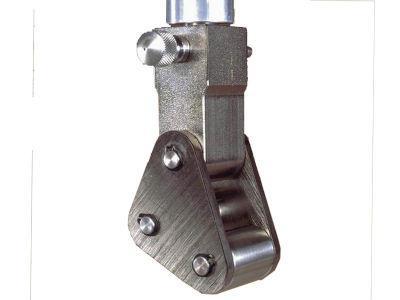

ASTM D3167 Roller Drum Peel Test Fixture | GD3167-105
PRODUCT INFORMATION
| Model# | GD3167-105 |
|---|---|
| Force | 10 kN (2,250 lbf) |
| Diameter | 25 mm (1 in) |
| Sample Width | 25.4 mm (1 in) |
ASTM D3167 specifies test fixtures for the roller peel resistance of adhesives and GD3167-105 fixture meets these requirements This standard gives detailed dimensions of a suitable roller drum peel test fixture for use with testing adhesives. As specified in the standard, the grips are of the self aligning type and the grips engage the outer 1 inch of the flexible adhesive when the load is applied.
Reference: ASTM Standard D3167, 2003, D3167 Standard Test Method for Floating Roller Peel Resistance of Adhesives, ASTM International, West Conshohocken, PA, 2007
FEATURES & BENEFITS
- Designed to meet the ASTM D3167 requirements
- Tests at a 65 degree angle over a 25 mm (1 in) diameter roller
- 25.4 mm (1 in) wide rollers
