ASTM C67 3-Point Fracture Brick Structural Clay Tile | GC67-849
PRODUCT INFORMATION
| Model# | GC67-849 |
|---|---|
| Maximum Force | 2,225 kN (500,000 lbf) |

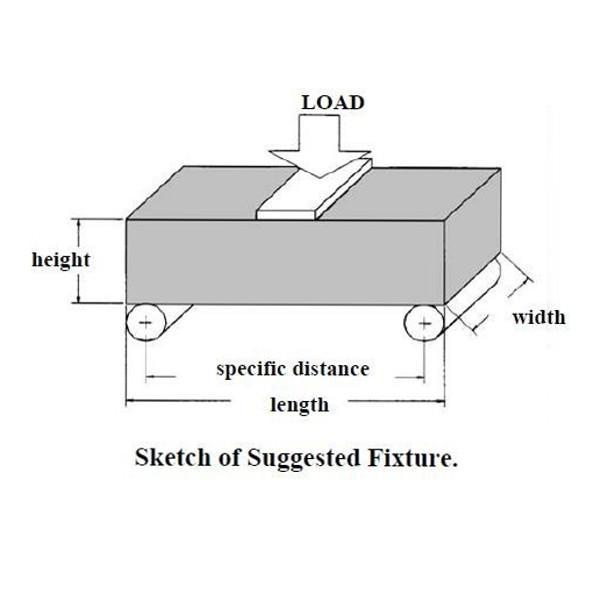

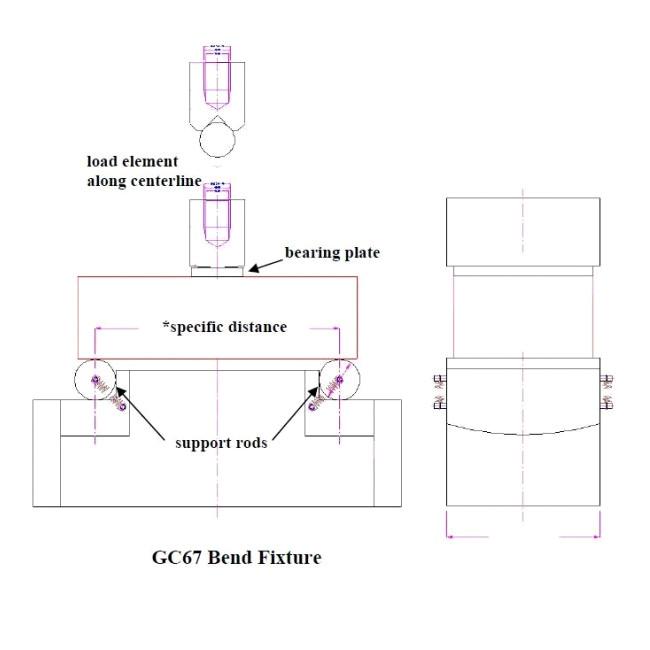

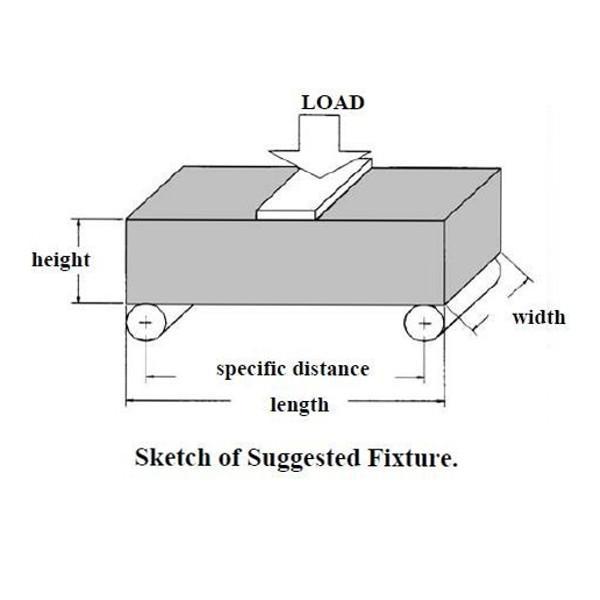

For the break load test of brick and clay tile, ASTM has outlined specific requirements for the test specimen, and test fixture. The load is applied at the to the test specimen at the midpoint through a steel bearing plate of specific thickness, length and length. Reference ASTM Standard C67, 2009, Standard Test Method for Sampling and Testing Brick and Structural Clay Tile, Drawing is copyright ASTM International, West Conshohocken, PA, 2009
| Product Literature |
|---|
-
