- Enable rapid cooling of sample area to near 1°C
 - All chiller models can be used for frame cooling
 - C300W, C500W, and C610W require the FVC9 coolant flow control system for sample cooling using the mK2000 out2 port
 - C300W, C500W, and C610W require the FVC1 coolant flow control system for frame cooling of thermoelectric stages using the mK2000 out3 port

FEATURES
• Recirculating chillers with ice water compartments provide rapid cooling of sample area to near 1°C (depending on model)
• All chiller models can be used for frame cooling
• C300W, C500W, and C610W require the FVC9 coolant flow control system for sample cooling using the mK2000 out2 port
• C300W, C500W, and C610W require the FVC1 coolant flow control system for frame cooling of thermoelectric stages using the mK2000 out3 port

SPECIFICATIONS
|
			 Chiller  |

			 Dimensions  |

			 Weight  |

			 Temperature Range  |

|

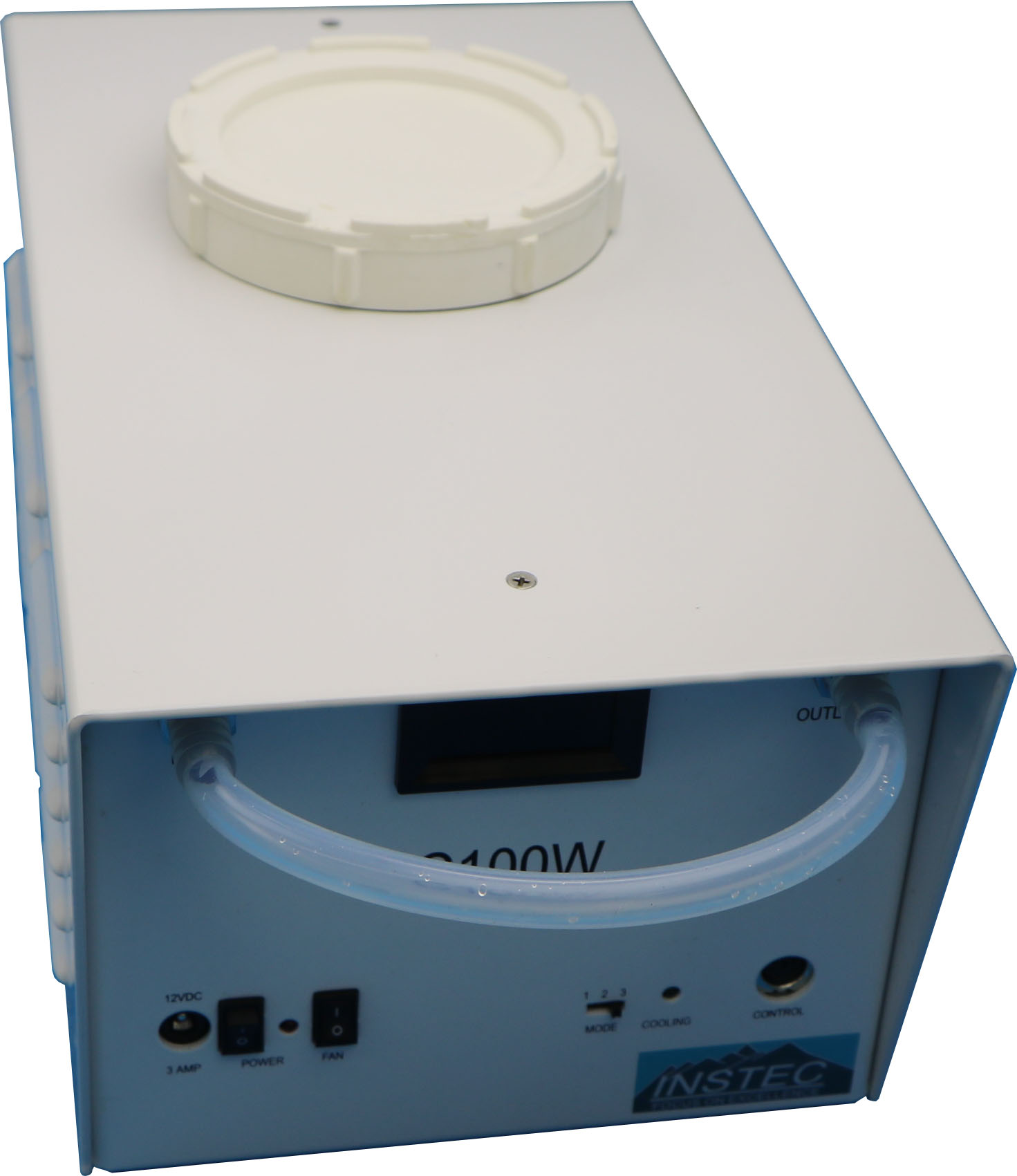

			 C100W  |

			 30cm x 18cm x 17cm  |

			 3.7 kg  |

			 20°C - 50°C  |

|

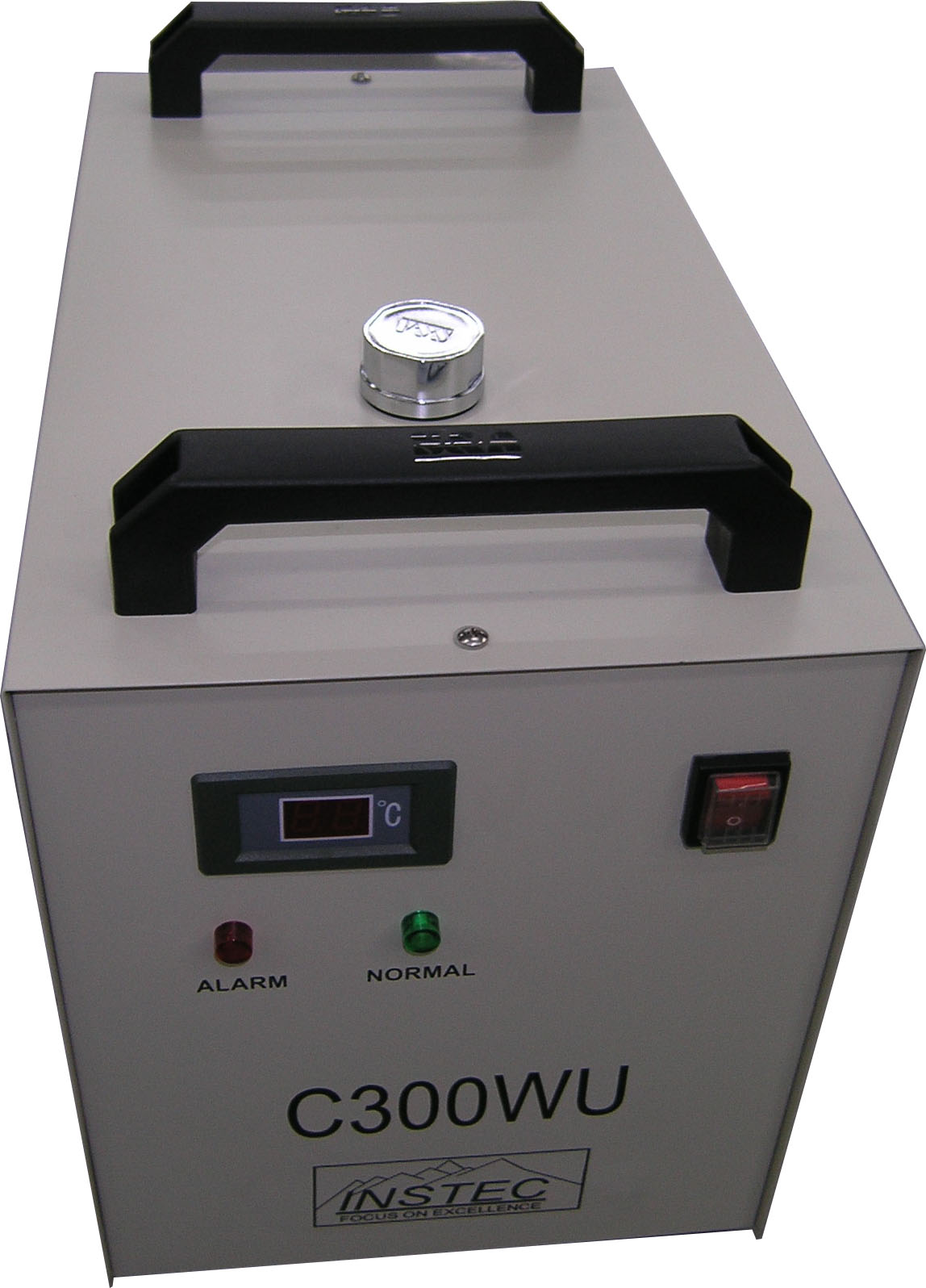

			 C300W/C300W-R  |

			 47cm x 37cm x 27cm  |

			 14.5 kg  |

			 20°C - 50°C  |

|

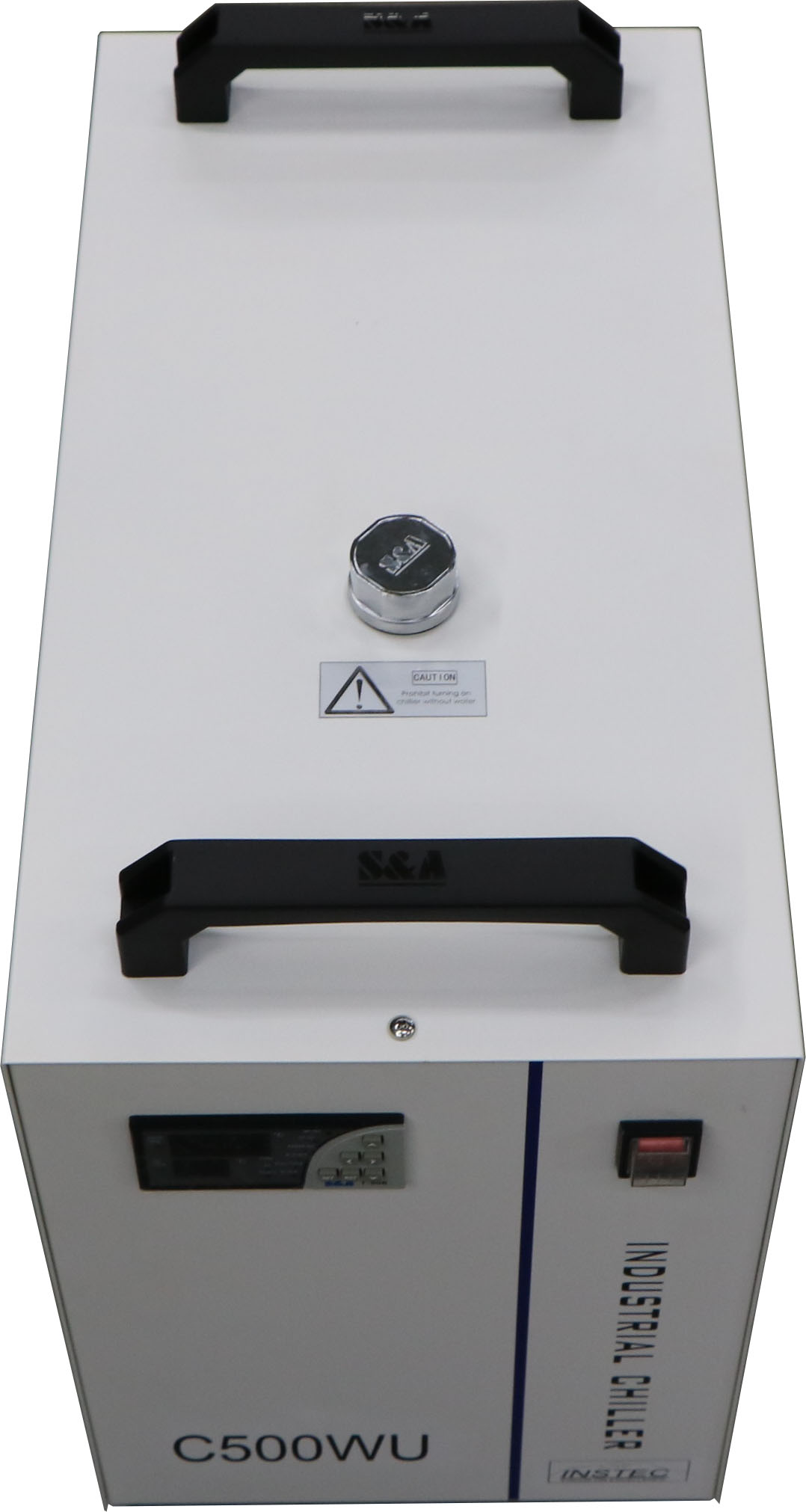

			 C500W/C500W-R  |

			 56cm x 46cm x 28cm  |

			 37 kg  |

			 1°C - 50°C  |

|
			 C610W  |

			 89cm x 71cm x 48cm  |

			 65 kg  |

			 1°C - 50°C  |
