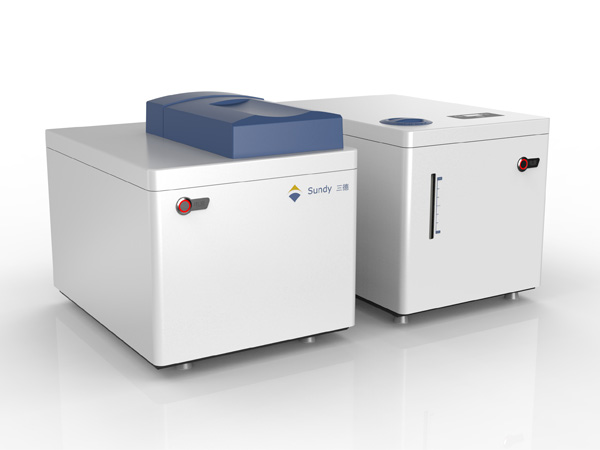

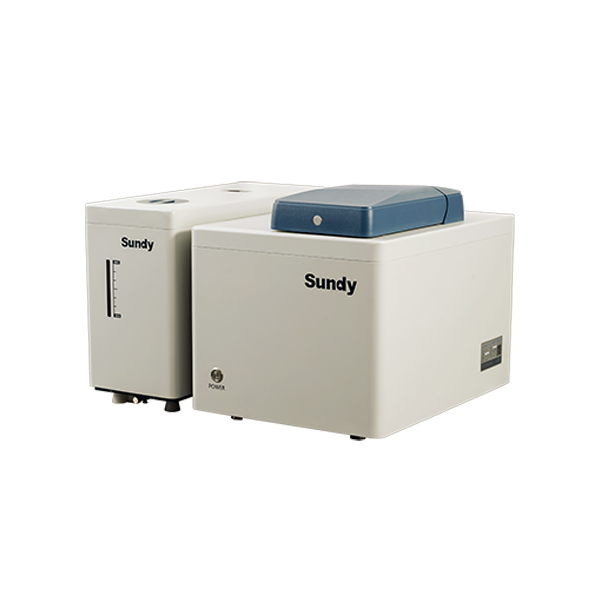

Isoperibol Bomb Calorimeter를 이용한 식품 칼로리 측정분석 서비스


Good environment adaptability, precise, accurate and reliable test result.
  1. Helix tube multi-point isothermal technology, create a controllable and stable internal environment (consists of jacket and jacket lid, temperature difference <0.05℃), stop the interference of external environment ( such as air flow, temperature) to bucket, test result is reliable.
  2. With semiconductor temperature control technology for the jacket, both cooling and heating can be realized. There is no need to fill cold water to decrease the water temperature to ensure independent jacket and bucket water system. After the test, bucket water automatically flow back into water tank, no affection between inlet and outlet of bucket water and jacket water. Jacket water temperature is stabilized.

Humanized design, high automation, fast test speed.
  1. Unique bucket water circle system, which can determine water volume for each testing automatically. New stainless steel oxygen bomb can be easily assembled and disassembled. High stirring efficiency, faster heat transfer of oxygen bomb, testing time is greatly reduced. Analysis time for each sample is less than 15 min.
  2. Built-in intelligent water tank with heating and cooling function, water temperature can keep constant, test efficiency is higher.

Accurate and reliable test result.
  • All the data is reliable and objective without software correction.

Reasonable structure, reliable operation, safe and environment friendly
  1. With self-diagnostic function, malfunction can be detected accurately, easy to maintain.
  2. Unique crucible support design, convenient to use.

Both cotton wire and nickel wire available.
Strong data processing capability, statistics report and printing function. Capable of connecting with network and balance.

Specification :

Analysis Time

≤15min

Temperature Resolution

0.0001℃

Heat Capacity Precision

≤ 0.1%

Max Power

0.65kW

Jacket Type

Isoperibol

Heat Capacity Stability

≤0.2% within three months

Power Requirement

220V(-15%~10%), 50/60 Hz
